RS PRO CSM Isolated DC-DC Converter, 5V dc/ 200 mA 1 W, Surface, 95 °C Max Temp -40 °C Min Temp, 4-Pin SIP-4
- RS Stock No.:
- 285-3136
- Brand:
- RS PRO
Subtotal (1 unit)*
£3.85
(exc. VAT)
£4.62
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 439 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £3.85 |
*price indicative
- RS Stock No.:
- 285-3136
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Isolated DC-DC Converter | |
| Output Voltage 1 | 5V dc | |
| Output Current 1 | 200mA | |
| Mount Type | Surface | |
| MTBF | 13100000h | |
| Ripple and Noise | 100mV Pk-Pk | |
| Output Voltage Adjustment Range | 5 % | |
| Isolation Voltage | 1kV dc | |
| Number of Pins | 4 | |
| Maximum Output Power | 1W | |
| Package Type | SIP-4 | |
| Width | 6mm | |
| Length | 11.6mm | |
| Series | CSM | |
| Depth | 10.2mm | |
| Standards/Approvals | UL6681, EMCEN5505504, IEC6681 | |
| Weight | 1.4g | |
| Efficiency | 80% | |
| Maximum Operating Temperature | 95°C | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Isolated DC-DC Converter | ||
Output Voltage 1 5V dc | ||
Output Current 1 200mA | ||
Mount Type Surface | ||
MTBF 13100000h | ||
Ripple and Noise 100mV Pk-Pk | ||
Output Voltage Adjustment Range 5 % | ||
Isolation Voltage 1kV dc | ||
Number of Pins 4 | ||
Maximum Output Power 1W | ||
Package Type SIP-4 | ||
Width 6mm | ||
Length 11.6mm | ||
Series CSM | ||
Depth 10.2mm | ||
Standards/Approvals UL6681, EMCEN5505504, IEC6681 | ||
Weight 1.4g | ||
Efficiency 80% | ||
Maximum Operating Temperature 95°C | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- TW

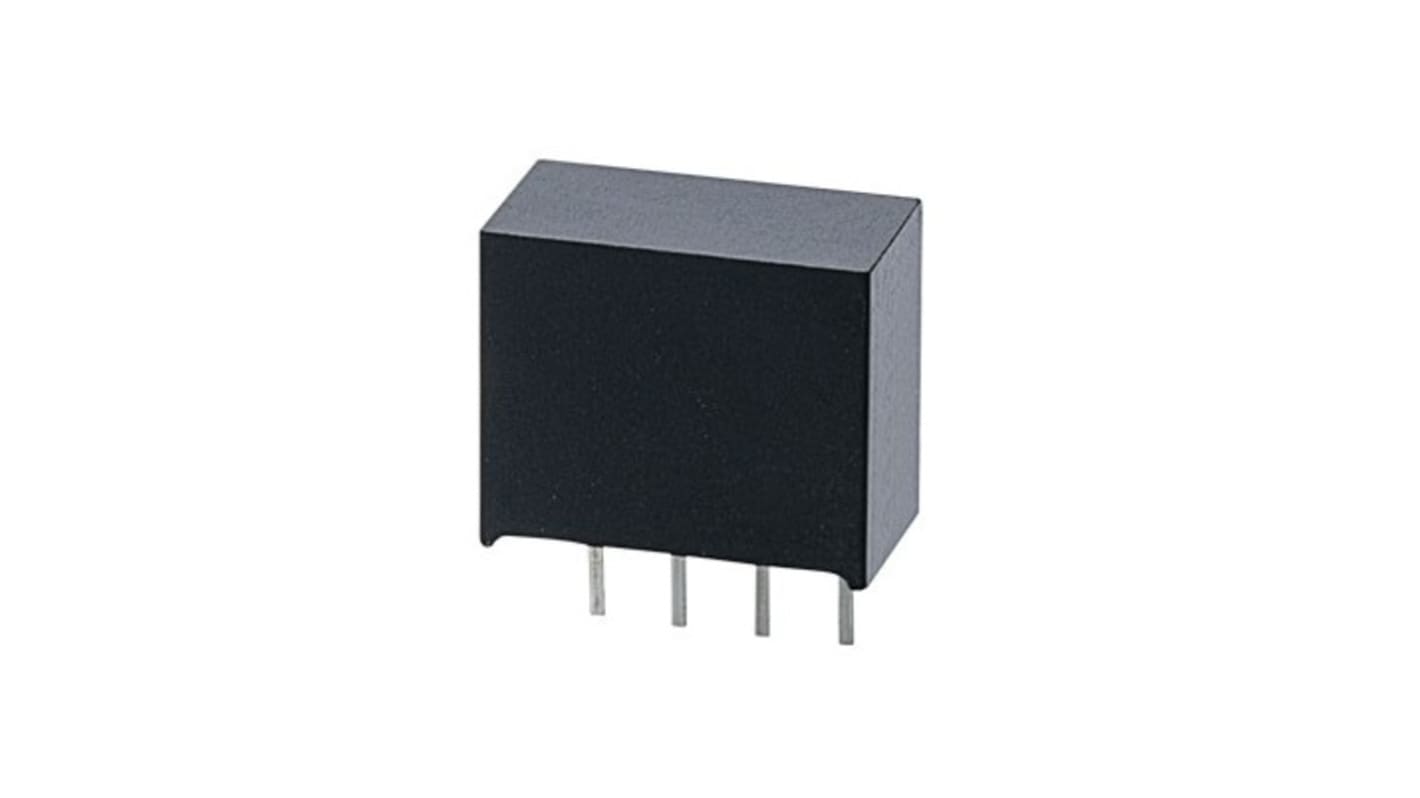

RS PRO SIP 4 Isolated DC - DC Converter, 1W
A regulated 1W DC to DC converter isolated to 1000 Vdc suitable for industrial control and telecom applications. The converter features a SIP 4 package with an industry standard pin layout and a 1:1 input voltage range.
Built with a self-extinguishing plastic case the DC converter utilises natural convection cooling to achieve an efficiency of 80% operating at temperatures from of -40℃ up to 95℃ (85℃ under full load).
Features and Benefits
DC -DC converter
1W output
Regulated
Isolated (1000 Vdc)
SIP4 package
1:1 input voltage range
No minimum load required
Industry standard pin out
Epoxy potted
80% efficiency
11.6 x 6 x 10.2mm dimensions
Standards and Approvals: EN/IEC 62368-1, EN55032, EN55035
