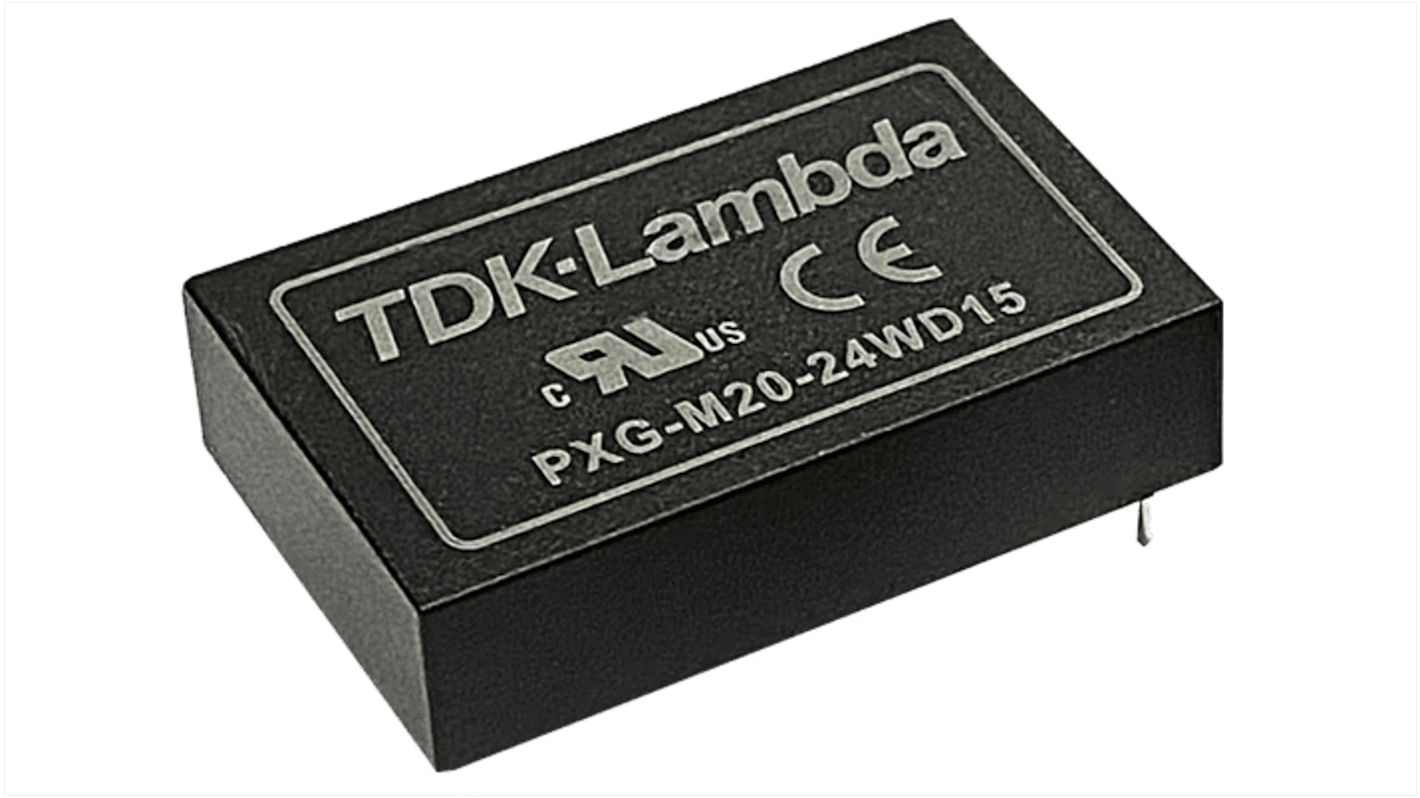

TDK-Lambda PXG-M DC/DC Converter, 24V, 5 V/ 4 A, 75V Input, 9V Input 20 W, Surface, 105 °C Max Temp -40 °C Min Temp

View all DC-DC Converters

Subtotal (1 unit)*

£67.75

(exc. VAT)

£81.30

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 5 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£67.75

*price indicative

RS Stock No.:
283-1813
Distrelec Article No.:
302-39-382
Mfr. Part No.:
PXG-M15-24WD15
Brand:
TDK-Lambda
Find similar products by selecting one or more attributes.
Select all

Brand

TDK-Lambda

Product Type

DC/DC Converter

Output Voltage 1

24, 5V

Maximum Input Voltage

75V

Minimum Input Voltage

9V

Output Current 1

4A

Mount Type

Surface

Input Ratio

4:1

MTBF

2080000h

Ripple and Noise

100mV Pk-Pk

Output Voltage Adjustment Range

4.5/28.8 V

Isolation Voltage

5000V

Maximum Output Power

20W

Weight

24g

Length

1.6in

Standards/Approvals

IEC 60601-1, IEC 62368-1

Series

PXG-M

Width

1in

Maximum Operating Temperature

105°C

Efficiency

89.5%

Minimum Operating Temperature

-40°C

COO (Country of Origin):
TW
The TDK-Lambda is a 15 to 20W Medical and Industrial DC-DC Converters. The PXG-M series of medical and industrial DC-DC converters feature a wide 4:1 input range in a compact 1.6 x 1 inch industry standard package. With 5kV input to output isolation, 2.5uA touch current and a low off-load power draw, these encapsulated modules are ideal for fixed and portable applications.

Less Board Area Needed

Suitable For Medical and Industrial Applications

High Input to Output Isolation

Longer Battery Life
