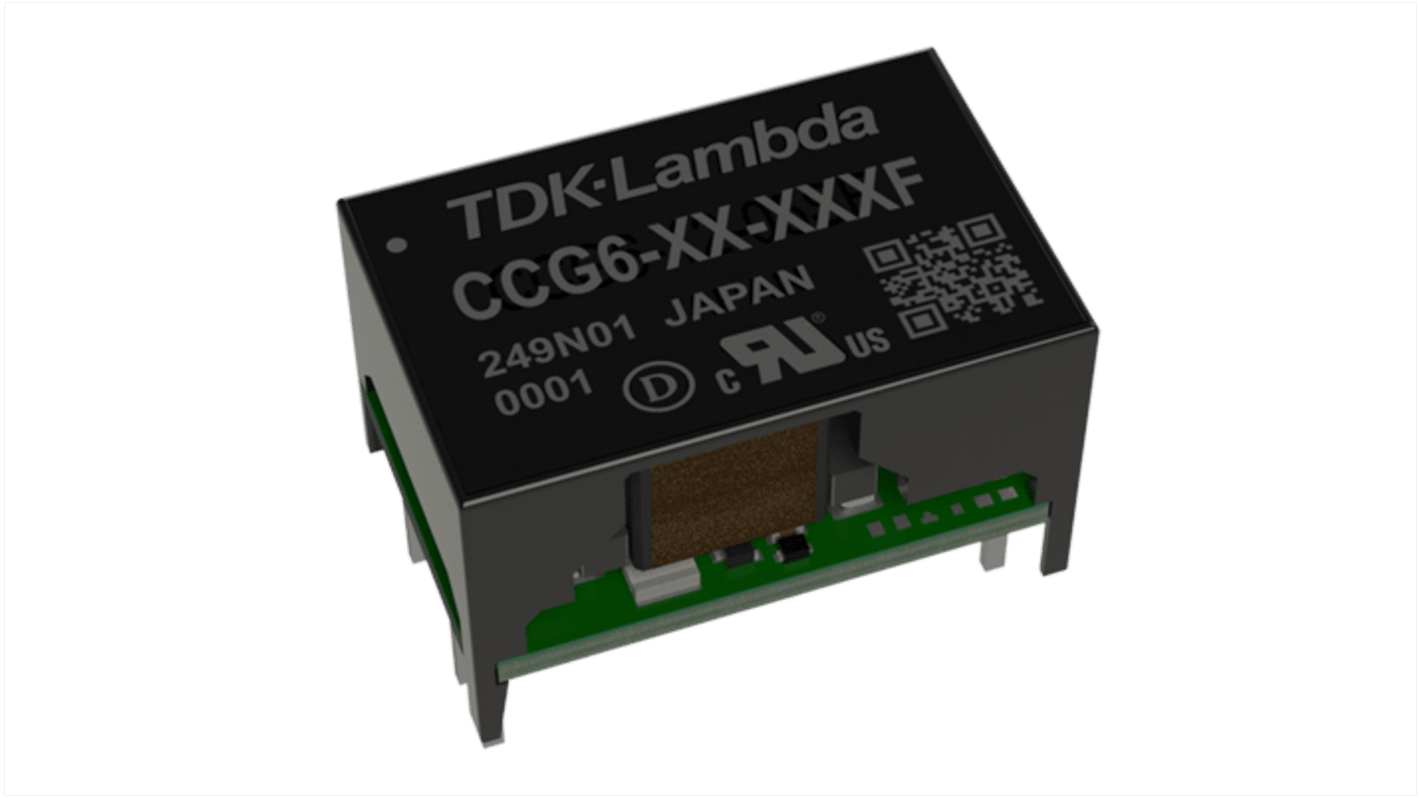

TDK-Lambda CCG 1.3-10W DC/DC Converter, 3.3V/ 4 A, 76V dc Input, 9V Input 30 W, Through Hole, 85 °C Max Temp -40 °C Min

View all DC-DC Converters

Subtotal (1 unit)*

£21.44

(exc. VAT)

£25.73

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 28 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£21.44

*price indicative

RS Stock No.:
283-1769
Distrelec Article No.:
303-80-888
Mfr. Part No.:
CCG6-48-05SF
Brand:
TDK-Lambda
Find similar products by selecting one or more attributes.
Select all

Brand

TDK-Lambda

Output Voltage 1

3.3V

Product Type

DC/DC Converter

Maximum Input Voltage

76V dc

Minimum Input Voltage

9V

Output Current 1

4A

Output Current 2

7A

Mount Type

Through Hole

Output Voltage 2

5V dc

MTBF

3191064h

Ripple and Noise

95mV Pk-Pk

Output Voltage Adjustment Range

-10 to 10 %

Isolation Voltage

1500V

Maximum Output Power

30W

Series

CCG 1.3-10W

Width

25.4mm

Length

25.4mm

Weight

20g

Standards/Approvals

IEC/UL/CSA/EN62368-1, CE Mark and UKCA Mark

Maximum Operating Temperature

85°C

Minimum Operating Temperature

-40°C

Efficiency

85.92%

COO (Country of Origin):
JP
The TDK-Lambda is a 13.2 to 30W DC-DC Converter. The 1 inch x 1 inch footprint CCG15 and CCG30 series of isolated DC-DC converters operate from wide range 9 to 36Vdc or 18 to 76V inputs with 15W and 30W power levels and output voltages from 3.3V to 30V. Single output models can be adjusted -10% to +10% by using the trim terminal. The CCG can operate in ambient temperatures of -40 to 85°C and has an input to output isolation of 1,500Vdc. Six sided shielding reduces radiated and conducted EMI.

Wide 4:1 Input Ranges

Space Saving Package Sizes

Reduced Derating at High Ambient Temperatures

Less Board Area Needed

Easier System Compliance

More Useable Power
