TDK-Lambda CCG 1.3-10W DC/DC Converter, 5V dc/ 2 A, 76V dc Input, 48V dc Input 10 W, Through Hole, 100 °C Max Temp -40
- RS Stock No.:
- 283-1748
- Distrelec Article No.:
- 303-80-870
- Mfr. Part No.:
- CCG10-48-05SF
- Brand:
- TDK-Lambda
Subtotal (1 unit)*
£30.98
(exc. VAT)
£37.18
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 35 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £30.98 |
*price indicative
- RS Stock No.:
- 283-1748
- Distrelec Article No.:
- 303-80-870
- Mfr. Part No.:
- CCG10-48-05SF
- Brand:
- TDK-Lambda
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK-Lambda | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 5V dc | |
| Minimum Input Voltage | 48V dc | |
| Maximum Input Voltage | 76V dc | |
| Output Current 1 | 2A | |
| Output Current 2 | 0.42A | |
| Mount Type | Through Hole | |
| Output Voltage 2 | 15V | |
| Input Ratio | 4:1 | |
| MTBF | 11883918h | |
| Number of Outputs | 2 | |
| Ripple and Noise | 200mV | |
| Output Voltage Adjustment Range | -5 to 10 % | |
| Isolation Voltage | 1.5V | |
| Maximum Output Power | 10W | |
| Package Type | Through Hole | |
| Weight | 4g | |
| Width | 12.4mm | |
| Standards/Approvals | IEC/UL/CSA/EN62368-1, CE mark, UKCA Mark | |
| Length | 19mm | |
| Depth | 11.5mm | |
| Series | CCG 1.3-10W | |
| Maximum Operating Temperature | 100°C | |
| Minimum Operating Temperature | -40°C | |
| Efficiency | 89% | |
| Select all | ||
|---|---|---|
Brand TDK-Lambda | ||
Product Type DC/DC Converter | ||
Output Voltage 1 5V dc | ||
Minimum Input Voltage 48V dc | ||
Maximum Input Voltage 76V dc | ||
Output Current 1 2A | ||
Output Current 2 0.42A | ||
Mount Type Through Hole | ||
Output Voltage 2 15V | ||
Input Ratio 4:1 | ||
MTBF 11883918h | ||
Number of Outputs 2 | ||
Ripple and Noise 200mV | ||
Output Voltage Adjustment Range -5 to 10 % | ||
Isolation Voltage 1.5V | ||
Maximum Output Power 10W | ||
Package Type Through Hole | ||
Weight 4g | ||
Width 12.4mm | ||
Standards/Approvals IEC/UL/CSA/EN62368-1, CE mark, UKCA Mark | ||
Length 19mm | ||
Depth 11.5mm | ||
Series CCG 1.3-10W | ||
Maximum Operating Temperature 100°C | ||
Minimum Operating Temperature -40°C | ||
Efficiency 89% | ||
- COO (Country of Origin):
- JP

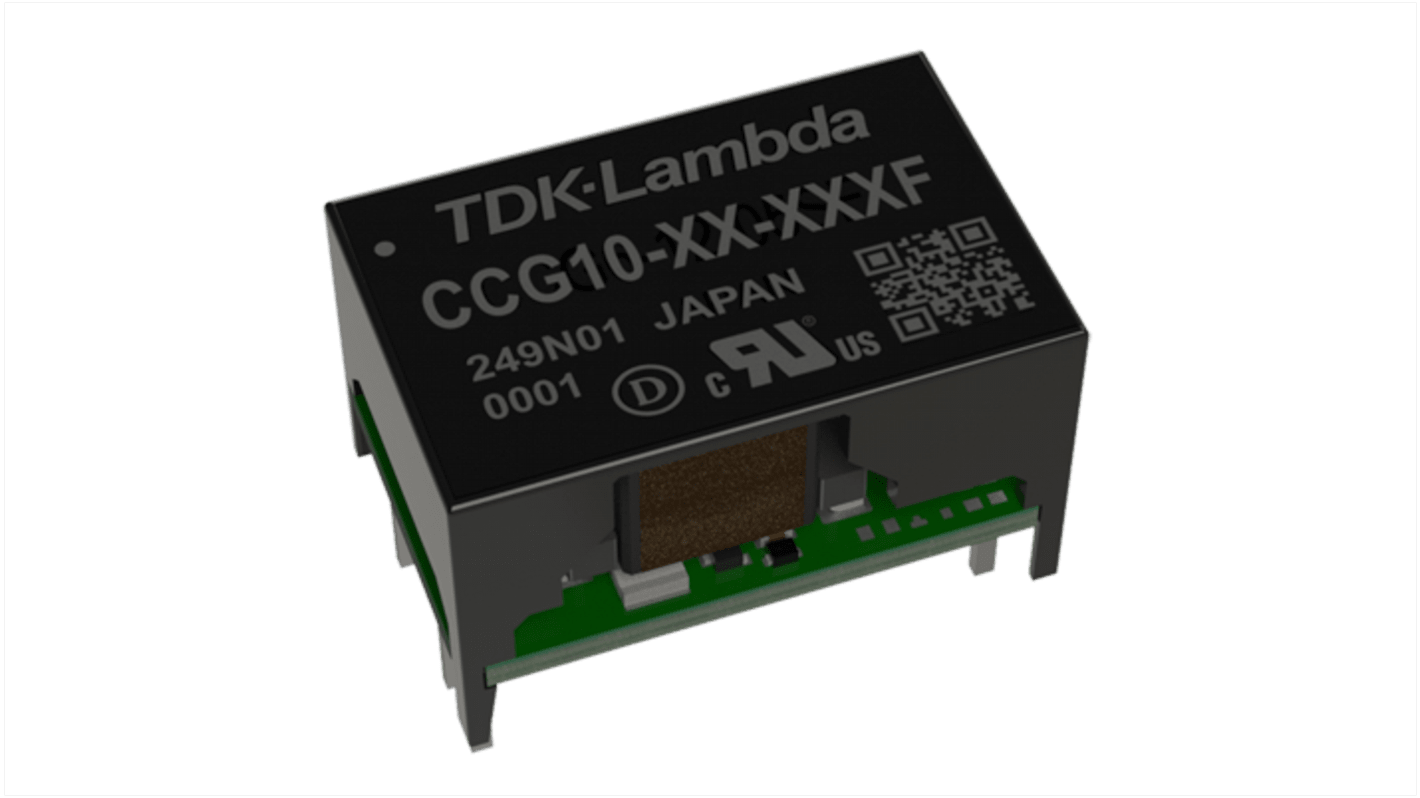

The TDK-Lambda is a 1.3 to 10.8W DC-DC Converter. The space saving CCG1R5 to CCG10 series of isolated DC-DC converters operate from wide range 4.5 to 18V, 9 to 36Vdc or 18 to 76V inputs with 1.3W to 10.8W power levels and output voltages from 3.3V to 30V (1). Single output models can be adjusted -5% to +10% by using the trim terminal. The CCG can operate in ambient temperatures of up to -40 to +100°C (model dependent) and have an input to output isolation of 1,500Vdc. Both through hole and surface mount packages are offered.
Wide 4:1 Input Ranges
Space Saving Package Sizes
Reduced Derating at High Ambient Temperatures
No Silicone Potting
Less Board Area Needed
Easier System Compliance
More Useable Power
Reduced Quality Risk During Surface Mount Reflow Process
