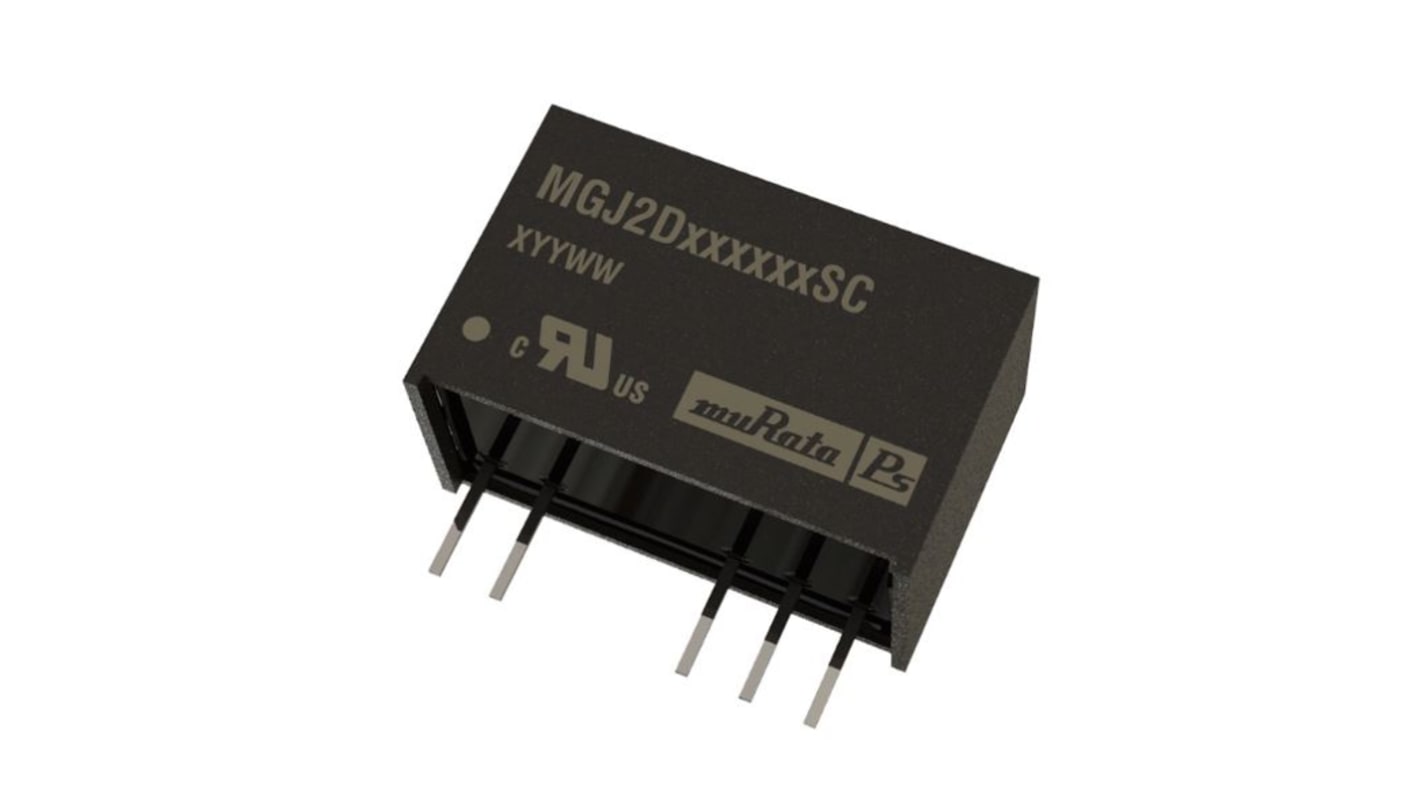

Murata Power Solutions MGJ2 Isolated DC-DC Converter, 18V dc/ 80mA Output, 21.6 - 26.4 V dc Input, 2W, Through Hole,
- RS Stock No.:
- 279-8061
- Mfr. Part No.:
- MGJ2D241802SC
- Brand:
- Murata Power Solutions
Bulk discount available
Subtotal (1 unit)*
£7.27
(exc. VAT)
£8.72
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 19 unit(s) shipping from 12 December 2025
- Plus 100 unit(s) shipping from 16 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £7.27 |
5 - 9 | £7.06 |
10 - 24 | £6.84 |
25 - 49 | £6.61 |
50 + | £6.40 |
*price indicative
- RS Stock No.:
- 279-8061
- Mfr. Part No.:
- MGJ2D241802SC
- Brand:
- Murata Power Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Murata Power Solutions | |
Output Voltage | 18V dc | |
Input Voltage Range | 21.6 - 26.4 V dc | |
Power Rating | 2W | |
Input Voltage Nominal | 24 V dc | |
Output Current | 80mA | |
Mounting Type | Through Hole | |
Series | MGJ2 | |
Maximum Temperature | +95°C | |
Minimum Temperature | -40°C | |
Select all | ||
---|---|---|
Brand Murata Power Solutions | ||
Output Voltage 18V dc | ||
Input Voltage Range 21.6 - 26.4 V dc | ||
Power Rating 2W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 80mA | ||
Mounting Type Through Hole | ||
Series MGJ2 | ||
Maximum Temperature +95°C | ||
Minimum Temperature -40°C | ||
- COO (Country of Origin):
- CN
The Murata Power Solutions MGJ2 series of DC-DC converters is ideal for powering high side and low side gate drive circuits for IGBTs and Mosfets in bridge circuits. A choice of asymmetric output voltages allows optimum drive levels for best system efficiency and EMI. The MGJ2 series is characterised for high isolation and dv/dt requirements commonly seen in bridge circuits used in motor drives and inverters, while the MGJ2 industrial grade temperature rating and construction gives long service life and reliability.
Optimised bipolar output voltages for IGBT/Mosfet gate drives
Characterised partial discharge performance
Ultra low coupling capacitance
SIP package style
Characterised partial discharge performance
Ultra low coupling capacitance
SIP package style
