WAGO 787 DC/DC Converter, 15V dc, 30 V dc/ 500 mA, 24V dc Input, 24V dc Input, DIN Rail 2.5 W, 70 °C Max Temp -25 °C Min
- RS Stock No.:
- 279-4122
- Mfr. Part No.:
- 787-2810
- Brand:
- WAGO
Subtotal (1 unit)*
£60.20
(exc. VAT)
£72.24
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 5 unit(s) shipping from 08 October 2026
- Plus 15 unit(s) shipping from 19 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £60.20 |
*price indicative
- RS Stock No.:
- 279-4122
- Mfr. Part No.:
- 787-2810
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 15, 30V dc | |
| Minimum Input Voltage | 24V dc | |
| Maximum Input Voltage | 24V dc | |
| Output Current 1 | 500mA | |
| Output Voltage 2 | 12V dc | |
| Mount Type | DIN Rail | |
| MTBF | 1800000h | |
| Output Voltage Adjustment Range | ±3 % | |
| Ripple and Noise | 20mV Pk-Pk | |
| Isolation Voltage | 24V dc | |
| Maximum Output Power | 2.5W | |
| Series | 787 | |
| Standards/Approvals | UL 61010-2-201, EN 61000-6-3, EN 61000-6-2, EN 60950-1, CE | |
| Depth | 97.8mm | |
| Length | 94mm | |
| Weight | 36.4g | |
| Width | 6mm | |
| Maximum Operating Temperature | 70°C | |
| Minimum Operating Temperature | -25°C | |
| Efficiency | 0.825% | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type DC/DC Converter | ||
Output Voltage 1 15, 30V dc | ||
Minimum Input Voltage 24V dc | ||
Maximum Input Voltage 24V dc | ||
Output Current 1 500mA | ||
Output Voltage 2 12V dc | ||
Mount Type DIN Rail | ||
MTBF 1800000h | ||
Output Voltage Adjustment Range ±3 % | ||
Ripple and Noise 20mV Pk-Pk | ||
Isolation Voltage 24V dc | ||
Maximum Output Power 2.5W | ||
Series 787 | ||
Standards/Approvals UL 61010-2-201, EN 61000-6-3, EN 61000-6-2, EN 60950-1, CE | ||
Depth 97.8mm | ||
Length 94mm | ||
Weight 36.4g | ||
Width 6mm | ||
Maximum Operating Temperature 70°C | ||
Minimum Operating Temperature -25°C | ||
Efficiency 0.825% | ||

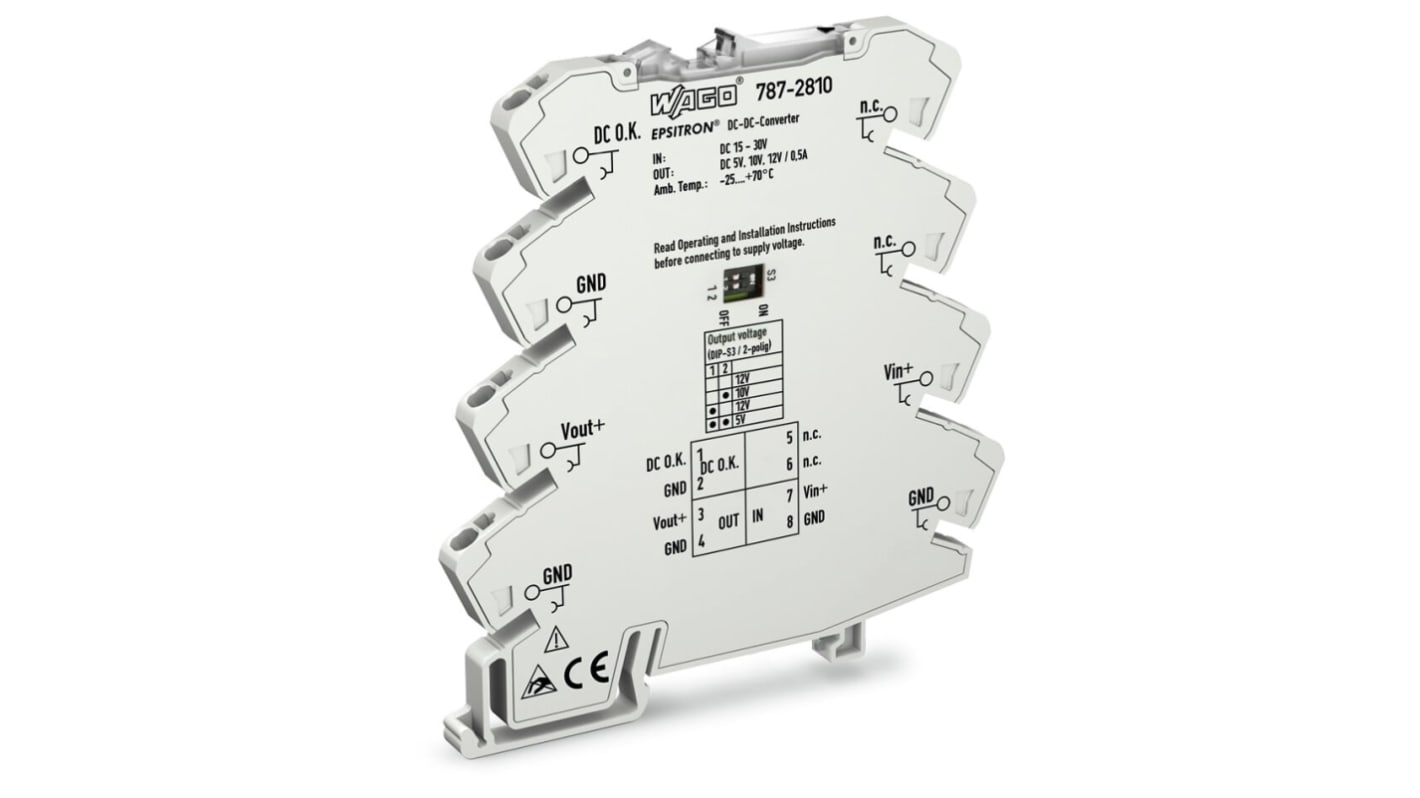

This is WAGO DC/DC converter in a compact 6 mm housing. It has IP20 degree of protection. It has mounting type of DIN-35 rail.
Output voltage monitoring via DC OK signal output
Can be commoned with 857 and 2857 series devices
Comprehensive range of approvals for multiple applications
