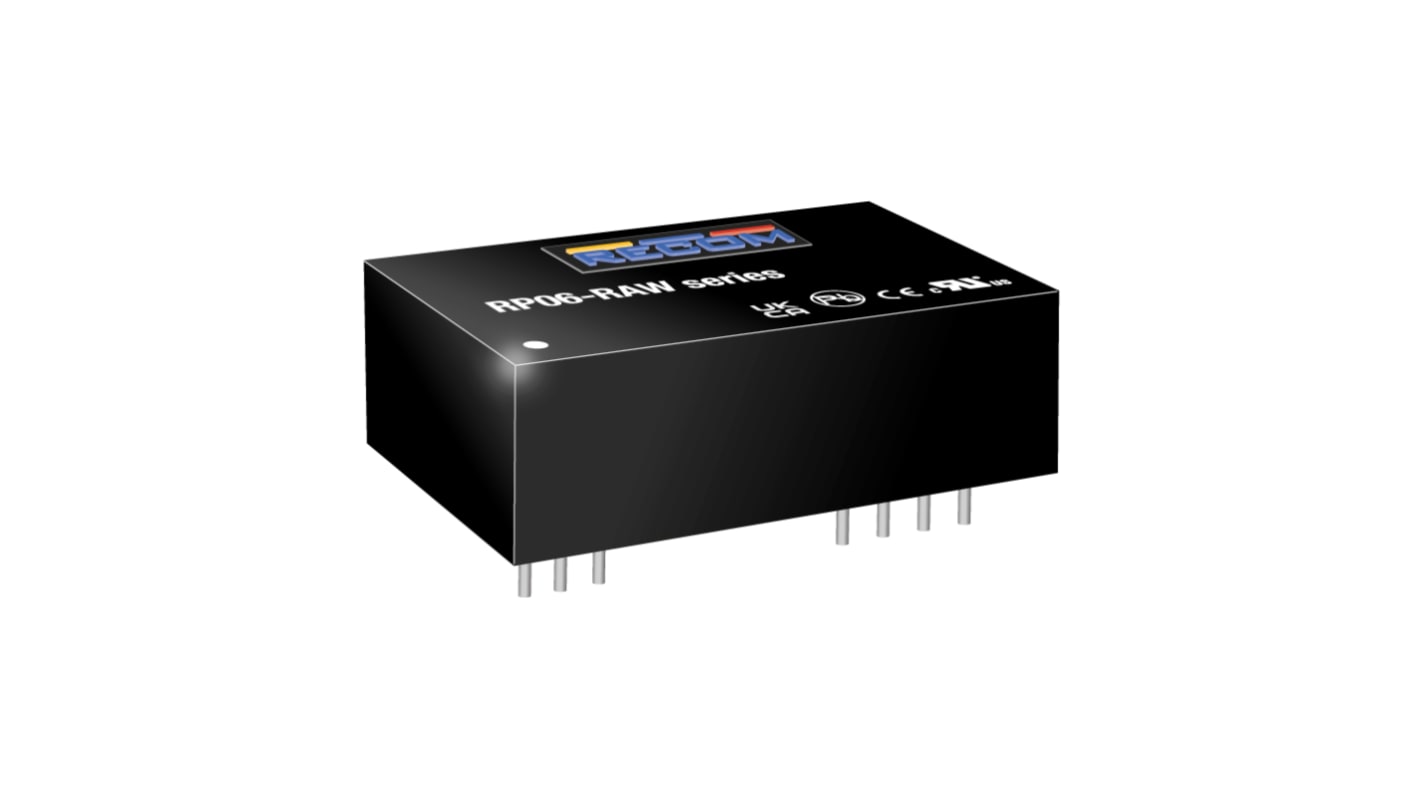

Recom RP06-RAW DC/DC Converter, 12V dc/ 500 mA, 160V dc Input, 110V dc Input 6 W, Through Hole, 85 °C Max Temp -40 °C

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 7 units)*

£288.69

(exc. VAT)

£346.43

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 14 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Tube(s)
Per Tube
Per unit*
1 - 4£288.69£41.241
5 - 9£280.03£40.004
10 - 24£271.37£38.767
25 - 49£262.71£37.53
50 +£254.05£36.293

*price indicative

RS Stock No.:
274-5462
Mfr. Part No.:
RP06-11012SRAW
Brand:
Recom
Find similar products by selecting one or more attributes.
Select all

Brand

Recom

Output Voltage 1

12V dc

Product Type

DC/DC Converter

Minimum Input Voltage

110V dc

Maximum Input Voltage

160V dc

Output Current 1

500mA

Output Current 2

600mA

Output Voltage 2

15V

Mount Type

Through Hole

Input Ratio

4:1

MTBF

3036000h

Number of Outputs

2

Ripple and Noise

75mV Pk-Pk

Output Voltage Adjustment Range

-10 to 10 %

Number of Pins

24

Isolation Voltage

3kV ac

Maximum Output Power

6W

Package Type

DIP-24

Standards/Approvals

EN5011, EN50155, EN550, IECEN66811, UL6681, CANCSAC. . 668114

Length

31.8mm

Depth

10.6mm

Weight

14g

Width

20.3mm

Series

RP06-RAW

Minimum Operating Temperature

-40°C

Efficiency

84.5%

Maximum Operating Temperature

85°C

COO (Country of Origin):
TW
The Recom DC/DC converters are designed for railway rolling stock applications with an extra wide continuous input voltage range, making them suitable for railway and non-railway systems high voltage battery applications.

Input under voltage lockout

Reinforced isolation
