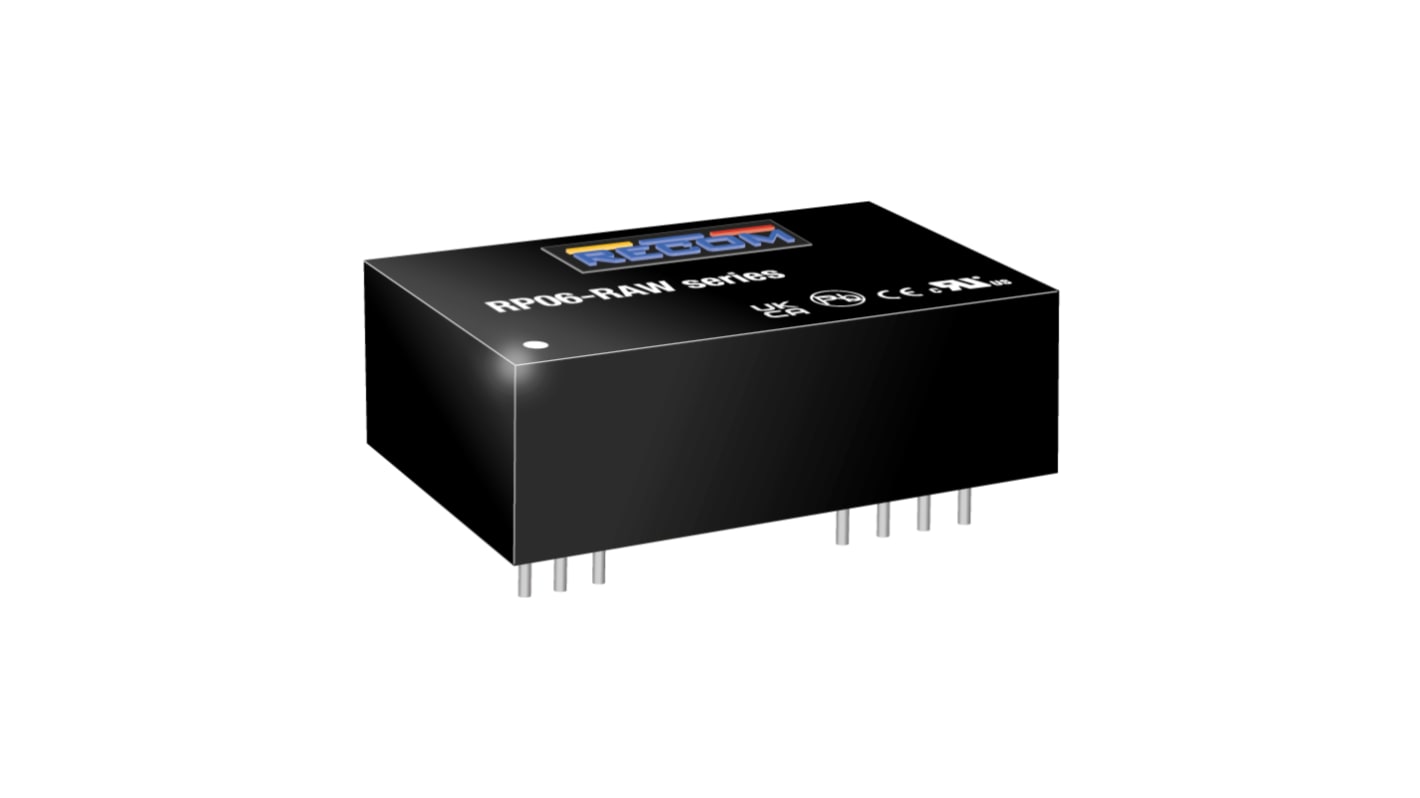

Recom RP06-RAW DC/DC Converter, 5V dc/ 1.2 A, 160V dc Input, 110V dc Input 6 W, Through Hole, 85 °C Max Temp -40 °C Min

View all DC-DC Converters
Bulk discount available

Subtotal (1 unit)*

£34.37

(exc. VAT)

£41.24

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 3 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 4£34.37
5 - 9£33.34
10 - 24£32.31
25 - 49£31.28
50 +£30.25

*price indicative

Packaging Options:
RS Stock No.:
274-5459
Mfr. Part No.:
RP06-11005SRAW
Brand:
Recom
Find similar products by selecting one or more attributes.
Select all

Brand

Recom

Output Voltage 1

5V dc

Product Type

DC/DC Converter

Minimum Input Voltage

110V dc

Maximum Input Voltage

160V dc

Output Current 1

1.2A

Output Current 2

600mA

Output Voltage 2

15V

Mount Type

Through Hole

Input Ratio

4:1

MTBF

3036000h

Number of Outputs

2

Ripple and Noise

75mV Pk-Pk

Output Voltage Adjustment Range

-10 to 20 %

Number of Pins

24

Isolation Voltage

3kV ac

Maximum Output Power

6W

Package Type

DIP-24

Standards/Approvals

REACH, EN5011, EN5505, EN550, IECEN66811, RoHS, UL6681, EN50155, CANCSAC. . 668114

Length

31.8mm

Depth

10.6mm

Weight

14g

Width

20.3mm

Series

RP06-RAW

Minimum Operating Temperature

-40°C

Efficiency

81.5%

Maximum Operating Temperature

85°C

COO (Country of Origin):
TW
The Recom DC/DC converters are designed for railway rolling stock applications with an extra wide continuous input voltage range, making them suitable for railway and non-railway systems high voltage battery applications.

Input under voltage lockout

Reinforced isolation
