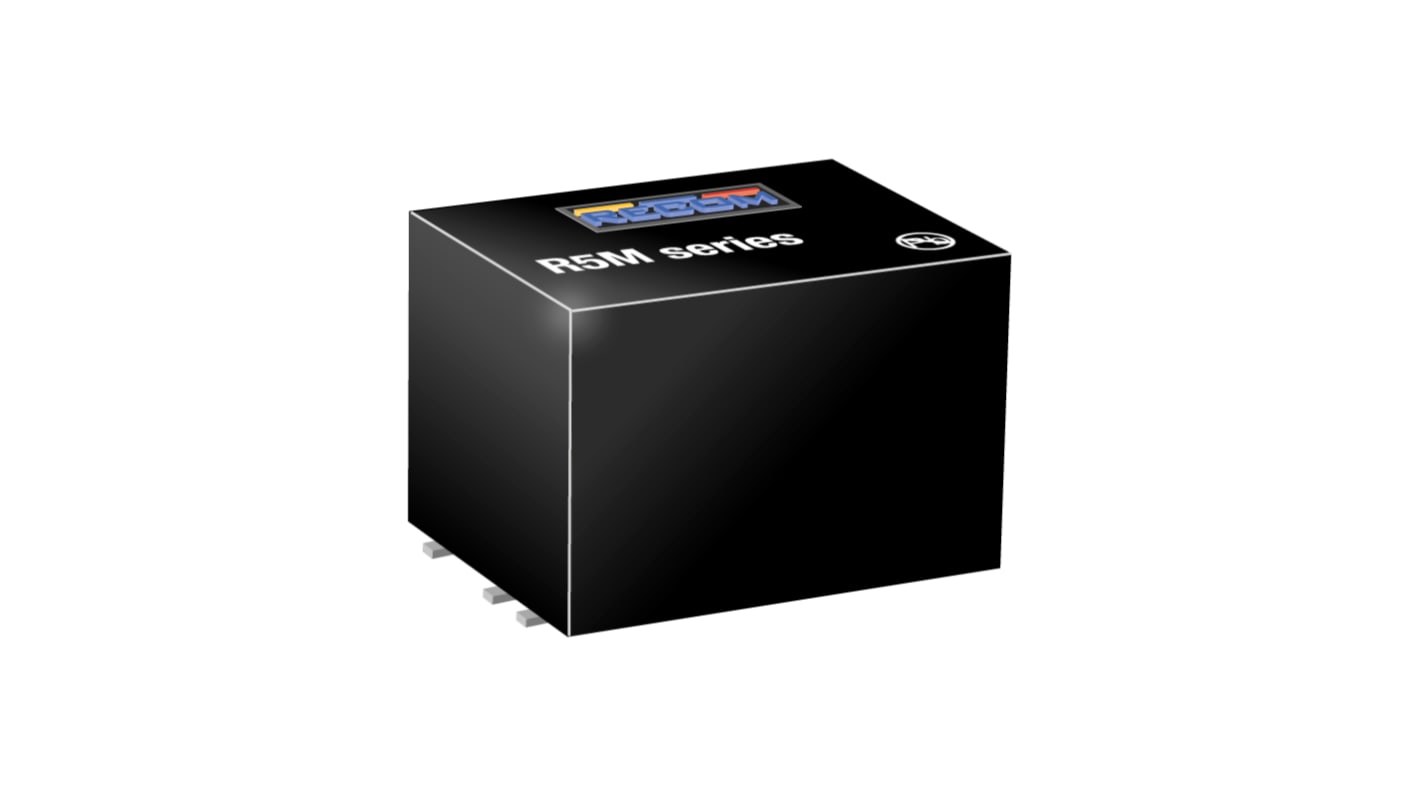

Recom R5M DC/DC Converter, 5V dc/ 1000 mA, 24V dc Input, 9V Input 5 W, Surface, 50 °C Max Temp -40 °C Min Temp, 7-Pin
- RS Stock No.:
- 274-5326
- Mfr. Part No.:
- R5M-2405S/SMD
- Brand:
- Recom
Bulk discount available
Subtotal (1 unit)*
£19.71
(exc. VAT)
£23.65
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 10 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £19.71 |
| 5 - 9 | £19.12 |
| 10 - 24 | £18.53 |
| 25 - 49 | £17.94 |
| 50 + | £17.34 |
*price indicative
- RS Stock No.:
- 274-5326
- Mfr. Part No.:
- R5M-2405S/SMD
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage 1 | 5V dc | |
| Product Type | DC/DC Converter | |
| Minimum Input Voltage | 9V | |
| Maximum Input Voltage | 24V dc | |
| Output Current 1 | 1000mA | |
| Output Current 2 | 500mA | |
| Output Voltage 2 | 5V dc | |
| Mount Type | Surface | |
| Input Ratio | 4:1 | |
| Number of Outputs | 1 | |
| MTBF | 29590h | |
| Ripple and Noise | 50mV Pk-Pk | |
| Number of Pins | 7 | |
| Isolation Voltage | 1.6kV | |
| Maximum Output Power | 5W | |
| Package Type | Surface Mount | |
| Series | R5M | |
| Standards/Approvals | MILSTD810F, RoHS, EN550, MILHDBK17F | |
| Weight | 2.7g | |
| Length | 14.2mm | |
| Depth | 10.2mm | |
| Width | 9.1mm | |
| Maximum Operating Temperature | 50°C | |
| Minimum Operating Temperature | -40°C | |
| Efficiency | 86% | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 1 5V dc | ||
Product Type DC/DC Converter | ||
Minimum Input Voltage 9V | ||
Maximum Input Voltage 24V dc | ||
Output Current 1 1000mA | ||
Output Current 2 500mA | ||
Output Voltage 2 5V dc | ||
Mount Type Surface | ||
Input Ratio 4:1 | ||
Number of Outputs 1 | ||
MTBF 29590h | ||
Ripple and Noise 50mV Pk-Pk | ||
Number of Pins 7 | ||
Isolation Voltage 1.6kV | ||
Maximum Output Power 5W | ||
Package Type Surface Mount | ||
Series R5M | ||
Standards/Approvals MILSTD810F, RoHS, EN550, MILHDBK17F | ||
Weight 2.7g | ||
Length 14.2mm | ||
Depth 10.2mm | ||
Width 9.1mm | ||
Maximum Operating Temperature 50°C | ||
Minimum Operating Temperature -40°C | ||
Efficiency 86% | ||
The Recom DC/DC Converter is an isolated converter in a Compact SMD package providing single or dual regulated, short-circuit protected outputs.
No minimum load requirement
ON and OFF control
