TRACOPOWER TRV 2M DC-DC Converter, 15V dc/ 134mA Output, 12 → 18 V dc Input, 2W, PCB Mount, +80°C Max Temp -40°C
- RS Stock No.:
- 252-6527
- Mfr. Part No.:
- TRV 2-1513M
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)*
£18.61
(exc. VAT)
£22.33
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 48 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £18.61 |
| 5 - 9 | £18.06 |
| 10 - 24 | £17.49 |
| 25 - 49 | £16.76 |
| 50 + | £16.01 |
*price indicative
- RS Stock No.:
- 252-6527
- Mfr. Part No.:
- TRV 2-1513M
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 15V dc | |
| Input Voltage Range | 12 → 18 V dc | |
| Power Rating | 2W | |
| Input Voltage Nominal | 15 V dc | |
| Output Current | 134mA | |
| Mounting Type | PCB Mount | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | SIP 9 | |
| Isolation Voltage | 5kV dc | |
| Railway Approved | No | |
| Series | TRV 2M | |
| Load Regulation | 4% | |
| Minimum Temperature | -40°C | |
| Medical Approved | Yes | |
| Maximum Temperature | +80°C | |
| Standards Met | EN 62368-1, IEC 62368-1 | |
| Efficiency | 83% | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 15V dc | ||
Input Voltage Range 12 → 18 V dc | ||
Power Rating 2W | ||
Input Voltage Nominal 15 V dc | ||
Output Current 134mA | ||
Mounting Type PCB Mount | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SIP 9 | ||
Isolation Voltage 5kV dc | ||
Railway Approved No | ||
Series TRV 2M | ||
Load Regulation 4% | ||
Minimum Temperature -40°C | ||
Medical Approved Yes | ||
Maximum Temperature +80°C | ||
Standards Met EN 62368-1, IEC 62368-1 | ||
Efficiency 83% | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TW

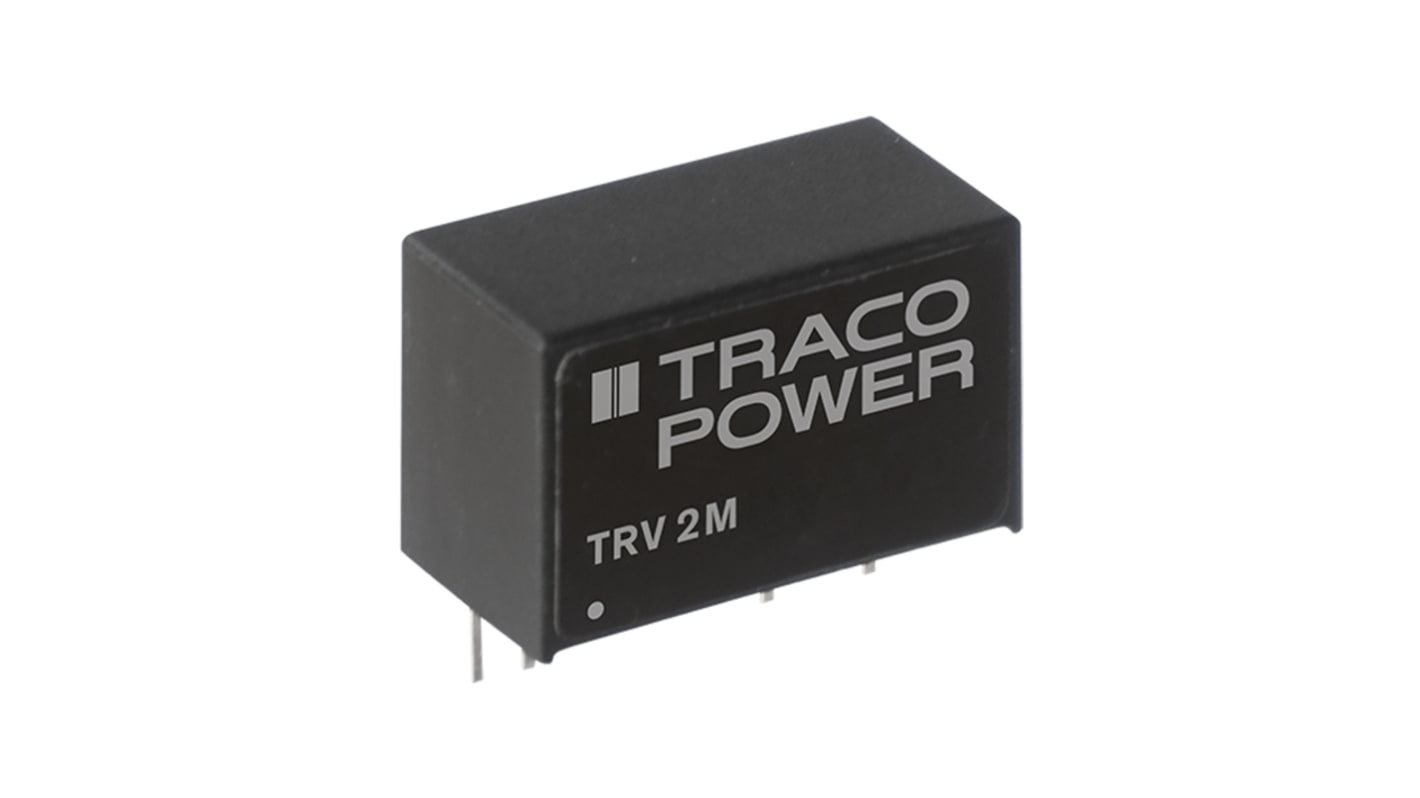

The TRACOPOWER TRV 2M series 2 watt DC/DC converter in a compact SIP-9 package with reinforced isolation of 5000 VAC for medical and industrial applications. With a continuous short circuit protection and a low leakage current of less than 2 μA, this converter is especially suited to protect any connected interfaces or applied parts to patients. Featuring almost fully regulated outputs this series provides great level of regulation without affecting the cost efficiency. It is an ideal solution for applications where an unregulated DC/DC converter would not meet your regulation requirements but cost still is a critical factor.
I/O isolation 5000 VAC (reinforced)
Wide 1.5:1 input voltage range
Operating temperature range -40 to +80 °C without derating
Certification according to IEC/EN/ES 60601-1 3rd edition for 2xMOPP and IEC/EN/UL 62368-1
Short circuit protection
Regulated outputs
Low leakage current < 2 μA
Efficiency up to 84 %
Operation up to 5000 m altitude
5-year product warranty
Wide 1.5:1 input voltage range
Operating temperature range -40 to +80 °C without derating
Certification according to IEC/EN/ES 60601-1 3rd edition for 2xMOPP and IEC/EN/UL 62368-1
Short circuit protection
Regulated outputs
Low leakage current < 2 μA
Efficiency up to 84 %
Operation up to 5000 m altitude
5-year product warranty
