TRACOPOWER TRV DC-DC Converter, 15V dc/ 67mA Output, 12 → 18 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C
- RS Stock No.:
- 209-9895
- Mfr. Part No.:
- TRV 1-1513M
- Brand:
- TRACOPOWER
Subtotal (1 unit)*
£10.57
(exc. VAT)
£12.68
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £10.57 |
*price indicative
- RS Stock No.:
- 209-9895
- Mfr. Part No.:
- TRV 1-1513M
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 15V dc | |
| Input Voltage Range | 12 → 18 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | 15 V dc | |
| Output Current | 67mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | 15V dc | |
| Package | SIP | |
| Isolation Voltage | 5kV | |
| Width | 9.8mm | |
| Depth | 12.5mm | |
| Length | 19.6mm | |
| Series | TRV | |
| Load Regulation | 0.07 | |
| Maximum Temperature | +85°C | |
| Efficiency | 0.84 | |
| Minimum Temperature | -40°C | |
| Medical Approved | Yes | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 15V dc | ||
Input Voltage Range 12 → 18 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 15 V dc | ||
Output Current 67mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range 15V dc | ||
Package SIP | ||
Isolation Voltage 5kV | ||
Width 9.8mm | ||
Depth 12.5mm | ||
Length 19.6mm | ||
Series TRV | ||
Load Regulation 0.07 | ||
Maximum Temperature +85°C | ||
Efficiency 0.84 | ||
Minimum Temperature -40°C | ||
Medical Approved Yes | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TW

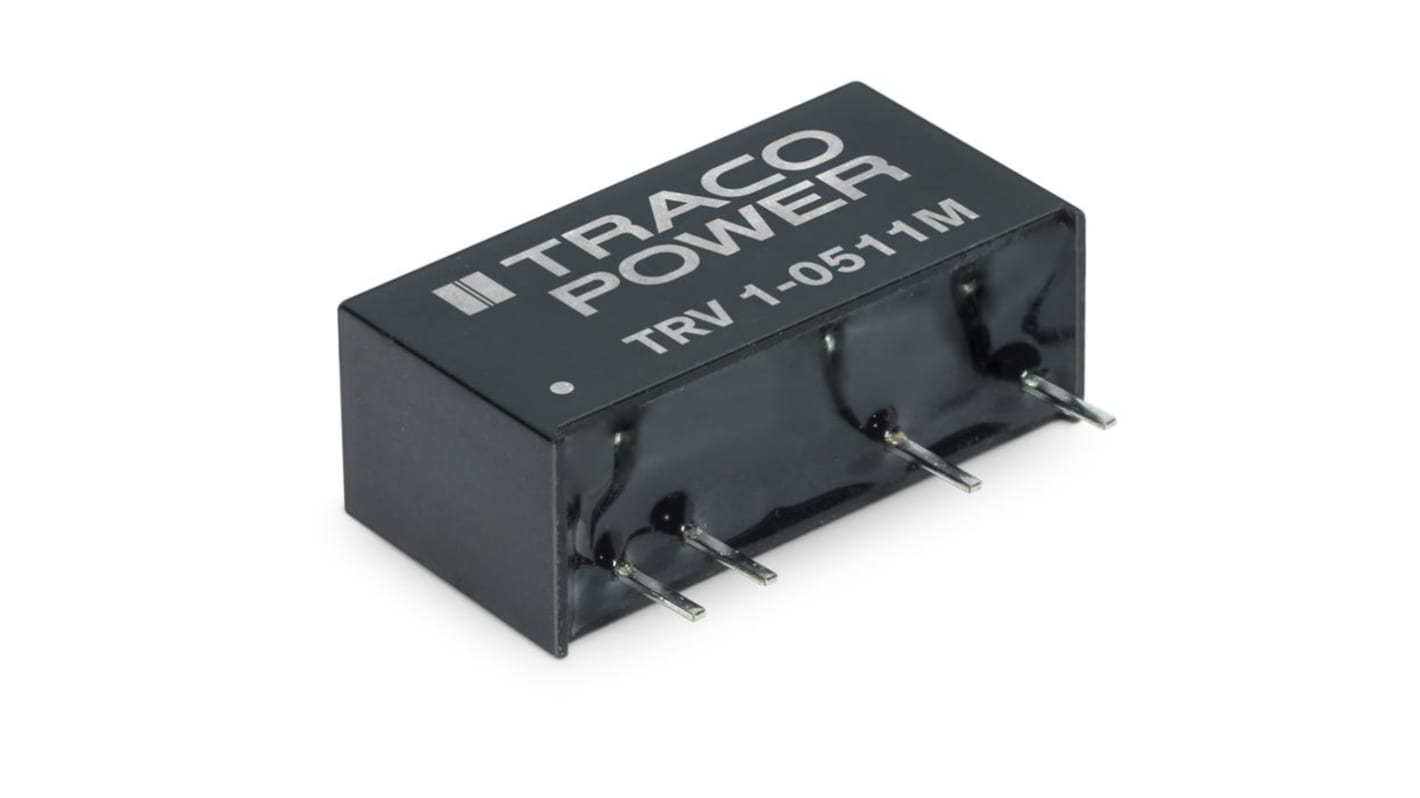

The TRACOPOWER TRV 1M is a series of 1 Watt DC/DC converters in a compact SIP-9 package with reinforced isolation of 5000 VAC for medical and industrial applications. The series offers models with different input voltages (±10%) between 5 and 24 VDC. With a continuous short circuit protection and a low leakage current of less than 2 μA, this converter series is especially suited to protect any connected interfaces or applied parts to patients. Featuring semi-regulated outputs this series provides a good level of regulation without affecting the cost efficiency.
I/O isolation 5000 VAC (reinforced)
Short circuit protection
Semi-regulated outputs
Input voltage ranges (±10%): 5, 12, 15, 24 VDC
Operating temperature range -40 to +85 °C without derating
Certification according to IEC/EN/ES 60601-1 3rd edition for 2xMOPP and IEC/EN/UL 62368-1
Low leakage current < 2 μA
Efficiency up to 85%
Operation up to 5000 m altitude
5-year product warranty
Short circuit protection
Semi-regulated outputs
Input voltage ranges (±10%): 5, 12, 15, 24 VDC
Operating temperature range -40 to +85 °C without derating
Certification according to IEC/EN/ES 60601-1 3rd edition for 2xMOPP and IEC/EN/UL 62368-1
Low leakage current < 2 μA
Efficiency up to 85%
Operation up to 5000 m altitude
5-year product warranty
