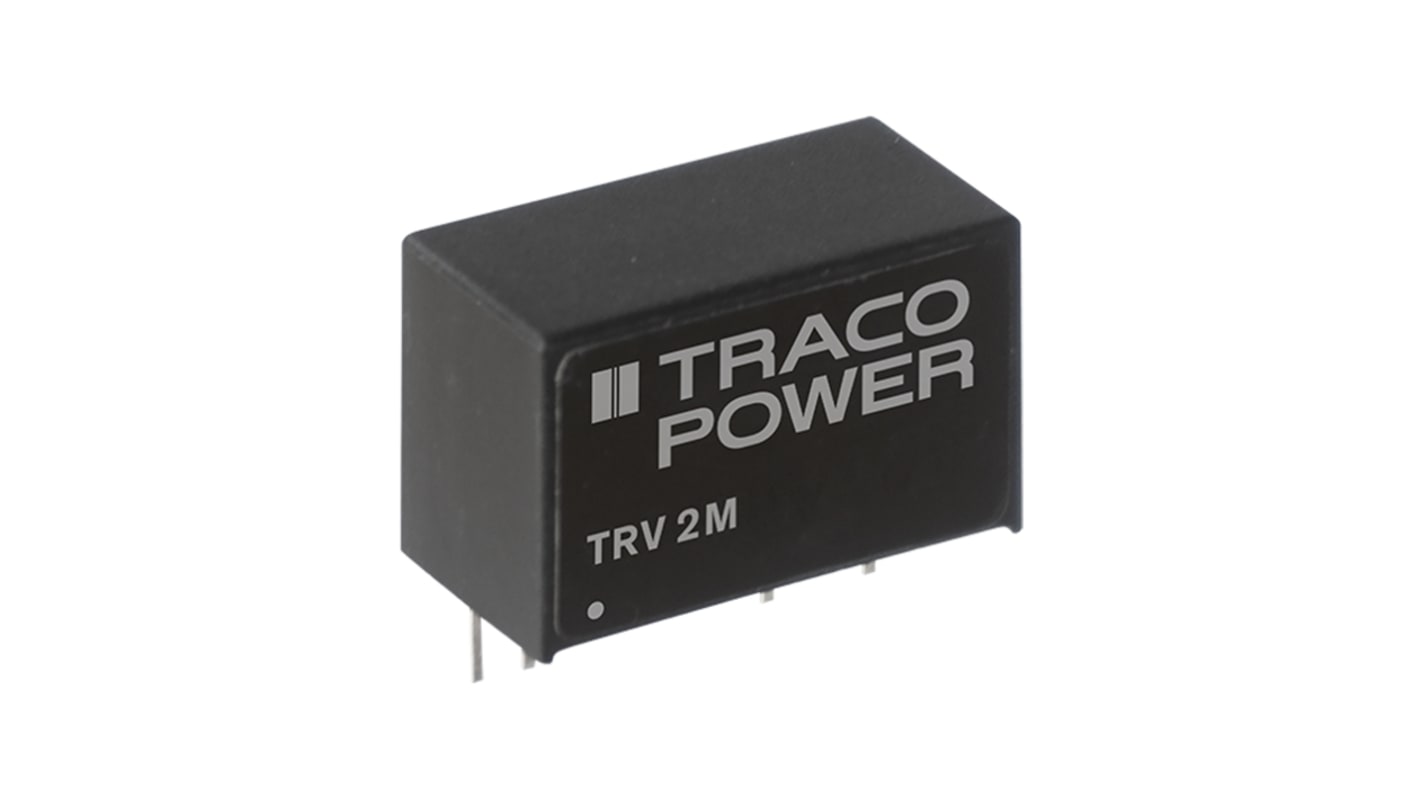

TRACOPOWER TRV 2M DC/DC Converter, 12V dc/ 167 mA, 18V dc Input, 12V dc Input 2 W, Through Hole, 85 °C Max Temp -40 °C
- RS Stock No.:
- 252-6523
- Mfr. Part No.:
- TRV 2-1512M
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£167.70
(exc. VAT)
£201.24
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 09 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £167.70 | £16.77 |
| 5 - 9 | £162.67 | £16.267 |
| 10 - 24 | £157.64 | £15.764 |
| 25 - 49 | £150.93 | £15.093 |
| 50 + | £144.22 | £14.422 |
*price indicative
- RS Stock No.:
- 252-6523
- Mfr. Part No.:
- TRV 2-1512M
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage 1 | 12V dc | |
| Product Type | DC/DC Converter | |
| Maximum Input Voltage | 18V dc | |
| Minimum Input Voltage | 12V dc | |
| Output Current 1 | 167mA | |
| Mount Type | Through Hole | |
| Input Ratio | 4:1 | |
| MTBF | 10410000h | |
| Number of Outputs | 1 | |
| Isolation Voltage | 5kV dc | |
| Number of Pins | 5 | |
| Maximum Output Power | 2W | |
| Package Type | SIP-9 | |
| Depth | 9.9mm | |
| Standards/Approvals | RoHS | |
| Series | TRV 2M | |
| Length | 19.6mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Efficiency | 84% | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 1 12V dc | ||
Product Type DC/DC Converter | ||
Maximum Input Voltage 18V dc | ||
Minimum Input Voltage 12V dc | ||
Output Current 1 167mA | ||
Mount Type Through Hole | ||
Input Ratio 4:1 | ||
MTBF 10410000h | ||
Number of Outputs 1 | ||
Isolation Voltage 5kV dc | ||
Number of Pins 5 | ||
Maximum Output Power 2W | ||
Package Type SIP-9 | ||
Depth 9.9mm | ||
Standards/Approvals RoHS | ||
Series TRV 2M | ||
Length 19.6mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Efficiency 84% | ||
RoHS Status: Exempt
The TRACOPOWER TRV 2M series 2 watt DC/DC converter in a compact SIP-9 package with reinforced isolation of 5000 VAC for medical and industrial applications. With a continuous short circuit protection and a low leakage current of less than 2 μA, this converter is especially suited to protect any connected interfaces or applied parts to patients. Featuring almost fully regulated outputs this series provides great level of regulation without affecting the cost efficiency. It is an ideal solution for applications where an unregulated DC/DC converter would not meet your regulation requirements but cost still is a critical factor.
I/O isolation 5000 VAC (reinforced)
Wide 1.5:1 input voltage range
Operating temperature range -40 to +80 °C without derating
Certification according to IEC/EN/ES 60601-1 3rd edition for 2xMOPP and IEC/EN/UL 62368-1
Short circuit protection
Regulated outputs
Low leakage current < 2 μA
Efficiency up to 84 %
Operation up to 5000 m altitude
5-year product warranty
