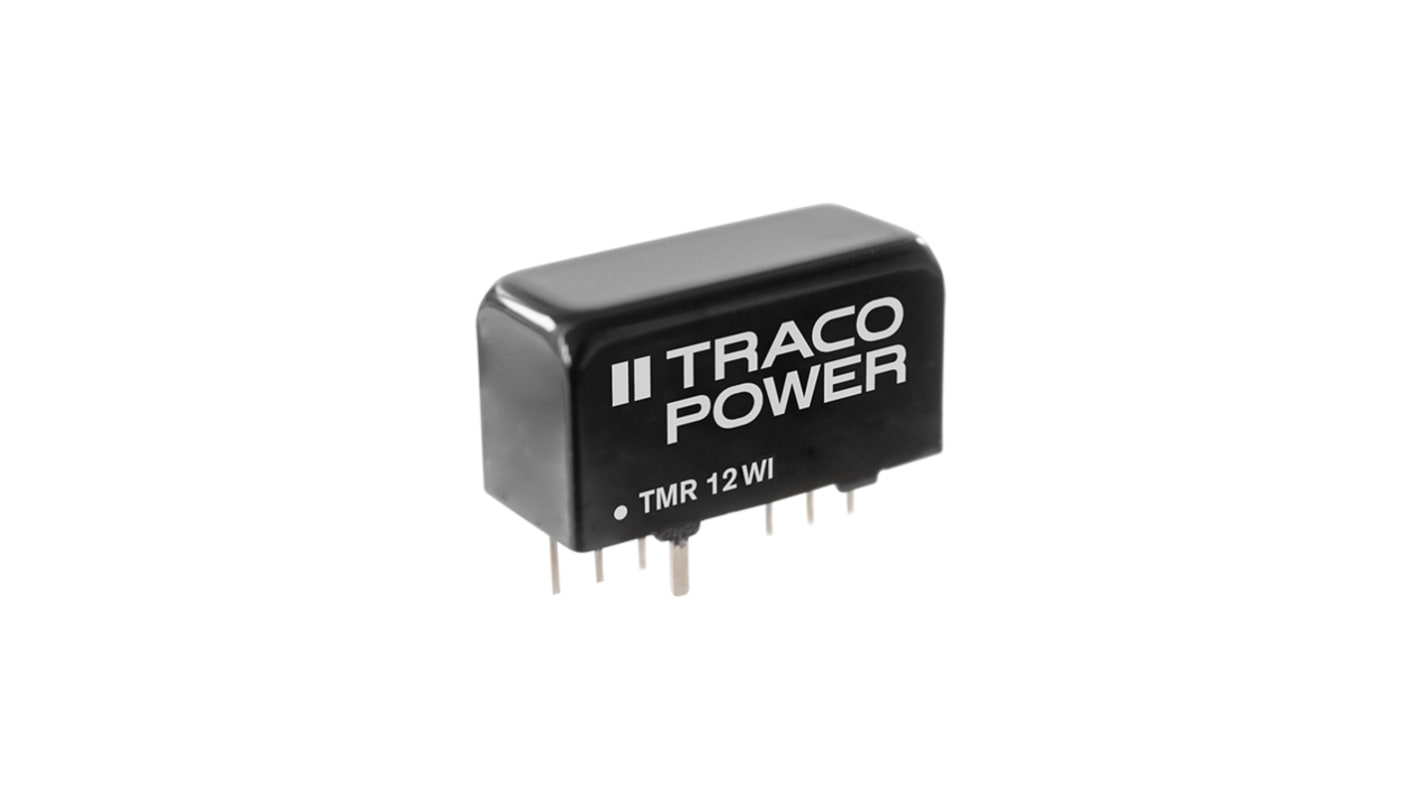

TRACOPOWER TMR 12WI DC-DC Converter, 3.3V dc/ 2.4A Output, 18 → 75 V dc Input, 12W, PCB Mount, +85°C Max Temp
- RS Stock No.:
- 251-7295
- Mfr. Part No.:
- TMR 12-4811WI
- Brand:
- TRACOPOWER
Available to back order for despatch 04/10/2024
Added
Price Each (In a Tube of 10)
£323.52
(exc. VAT)
£388.22
(inc. VAT)
| Units | Per unit | Per Tube* |
| 1 - 4 | £323.52 | £3,235.20 |
| 5 - 9 | £313.81 | £3,138.10 |
| 10 - 24 | £304.11 | £3,041.10 |
| 25 - 49 | £291.17 | £2,911.70 |
| 50 + | £278.23 | £2,782.30 |
| *price indicative | ||
- RS Stock No.:
- 251-7295
- Mfr. Part No.:
- TMR 12-4811WI
- Brand:
- TRACOPOWER
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- TW
Product Details
The TRACOPOWER isolated 12 Watt DC/DC converter module with regulated output. The product offers a very high power density of 4.73W/cm³ in an ultra-compact SIP-8 metal package occupying only 2.0 cm² (0.3 square inch) of board space. The very compact dimensions of this converter make it an ideal solution for many space critical applications in communication equipment, instrumentation and industrial electronics.
Wide 4:1 input voltage ranges
I/O-isolation 1600 VDC
High efficiency (up to 90%) for low thermal loss
Operating temperature range -40°C to +85°C
Fully regulated outputs
Remote On/Off control
Indefinite short circuit protection
3-year product warranty
I/O-isolation 1600 VDC
High efficiency (up to 90%) for low thermal loss
Operating temperature range -40°C to +85°C
Fully regulated outputs
Remote On/Off control
Indefinite short circuit protection
3-year product warranty
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 3.3V dc |
| Input Voltage Range | 18 → 75 V dc |
| Power Rating | 12W |
| Input Voltage Nominal | 48 V DC |
| Output Current | 2.4A |
| Mounting Type | PCB Mount |
| Isolated | Yes |
| Number of Outputs | 1 |
| Package | SIP 8 |
| Isolation Voltage | 1.6kV dc |
| Length | 22mm |
| Depth | 12mm |
| Width | 9.6mm |
| Railway Approved | No |
| Series | TMR 12WI |
| Load Regulation | 0.5% |
| Minimum Temperature | -40°C |
| Standards Met | RoHS |
| Efficiency | 89% |
| Medical Approved | No |
| Maximum Temperature | +85°C |
