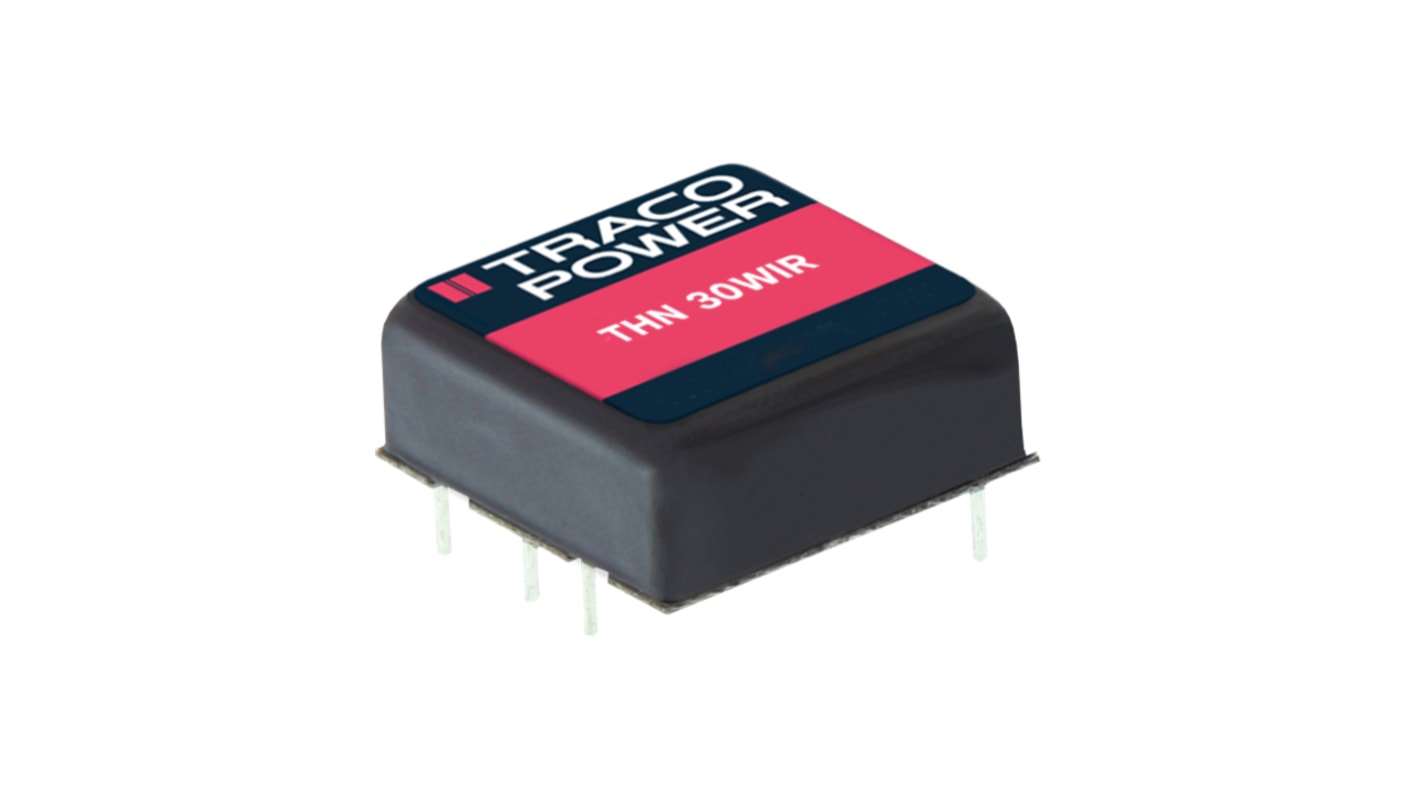

TRACOPOWER THN 30WIR DC/DC Converter, 24V dc/ 1.25 A, 160V dc Input, 36V Input 30 W, PCB, 65 °C Max Temp -40 °C Min
- RS Stock No.:
- 249-7381
- Mfr. Part No.:
- THN 30-7215WIR
- Brand:
- TRACOPOWER
Subtotal (1 tube of 10 units)*
£601.15
(exc. VAT)
£721.38
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £601.15 | £60.115 |
*price indicative
- RS Stock No.:
- 249-7381
- Mfr. Part No.:
- THN 30-7215WIR
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage 1 | 24V dc | |
| Product Type | DC/DC Converter | |
| Maximum Input Voltage | 160V dc | |
| Minimum Input Voltage | 36V | |
| Output Current 1 | 1.25A | |
| Mount Type | PCB | |
| Input Ratio | 4:1 | |
| MTBF | 420800h | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | 21.6/28.8 V dc | |
| Isolation Voltage | 2.25kV dc | |
| Number of Pins | 6 | |
| Package Type | Metal | |
| Maximum Output Power | 30W | |
| Standards/Approvals | RoHS | |
| Length | 25.4mm | |
| Series | THN 30WIR | |
| Width | 25.4mm | |
| Depth | 9.9mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 65°C | |
| Efficiency | 91% | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 1 24V dc | ||
Product Type DC/DC Converter | ||
Maximum Input Voltage 160V dc | ||
Minimum Input Voltage 36V | ||
Output Current 1 1.25A | ||
Mount Type PCB | ||
Input Ratio 4:1 | ||
MTBF 420800h | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range 21.6/28.8 V dc | ||
Isolation Voltage 2.25kV dc | ||
Number of Pins 6 | ||
Package Type Metal | ||
Maximum Output Power 30W | ||
Standards/Approvals RoHS | ||
Length 25.4mm | ||
Series THN 30WIR | ||
Width 25.4mm | ||
Depth 9.9mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 65°C | ||
Efficiency 91% | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TW
TRACOPOWER THN 30WIR Series DC-DC Converter, 36 to 160V DC Input Voltage Range, 30W - THN 30-7215WIR
This DC-DC converter provides a 24V DC output with a 30W power rating. Its compact size of 25.4mm x 25.4mm x 9.9mm is ideal for PCB mounting. Operating over a wide input voltage range of 36 to 160V DC, it is suited for various challenging environments.
Features & Benefits
• High efficiency up to 92% reduces energy waste
• Isolated design enhances safety in sensitive environments
• Adjustable output voltage of 21.6V to 28.8V for custom needs
• Robust metal package ensures EMI shielding and durability
Applications
• Industrial applications requiring high voltage
• Telecommunications equipment needing stable power
• Automation systems for efficient energy distribution
Can it handle extreme temperatures?
Yes, it operates between -40°C and 80°C without derating.
Does it provide overvoltage protection?
Yes, it includes built-in overvoltage protection.
Is it suitable for PCB mounting?
Yes, it is designed for PCB mounting applications.
Does it meet safety standards for railway use?
Yes, it is EN 50155 certified for railway applications.
