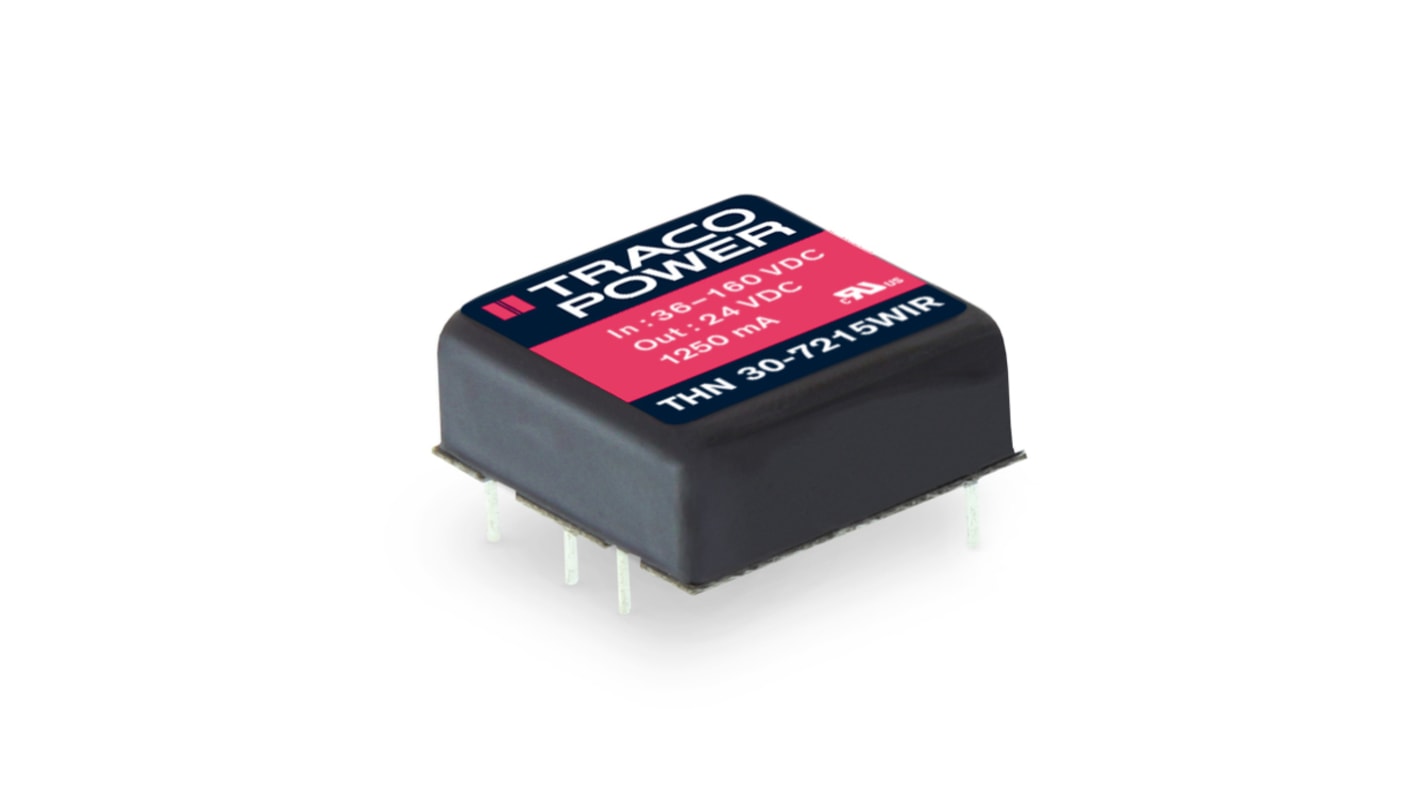

TRACOPOWER THN 30WIR DC/DC Converter, 24V dc/ 625 mA, 36V dc Input, 9V Input 30 W, PCB, 65 °C Max Temp -40 °C Min Temp,
- RS Stock No.:
- 249-7353
- Distrelec Article No.:
- 302-64-341
- Mfr. Part No.:
- THN 30-2425WIR
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)*
£59.89
(exc. VAT)
£71.87
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 6 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £59.89 |
| 5 - 9 | £58.10 |
| 10 - 24 | £56.30 |
| 25 - 49 | £53.90 |
| 50 + | £51.50 |
*price indicative
- RS Stock No.:
- 249-7353
- Distrelec Article No.:
- 302-64-341
- Mfr. Part No.:
- THN 30-2425WIR
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 24V dc | |
| Maximum Input Voltage | 36V dc | |
| Minimum Input Voltage | 9V | |
| Output Current 1 | 625mA | |
| Output Current 2 | -625mA | |
| Output Voltage 2 | 24V dc | |
| Mount Type | PCB | |
| Input Ratio | 4:1 | |
| MTBF | 420800h | |
| Number of Outputs | 2 | |
| Output Voltage Adjustment Range | 20 % | |
| Isolation Voltage | 2.25kV dc | |
| Number of Pins | 6 | |
| Maximum Output Power | 30W | |
| Package Type | Metal | |
| Series | THN 30WIR | |
| Width | 25.4mm | |
| Depth | 9.9mm | |
| Length | 25.4mm | |
| Standards/Approvals | RoHS | |
| Efficiency | 91% | |
| Maximum Operating Temperature | 65°C | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Product Type DC/DC Converter | ||
Output Voltage 1 24V dc | ||
Maximum Input Voltage 36V dc | ||
Minimum Input Voltage 9V | ||
Output Current 1 625mA | ||
Output Current 2 -625mA | ||
Output Voltage 2 24V dc | ||
Mount Type PCB | ||
Input Ratio 4:1 | ||
MTBF 420800h | ||
Number of Outputs 2 | ||
Output Voltage Adjustment Range 20 % | ||
Isolation Voltage 2.25kV dc | ||
Number of Pins 6 | ||
Maximum Output Power 30W | ||
Package Type Metal | ||
Series THN 30WIR | ||
Width 25.4mm | ||
Depth 9.9mm | ||
Length 25.4mm | ||
Standards/Approvals RoHS | ||
Efficiency 91% | ||
Maximum Operating Temperature 65°C | ||
Minimum Operating Temperature -40°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TW
TRACOPOWER THN 30WIR Series DC-DC Converter, 9 to 36V DC Input Voltage Range, 30W - THN 30-2425WIR
This DC-DC converter features an input voltage range of 9V to 36V DC and an adjustable output voltage from -24V to 24V DC. It has compact size of 25.4mm x 25.4mm x 9.9mm, making it versatile and easy to integrate into various systems.
Features & Benefits
• High efficiency up to 92% reduces energy loss
• Isolated design ensures operational safety
• Adjustable output voltage accommodates custom power needs
• Robust packaging provides protection against interference
Applications
• Ideal for harsh environmental conditions in transportation
• Medical equipment requiring high safety standards
Can it operate in extreme temperatures?
Yes, it functions between -40°C and 80°C.
Is it suitable for railway systems?
Yes, it meets EN 50155 standards for railway use.
