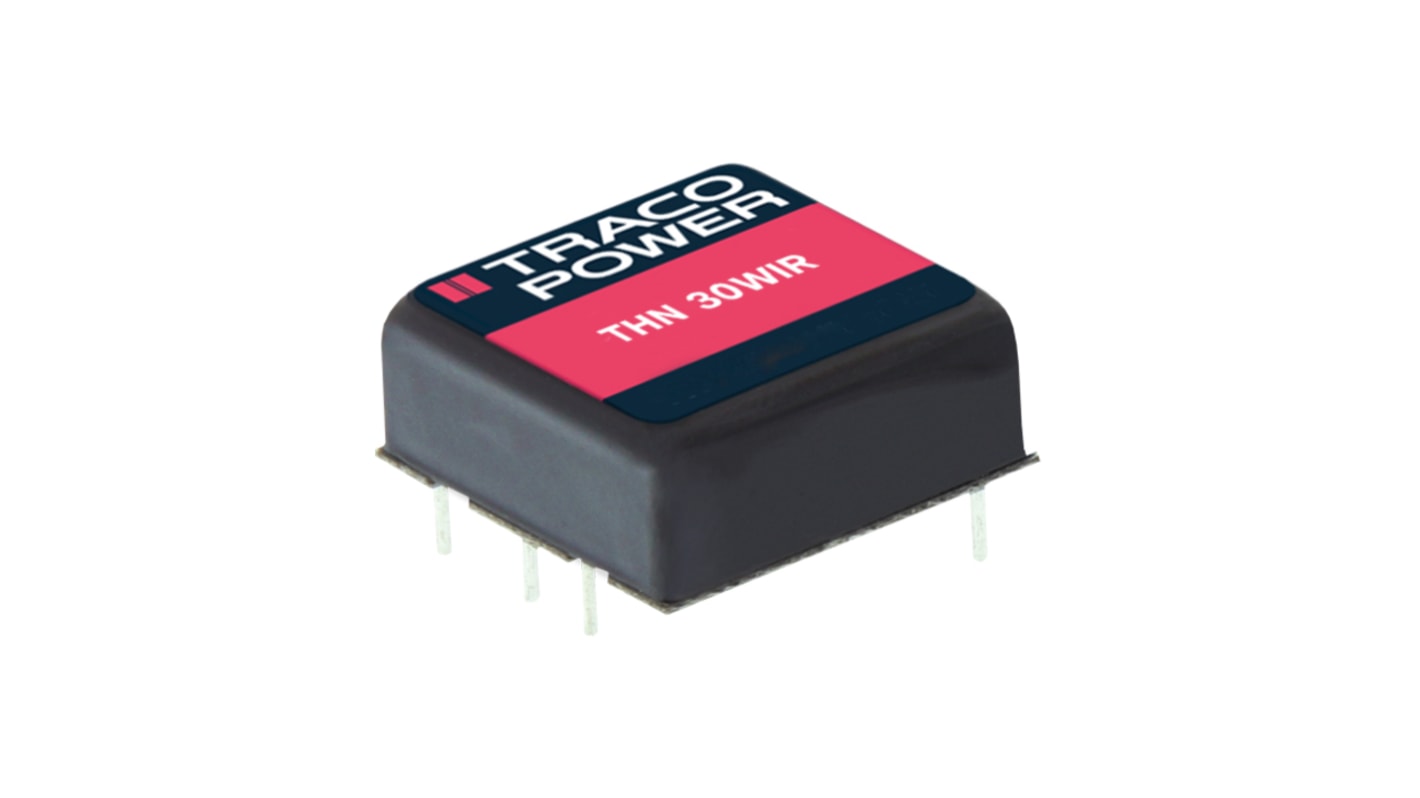

TRACOPOWER THN 30WIR Isolated DC-DC Converter, -24 → 24V dc/ 625/625mA Output, 18 → 75 V dc Input, 30W,
- RS Stock No.:
- 249-7370
- Mfr. Part No.:
- THN 30-4825WIR
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£596.46
(exc. VAT)
£715.75
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 14 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 - 4 | £596.46 | £59.646 |
5 - 9 | £578.56 | £57.856 |
10 - 24 | £560.67 | £56.067 |
25 - 49 | £536.82 | £53.682 |
50 + | £512.95 | £51.295 |
*price indicative
- RS Stock No.:
- 249-7370
- Mfr. Part No.:
- THN 30-4825WIR
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TRACOPOWER | |
Output Voltage | -24 → 24V dc | |
Input Voltage Range | 18 → 75 V dc | |
Power Rating | 30W | |
Input Voltage Nominal | 48 V dc | |
Output Current | 625/625mA | |
Mounting Type | PCB Mount | |
Isolated | Yes | |
Number of Outputs | 2 | |
Output Voltage Adjustment Range | -10 → +20% | |
Package | 1 x 1 in | |
Isolation Voltage | 2.25kV dc | |
Width | 25.4mm | |
Depth | 9.9mm | |
Length | 25.4mm | |
Series | THN 30WIR | |
Railway Approved | Yes | |
Medical Approved | No | |
Efficiency | 92% | |
Maximum Temperature | +80°C | |
Standards Met | EN 62368-1 | |
Minimum Temperature | -40°C | |
Select all | ||
---|---|---|
Brand TRACOPOWER | ||
Output Voltage -24 → 24V dc | ||
Input Voltage Range 18 → 75 V dc | ||
Power Rating 30W | ||
Input Voltage Nominal 48 V dc | ||
Output Current 625/625mA | ||
Mounting Type PCB Mount | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Output Voltage Adjustment Range -10 → +20% | ||
Package 1 x 1 in | ||
Isolation Voltage 2.25kV dc | ||
Width 25.4mm | ||
Depth 9.9mm | ||
Length 25.4mm | ||
Series THN 30WIR | ||
Railway Approved Yes | ||
Medical Approved No | ||
Efficiency 92% | ||
Maximum Temperature +80°C | ||
Standards Met EN 62368-1 | ||
Minimum Temperature -40°C | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- TW
TRACOPOWER THN 30WIR Series Isolated DC-DC Converter, -24 to 24V DC Output Voltage, 30W Power Rating - THN 30-4825WIR
This isolated DC-DC converter is designed for applications that require high durability in rigorous environments. With an output power of 30W and a broad input voltage range of 18 to 75V DC, it meets the strict requirements of industrial automation and railway applications. Its compact encapsulation enhances thermal and mechanical robustness, making it suitable for challenging conditions.
Features & Benefits
• Delivers a 30W output for various industrial uses
• Operates with up to 92% conversion efficiency
• Supports a wide input voltage range for versatility
• Provides 2250V DC isolation for added safety
• Includes short-circuit and overvoltage protection
• Features remote control functionality for flexible management
• Operates with up to 92% conversion efficiency
• Supports a wide input voltage range for versatility
• Provides 2250V DC isolation for added safety
• Includes short-circuit and overvoltage protection
• Features remote control functionality for flexible management
Applications
• Suitable for railway electronics requiring dependable power
• Ideal for PCB mounting in automation systems
• Applicable in situations needing a resilient power supply
• Supports control systems with precise voltage regulation
• Functions effectively in environments with high electromagnetic interference
• Ideal for PCB mounting in automation systems
• Applicable in situations needing a resilient power supply
• Supports control systems with precise voltage regulation
• Functions effectively in environments with high electromagnetic interference
What are the temperature limits for operation?
The unit operates effectively in ambient temperatures from -40 to +80°C, ensuring dependability in various conditions.
How can I adjust the output voltage?
Output voltage can be adjusted within -10% to +20% using an external trim resistor, allowing for customised voltage levels.
Is it suitable for use in electric transportation systems?
Yes, it is certified for railway applications, making it appropriate for electric transportation systems and similar settings.
What considerations should I take when mounting?
Ensure sufficient space for natural convection cooling and that the mounting surface can withstand operating temperatures.
