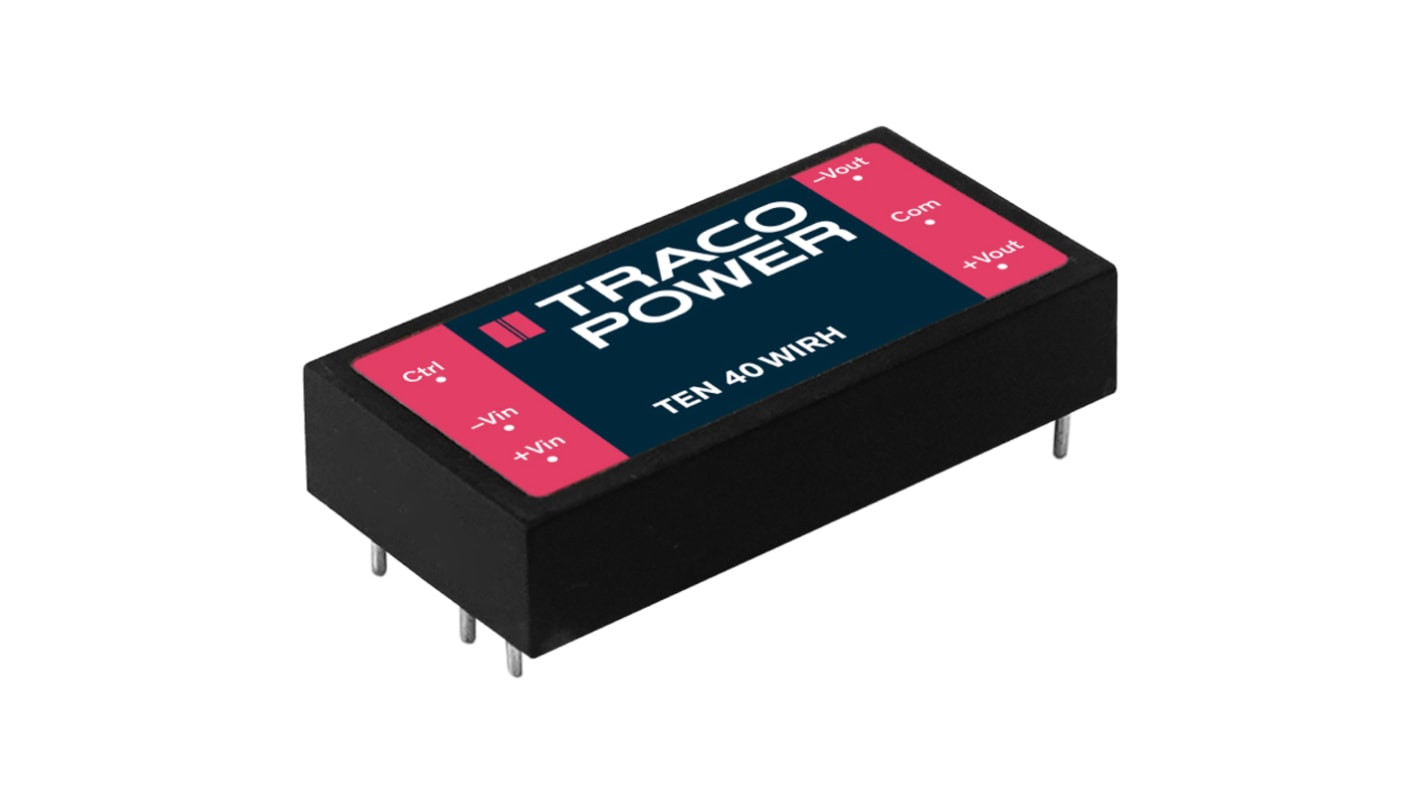

TRACOPOWER TEN 40WIRH Isolated DC-DC Converter, 12V dc/ 1666 mA, 160V dc Input, 36V Input 40 W, PCB, 70 °C Max Temp -40
- RS Stock No.:
- 249-7315
- Mfr. Part No.:
- TEN 40-11022WIRH
- Brand:
- TRACOPOWER
Subtotal (1 tube of 10 units)*
£467.43
(exc. VAT)
£560.92
(inc. VAT)
Stock information currently inaccessible - Please check back later
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £467.43 | £46.743 |
*price indicative
- RS Stock No.:
- 249-7315
- Mfr. Part No.:
- TEN 40-11022WIRH
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage 1 | 12V dc | |
| Product Type | Isolated DC-DC Converter | |
| Maximum Input Voltage | 160V dc | |
| Minimum Input Voltage | 36V | |
| Output Current 1 | 1666mA | |
| Output Current 2 | -1666mA | |
| Output Voltage 2 | 12V dc | |
| Mount Type | PCB | |
| Input Ratio | 4:1 | |
| MTBF | 1253000h | |
| Number of Outputs | 2 | |
| Output Voltage Adjustment Range | 10 % | |
| Isolation Voltage | 3kV dc | |
| Number of Pins | 6 | |
| Package Type | Encapsulated | |
| Maximum Output Power | 40W | |
| Length | 50.8mm | |
| Standards/Approvals | No | |
| Width | 25.4mm | |
| Series | TEN 40WIRH | |
| Depth | 10.2mm | |
| Maximum Operating Temperature | 70°C | |
| Minimum Operating Temperature | -40°C | |
| Efficiency | 88% | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 1 12V dc | ||
Product Type Isolated DC-DC Converter | ||
Maximum Input Voltage 160V dc | ||
Minimum Input Voltage 36V | ||
Output Current 1 1666mA | ||
Output Current 2 -1666mA | ||
Output Voltage 2 12V dc | ||
Mount Type PCB | ||
Input Ratio 4:1 | ||
MTBF 1253000h | ||
Number of Outputs 2 | ||
Output Voltage Adjustment Range 10 % | ||
Isolation Voltage 3kV dc | ||
Number of Pins 6 | ||
Package Type Encapsulated | ||
Maximum Output Power 40W | ||
Length 50.8mm | ||
Standards/Approvals No | ||
Width 25.4mm | ||
Series TEN 40WIRH | ||
Depth 10.2mm | ||
Maximum Operating Temperature 70°C | ||
Minimum Operating Temperature -40°C | ||
Efficiency 88% | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TW
TRACOPOWER TEN 40WIRH Series Isolated DC-DC Converter, 36 to 160V DC Input Voltage Range, 40W - TEN 40-11022WIRH
This isolated DC-DC converter is designed for railway applications, providing reliable power in harsh environments. With a compact footprint of 50.8mm x 25.4mm and a height of 10.2mm, it integrates into various systems. It supports an input voltage range of 36 to 160V DC and delivers an adjustable output voltage from -12V to +12V.
Features & Benefits
• 3 kV isolation for safety and reliability
• Adjustable output voltage for customised power delivery
• PCB mount design for easy installation in compact spaces
• Efficiency rating of 88% reduces energy loss
Applications
• Ideal for railway power distribution systems
• Can be used for control circuits in automation equipment
• Suitable for medical equipment power management
Can it operate within a wide temperature range?
Yes, it functions effectively between -40°C and +70°C.
Can adjustments be made to the output voltage?
Yes, the output voltage can be adjusted within ±10%.
