TRACOPOWER THR 40WI Isolated DC-DC Converter, 5V dc/ 8000 mA, 160V dc Input, 36V Input 40 W, PCB, 80 °C Max Temp -40 °C

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 10 units)*

£654.10

(exc. VAT)

£784.90

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Stock information currently inaccessible - Please check back later
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
Per Tube*
10 - 40£65.41£654.10
50 - 90£63.448£634.48
100 - 240£61.485£614.85
250 - 490£58.869£588.69
500 +£56.253£562.53

*price indicative

RS Stock No.:
249-5538
Mfr. Part No.:
THR 40-7211WI
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Product Type

Isolated DC-DC Converter

Output Voltage 1

5V dc

Minimum Input Voltage

36V

Maximum Input Voltage

160V dc

Output Current 1

8000mA

Mount Type

PCB

Input Ratio

4:1

MTBF

900000h

Number of Outputs

5

Output Voltage Adjustment Range

5 %

Isolation Voltage

3000V dc

Number of Pins

6

Maximum Output Power

40W

Length

50.8mm

Standards/Approvals

No

Depth

11mm

Series

THR 40WI

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

80°C

Efficiency

88%

RoHS Status: Exempt

COO (Country of Origin):
TW

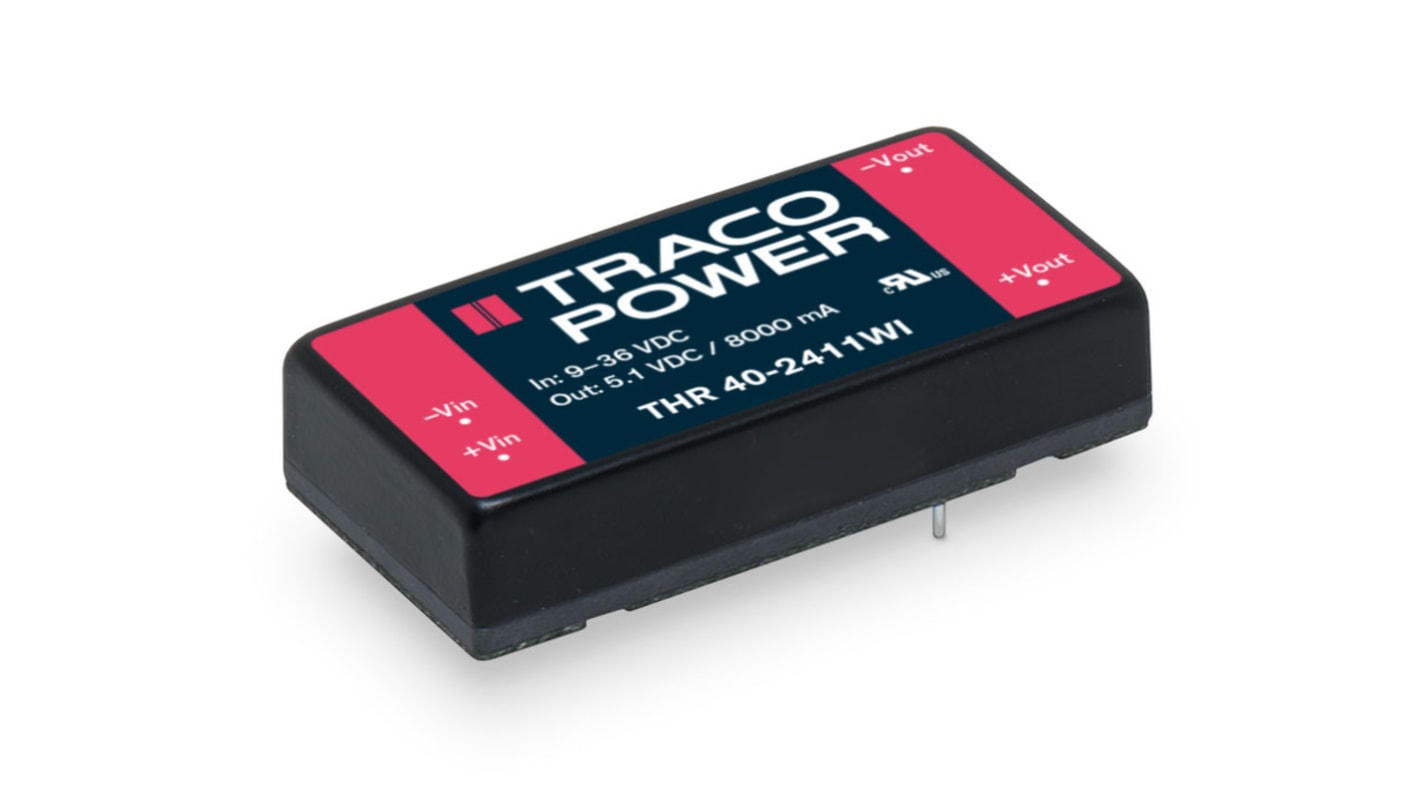

The TRACOPOWER the THR 40WI is 40 Watt DC/DC converters series with reinforced isolation (3000 VAC). These regulated DC/DC converters come in either a 2"x1" package and also feature increased resistance against shock and vibration according to EN 61373. High efficiencies up to 90% allow safe operation from –40°C to +70°C (with derating).

Reinforced I/O-isolation 3000 VAC

Shock and vibration resistance

according to EN 61373

Wide 4:1 input voltage range: 9-36,18-75, 40-160 VDC

Operating temperature range -40 to +85°C

Internal EN 55032 class A filter

High efficiency up to 88%

Protection against overload, overvoltage and short circuit

3-year product warranty
