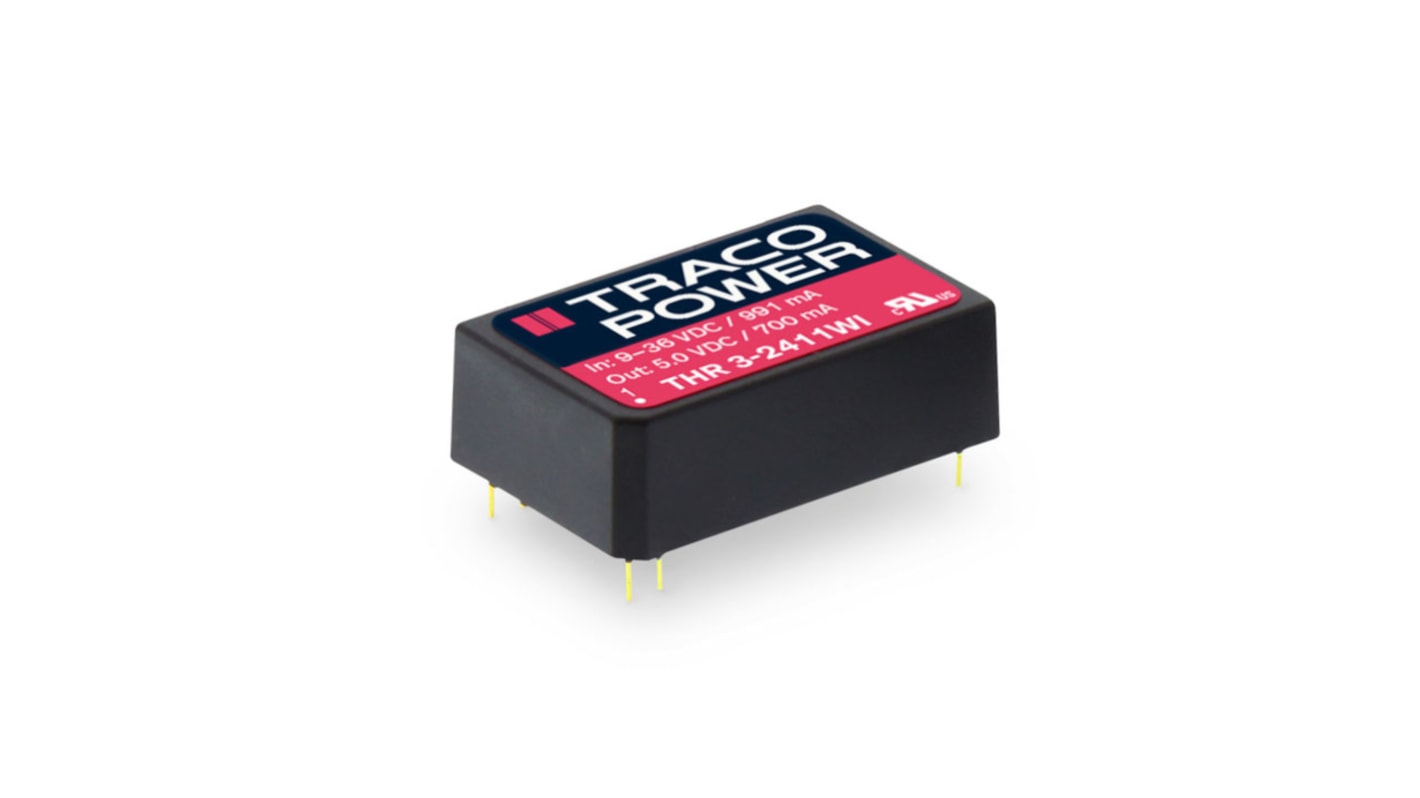

TRACOPOWER THR 3WI Isolated DC-DC Converter, 5V dc/ 600mA Output, 9 → 36 V dc Input, 3W, PCB, +92°C Max Temp
- RS Stock No.:
- 249-5506
- Mfr. Part No.:
- THR 3-2411WI
- Brand:
- TRACOPOWER
Available to back order for despatch when stock is available
Price Each (In a Tube of 10)
£214.51
(exc. VAT)
£257.41
(inc. VAT)
Units | Per unit | Per Tube* |
---|---|---|
1 - 4 | £214.51 | £2,145.10 |
5 - 9 | £208.07 | £2,080.70 |
10 - 24 | £201.64 | £2,016.40 |
25 - 49 | £193.06 | £1,930.60 |
50 + | £184.48 | £1,844.80 |
*price indicative
- RS Stock No.:
- 249-5506
- Mfr. Part No.:
- THR 3-2411WI
- Brand:
- TRACOPOWER
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- TW
Product Details
TRACOPOWER THR 3WI Series Isolated DC-DC Converter, 3 kV DC Isolation Voltage, 3 W Power Rating - THR 3-2411WI
This TRACOPOWER isolated DC-DC converter is designed to provide reliable power conversion with a wide input voltage range. With a 3W power rating and high efficiency, this converter ensures stable performance in industrial applications.
Features & Benefits
• Reinforced I/O-isolation of 3000 V AC for enhanced safety
• Wide input voltage range of 9-36 V DC, 18-75 V DC, 40-160 V DC for versatile operation
• Operating temperature range of -40°C to +92°C for extreme conditions
• High efficiency up to 85% for energy-saving performance
• Protection against overload, overvoltage, and short circuit for uninterrupted operation
• Wide input voltage range of 9-36 V DC, 18-75 V DC, 40-160 V DC for versatile operation
• Operating temperature range of -40°C to +92°C for extreme conditions
• High efficiency up to 85% for energy-saving performance
• Protection against overload, overvoltage, and short circuit for uninterrupted operation
Applications
• Industrial automation systems
• Electrical control panels
• Transportation equipment
• Electrical control panels
• Transportation equipment
Can it handle a wide range of input voltages?
Yes, it is designed to accept input voltages from 9 to 36 VDC, 18 to 75 VDC, and 40 to 160 VDC.
Will it operate in extreme temperature conditions?
Yes, this converter can operate in temperatures ranging from -40°C to +92°C.
Is it suitable for use in industrial applications?
Yes, this isolated DC-DC converter is ideal for various industrial applications.
Specifications
Attribute | Value |
---|---|
Output Voltage | 5V dc |
Input Voltage Range | 9 → 36 V dc |
Power Rating | 3W |
Input Voltage Nominal | 24 V dc |
Output Current | 600mA |
Mounting Type | PCB |
Isolated | Yes |
Number of Outputs | 1 |
Package | DIP 24 |
Isolation Voltage | 3kV dc |
Length | 20.32mm |
Depth | 20.3mm |
Width | 12mm |
Railway Approved | No |
Series | THR 3WI |
Load Regulation | 0.5% |
Maximum Temperature | +92°C |
Efficiency | 80% |
Minimum Temperature | -40°C |
Medical Approved | No |
Standards Met | IEC/EN 62368-1 |
