TRACOPOWER THR 3WI Isolated DC-DC Converter, 12V dc/ 250 mA, 75V dc Input, 18V Input 10 W, Through Hole, 92 °C Max Temp

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 10 units)*

£203.00

(exc. VAT)

£243.60

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 17 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
Per Tube*
10 - 40£20.30£203.00
50 - 90£19.691£196.91
100 - 240£19.082£190.82
250 - 490£18.27£182.70
500 +£17.458£174.58

*price indicative

RS Stock No.:
249-5519
Mfr. Part No.:
THR 3-4812WI
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Output Voltage 1

12V dc

Product Type

Isolated DC-DC Converter

Maximum Input Voltage

75V dc

Minimum Input Voltage

18V

Output Current 1

250mA

Mount Type

Through Hole

Input Ratio

4:1

MTBF

3360000h

Number of Outputs

5

Isolation Voltage

3kV dc

Number of Pins

7

Maximum Output Power

10W

Package Type

DIP-24

Depth

12mm

Length

31.8mm

Series

THR 3WI

Standards/Approvals

No

Maximum Operating Temperature

92°C

Minimum Operating Temperature

-40°C

Efficiency

83%

RoHS Status: Exempt

COO (Country of Origin):
TW

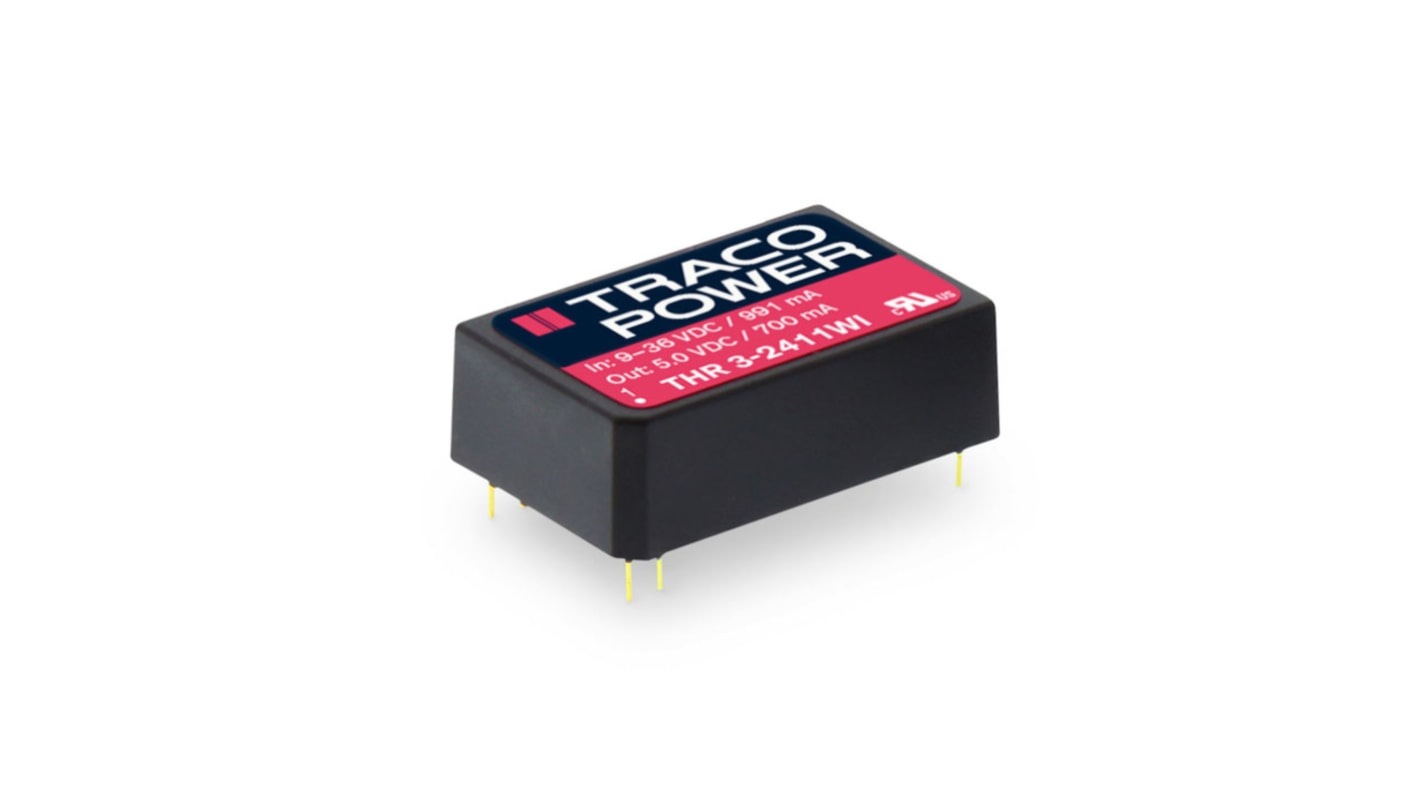

The TRACOPOWER the THR 3WI is 3 Watt DC/DC converters series with reinforced isolation (3000 VAC). These regulated DC/DC converters come in either a DIP-24 package and also feature increased resistance against shock and vibration according to EN 61373. The THR 3WI offers an internal input filter to comply with EN 55032 class A

Reinforced I/O-isolation 3000 VAC

Shock and vibration resistance according to EN 61373

Wide 4:1 input voltage range: 9-36, 18-75, 40-160 VDC

Operating temperature range -40 to +92°C

Internal EN 55032 class A filter

High efficiency up to 85%

Protection against overload, overvoltage and short circuit

3-year product warranty
