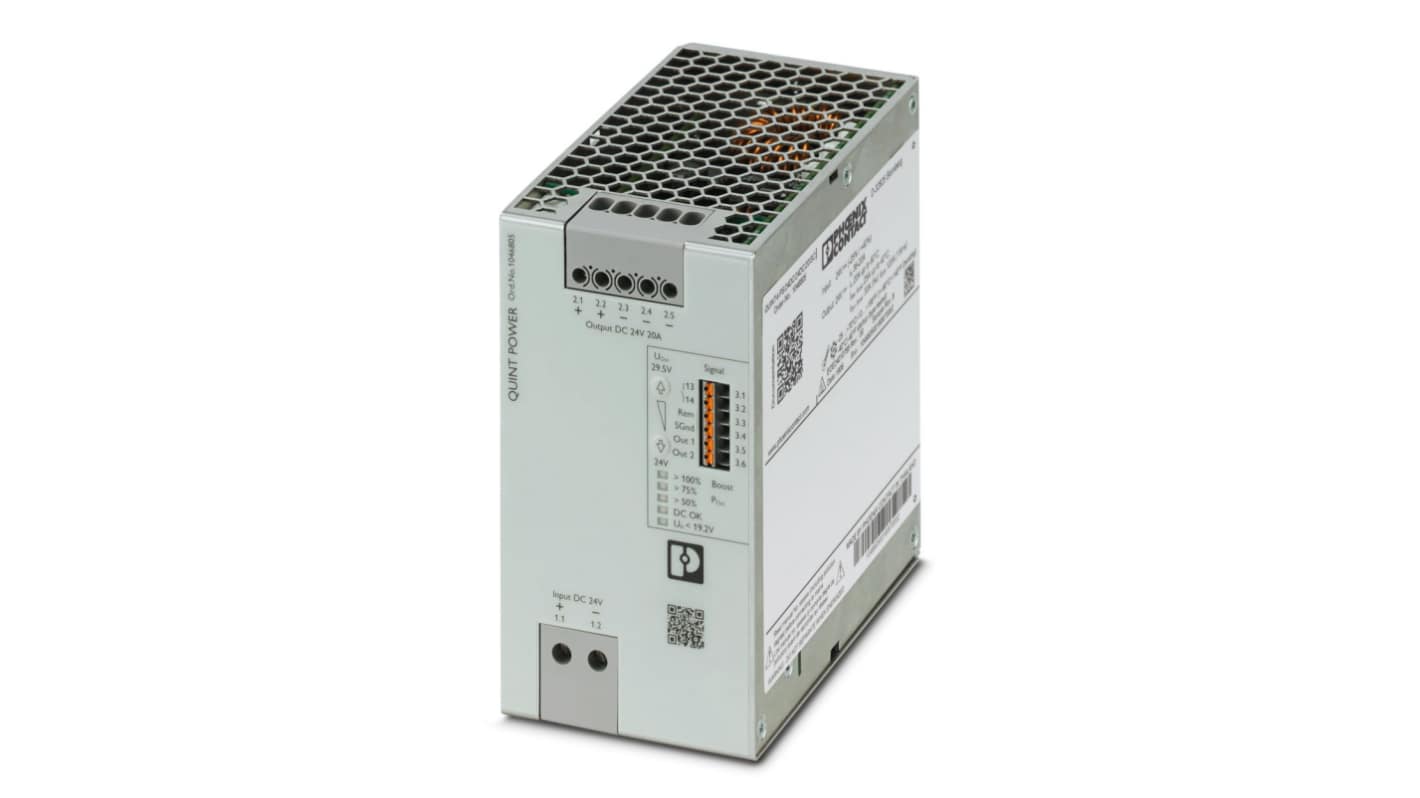

Phoenix Contact QUINT4 DC/DC Converter, 24V dc/ 20 A, 32V dc Input, 24V dc Input, DIN Rail, 70 °C Max Temp -25 °C Min
- RS Stock No.:
- 240-0989
- Distrelec Article No.:
- 303-09-449
- Mfr. Part No.:
- 1046805
- Brand:
- Phoenix Contact
Bulk discount available
Subtotal (1 unit)*
£460.08
(exc. VAT)
£552.10
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 03 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £460.08 |
| 5 - 9 | £446.28 |
| 10 - 24 | £432.48 |
| 25 - 49 | £418.68 |
| 50 + | £404.87 |
*price indicative
- RS Stock No.:
- 240-0989
- Distrelec Article No.:
- 303-09-449
- Mfr. Part No.:
- 1046805
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 24V dc | |
| Maximum Input Voltage | 32V dc | |
| Minimum Input Voltage | 24V dc | |
| Output Current 1 | 20A | |
| Mount Type | DIN Rail | |
| MTBF | 1034000h | |
| Output Voltage Adjustment Range | 24 to 29.5 V dc | |
| Ripple and Noise | 50mV Pk-Pk | |
| Isolation Voltage | 4kV | |
| Standards/Approvals | EN 61000-6-5, EN 61010-1, EN 61000-6-1, IEC 61010-2-201, EN 61000-6-2, EN 61000-4-29, IEC 61850-3, IEC 61010-1 | |
| Weight | 1.2kg | |
| Depth | 125mm | |
| Length | 130mm | |
| Series | QUINT4 | |
| Width | 70mm | |
| Maximum Operating Temperature | 70°C | |
| Minimum Operating Temperature | -25°C | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type DC/DC Converter | ||
Output Voltage 1 24V dc | ||
Maximum Input Voltage 32V dc | ||
Minimum Input Voltage 24V dc | ||
Output Current 1 20A | ||
Mount Type DIN Rail | ||
MTBF 1034000h | ||
Output Voltage Adjustment Range 24 to 29.5 V dc | ||
Ripple and Noise 50mV Pk-Pk | ||
Isolation Voltage 4kV | ||
Standards/Approvals EN 61000-6-5, EN 61010-1, EN 61000-6-1, IEC 61010-2-201, EN 61000-6-2, EN 61000-4-29, IEC 61850-3, IEC 61010-1 | ||
Weight 1.2kg | ||
Depth 125mm | ||
Length 130mm | ||
Series QUINT4 | ||
Width 70mm | ||
Maximum Operating Temperature 70°C | ||
Minimum Operating Temperature -25°C | ||
The Phoenix Contact QUINT DC/DC converter has easy system expansion, reliable heavy load start-up and miniature circuit breaker tripping. Its preventive function monitoring reports critical operating states before errors occur.
Connection method screw connection
Stripping length 18 mm
Mounting type DIN rail
Input voltage range 18 V DC - 32 V DC
Switch-on time < 1 s
