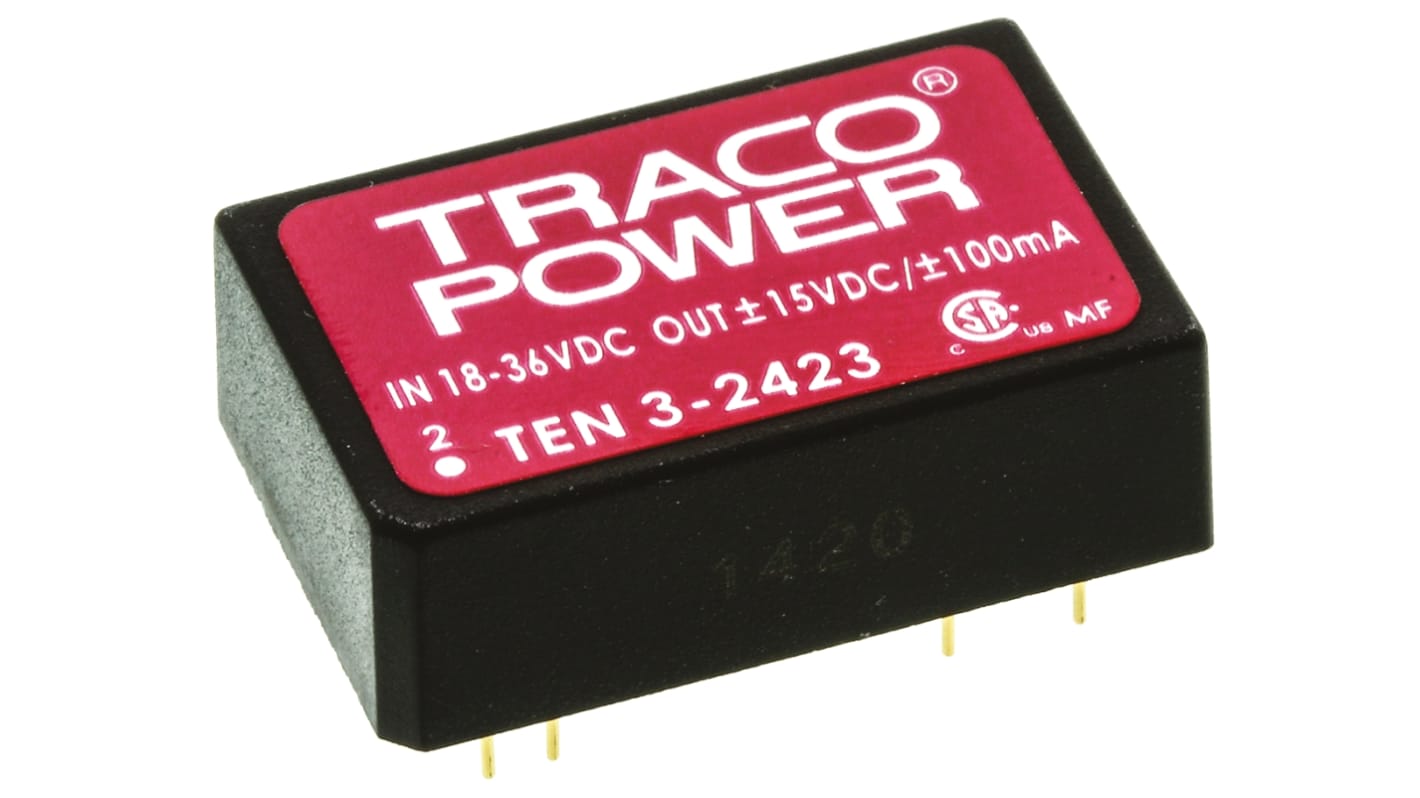

TRACOPOWER TEN 3 DC/DC Converter, 15V, -15 V/ 100 mA, 36V dc Input, 18V Input 3 W, PCB, 85 °C Max Temp -40 °C Min Temp,
- RS Stock No.:
- 217-6783
- Mfr. Part No.:
- TEN 3-2423
- Brand:
- TRACOPOWER
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£16.59
(exc. VAT)
£19.91
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 15 unit(s) shipping from 11 June 2026
- Plus 2 unit(s) shipping from 18 June 2026
- Plus 20 unit(s) shipping from 24 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £16.59 |
| 5 - 9 | £16.10 |
| 10 - 24 | £15.59 |
| 25 - 49 | £14.94 |
| 50 + | £14.27 |
*price indicative
- RS Stock No.:
- 217-6783
- Mfr. Part No.:
- TEN 3-2423
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage 1 | 15, -15V | |
| Product Type | DC/DC Converter | |
| Minimum Input Voltage | 18V | |
| Maximum Input Voltage | 36V dc | |
| Output Current 1 | 100mA | |
| Output Current 2 | 100mA | |
| Mount Type | PCB | |
| Input Ratio | 2:1 | |
| Number of Outputs | 2 | |
| MTBF | 700000h | |
| Output Voltage Adjustment Range | 18/36 V | |
| Number of Pins | 24 | |
| Isolation Voltage | 1.5kV dc | |
| Maximum Output Power | 3W | |
| Package Type | Surface Mount | |
| Depth | 10.2mm | |
| Length | 32mm | |
| Standards/Approvals | No | |
| Series | TEN 3 | |
| Maximum Operating Temperature | 85°C | |
| Minimum Operating Temperature | -40°C | |
| Efficiency | 82% | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 1 15, -15V | ||
Product Type DC/DC Converter | ||
Minimum Input Voltage 18V | ||
Maximum Input Voltage 36V dc | ||
Output Current 1 100mA | ||
Output Current 2 100mA | ||
Mount Type PCB | ||
Input Ratio 2:1 | ||
Number of Outputs 2 | ||
MTBF 700000h | ||
Output Voltage Adjustment Range 18/36 V | ||
Number of Pins 24 | ||
Isolation Voltage 1.5kV dc | ||
Maximum Output Power 3W | ||
Package Type Surface Mount | ||
Depth 10.2mm | ||
Length 32mm | ||
Standards/Approvals No | ||
Series TEN 3 | ||
Maximum Operating Temperature 85°C | ||
Minimum Operating Temperature -40°C | ||
Efficiency 82% | ||
- COO (Country of Origin):
- TW
Traco Power DC-DC Converter, DIP-24 Package, 1% Load Voltage Regulation - TEN 3 Series - TEN 3-2423
When a consistent source of power's key, step down your electrical supply with this regulated DC-DC converter from Traco Power. Its 2:1 range means it accepts any voltage between 18 and 36V DC and outputs ±15V DC which makes charging your battery-powered devices a piece of cake. Tight line regulation up to 0.5% and load regulation up to 1% takes the hassle out of maintaining your required voltages, too. You can count on a long service life from this reliable unit thanks to a mean time between failures of 1,100,000hrs. The Compact DIP-24 package measures 32 (L) x 10.2mm (W) and has an industry-standard pinout that helps speed up installation on crowded PCBs.
Features & Benefits
• Dual outputs let you charge two devices at once
• Indefinite short-circuit protection with automatic recovery tackles current faults while reducing unnecessary downtime
• Safe handling thanks to non-conductive, non-flammable FR4 plastic housing
• Inputs and outputs isolated to 1.5kV to protect against electrical surges
Applications
• Communications systems
• Industrial automation
• Automotive applications
How efficient is this converter?
The device has an 82% efficiency rating. This means it wastes very little energy as heat, so doesn't need a heatsink and can count on free-air convection to run cool.
Approvals
UL Recognised; EN60950; UL1950
