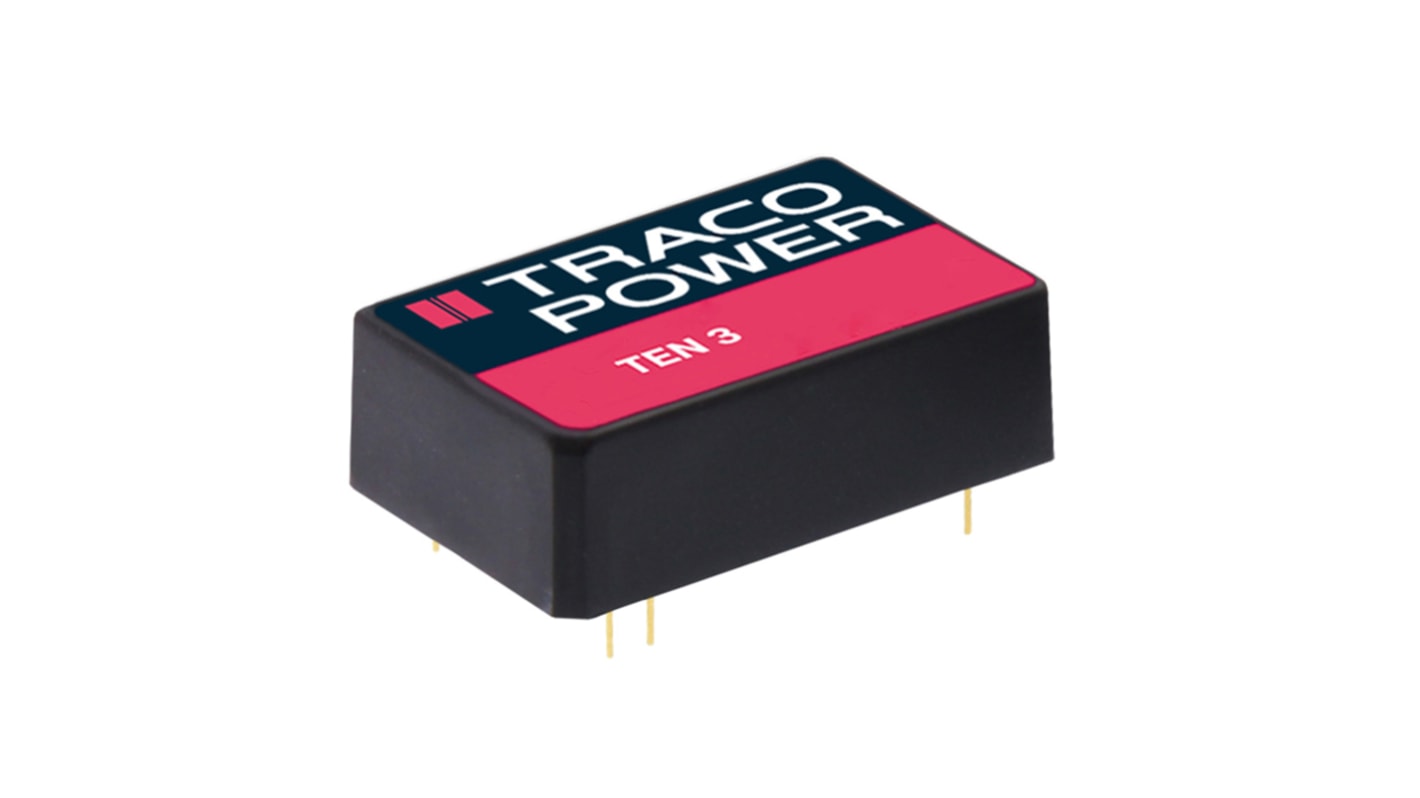

TRACOPOWER TEN 3 DC-DC Converter, ±15V dc/ 100mA Output, 18 → 36 V dc Input, 3W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 124-7603
- Mfr. Part No.:
- TEN 3-2423
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£157.72
(exc. VAT)
£189.26
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
- Plus 1 unit(s) shipping from 13 November 2025
- Plus 3 unit(s) shipping from 18 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 - 4 | £157.72 | £15.772 |
5 - 9 | £152.99 | £15.299 |
10 - 24 | £148.26 | £14.826 |
25 - 49 | £141.94 | £14.194 |
50 + | £135.63 | £13.563 |
*price indicative
- RS Stock No.:
- 124-7603
- Mfr. Part No.:
- TEN 3-2423
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TRACOPOWER | |
Output Voltage | ±15V dc | |
Input Voltage Range | 18 → 36 V dc | |
Power Rating | 3W | |
Input Voltage Nominal | 24 V dc | |
Output Current | 100mA | |
Mounting Type | Through Hole | |
Isolated | Yes | |
Number of Outputs | 2 | |
Package | DIP 24 | |
Isolation Voltage | 1.5kV dc | |
Depth | 10.2mm | |
Length | 32mm | |
Series | TEN 3 | |
Load Regulation | ±2% | |
Maximum Temperature | +85°C | |
Minimum Temperature | -40°C | |
Efficiency | 82% | |
Select all | ||
---|---|---|
Brand TRACOPOWER | ||
Output Voltage ±15V dc | ||
Input Voltage Range 18 → 36 V dc | ||
Power Rating 3W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 100mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package DIP 24 | ||
Isolation Voltage 1.5kV dc | ||
Depth 10.2mm | ||
Length 32mm | ||
Series TEN 3 | ||
Load Regulation ±2% | ||
Maximum Temperature +85°C | ||
Minimum Temperature -40°C | ||
Efficiency 82% | ||
- COO (Country of Origin):
- TW
Traco Power DC-DC Converter, DIP-24 Package, 1% Load Voltage Regulation - TEN 3 Series - TEN 3-2423
When a consistent source of power's key, step down your electrical supply with this regulated DC-DC converter from Traco Power. Its 2:1 range means it accepts any voltage between 18 and 36V DC and outputs ±15V DC which makes charging your battery-powered devices a piece of cake. Tight line regulation up to 0.5% and load regulation up to 1% takes the hassle out of maintaining your required voltages, too. You can count on a long service life from this reliable unit thanks to a mean time between failures of 1,100,000hrs. The compact DIP-24 package measures 32 (L) x 10.2mm (W) and has an industry-standard pinout that helps speed up installation on crowded PCBs.
Features & Benefits
• Dual outputs let you charge two devices at once
• Indefinite short-circuit protection with automatic recovery tackles current faults while reducing unnecessary downtime
• Safe handling thanks to non-conductive, non-flammable FR4 plastic housing
• Inputs and outputs isolated to 1.5kV to protect against electrical surges
• Indefinite short-circuit protection with automatic recovery tackles current faults while reducing unnecessary downtime
• Safe handling thanks to non-conductive, non-flammable FR4 plastic housing
• Inputs and outputs isolated to 1.5kV to protect against electrical surges
Applications
• Communications systems
• Industrial automation
• Automotive applications
• Industrial automation
• Automotive applications
How efficient is this converter?
The device has an 82% efficiency rating. This means it wastes very little energy as heat, so doesn't need a heatsink and can count on free-air convection to run cool.
Approvals
UL Recognised; EN60950; UL1950
