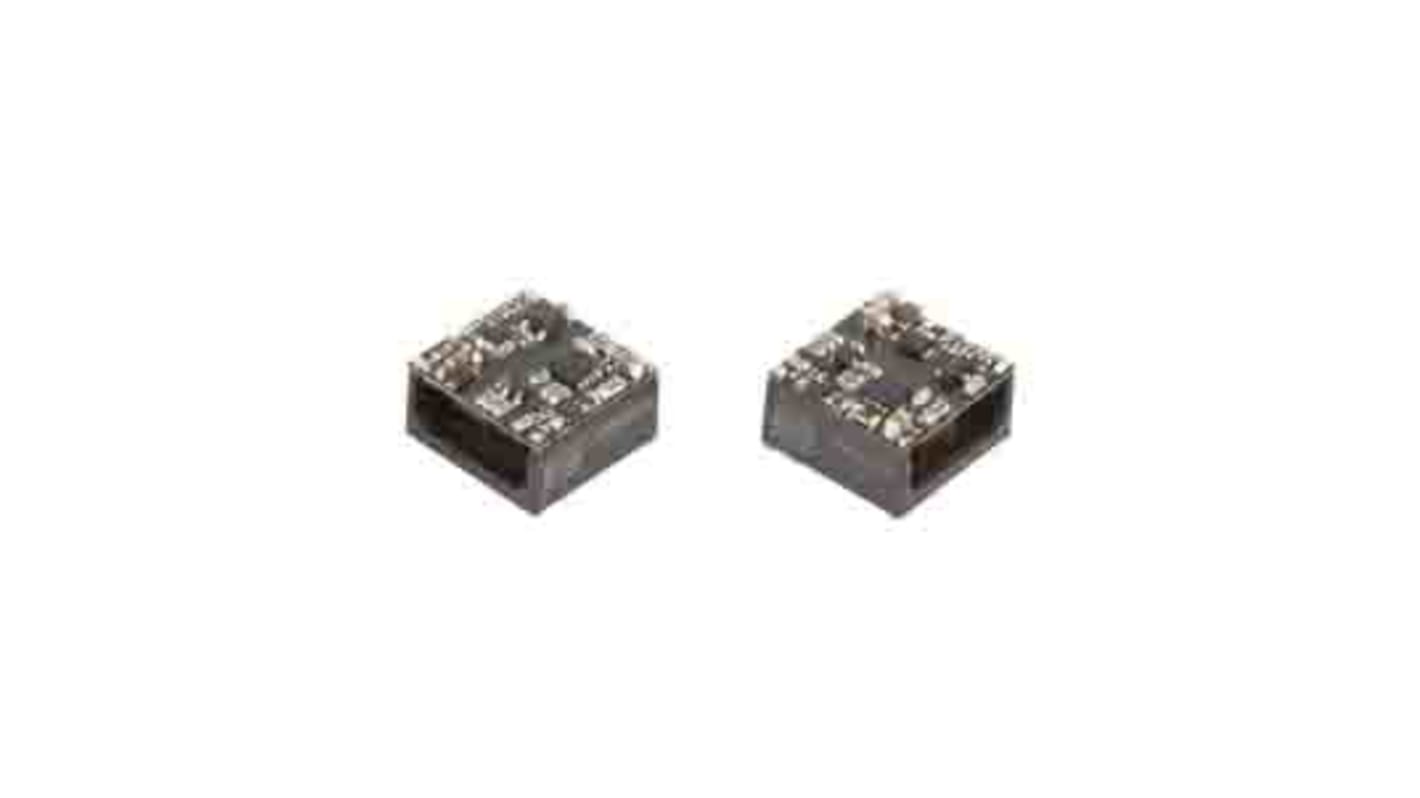

XP Power ISV02 DC/DC Converter, 5V dc/ 400 mA, 18V dc Input, 4.5V Input 2 W, Surface, 75 °C Max Temp -40 °C Min Temp,
- RS Stock No.:
- 213-4150
- Distrelec Article No.:
- 301-83-623
- Mfr. Part No.:
- ISV0212S05
- Brand:
- XP Power
Bulk discount available
Subtotal (1 unit)*
£11.54
(exc. VAT)
£13.85
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 4 | £11.54 |
| 5 - 9 | £11.20 |
| 10 - 24 | £10.85 |
| 25 - 49 | £10.50 |
| 50 + | £10.16 |
*price indicative
- RS Stock No.:
- 213-4150
- Distrelec Article No.:
- 301-83-623
- Mfr. Part No.:
- ISV0212S05
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 5V dc | |
| Maximum Input Voltage | 18V dc | |
| Minimum Input Voltage | 4.5V | |
| Output Current 1 | 400mA | |
| Mount Type | Surface | |
| Input Ratio | 1:6 | |
| Number of Outputs | 5 | |
| MTBF | 800000h | |
| Ripple and Noise | 100mV Pk-Pk | |
| Output Voltage Adjustment Range | ±5 % | |
| Number of Pins | 6 | |
| Isolation Voltage | 3kV | |
| Package Type | Surface Mount | |
| Maximum Output Power | 2W | |
| Length | 14.65mm | |
| Weight | 2g | |
| Standards/Approvals | No | |
| Width | 14.4mm | |
| Series | ISV02 | |
| Maximum Operating Temperature | 75°C | |
| Minimum Operating Temperature | -40°C | |
| Efficiency | 0.78% | |
| Select all | ||
|---|---|---|
Brand XP Power | ||
Product Type DC/DC Converter | ||
Output Voltage 1 5V dc | ||
Maximum Input Voltage 18V dc | ||
Minimum Input Voltage 4.5V | ||
Output Current 1 400mA | ||
Mount Type Surface | ||
Input Ratio 1:6 | ||
Number of Outputs 5 | ||
MTBF 800000h | ||
Ripple and Noise 100mV Pk-Pk | ||
Output Voltage Adjustment Range ±5 % | ||
Number of Pins 6 | ||
Isolation Voltage 3kV | ||
Package Type Surface Mount | ||
Maximum Output Power 2W | ||
Length 14.65mm | ||
Weight 2g | ||
Standards/Approvals No | ||
Width 14.4mm | ||
Series ISV02 | ||
Maximum Operating Temperature 75°C | ||
Minimum Operating Temperature -40°C | ||
Efficiency 0.78% | ||
The XP Power ISV02 series is a compact SMD, open frame construction providing a cost effective DC-DC converter with high performance features such as 3.0kV isolation, 4:1 input range, remote on/off and high reliability. It has output voltage of 5 V. It is available in single or dual output versions. It is ideally used for signal conditioning and voltage matching.
Continuous short circuit protection
Operating temperature ranges from -40°C to +105°C
