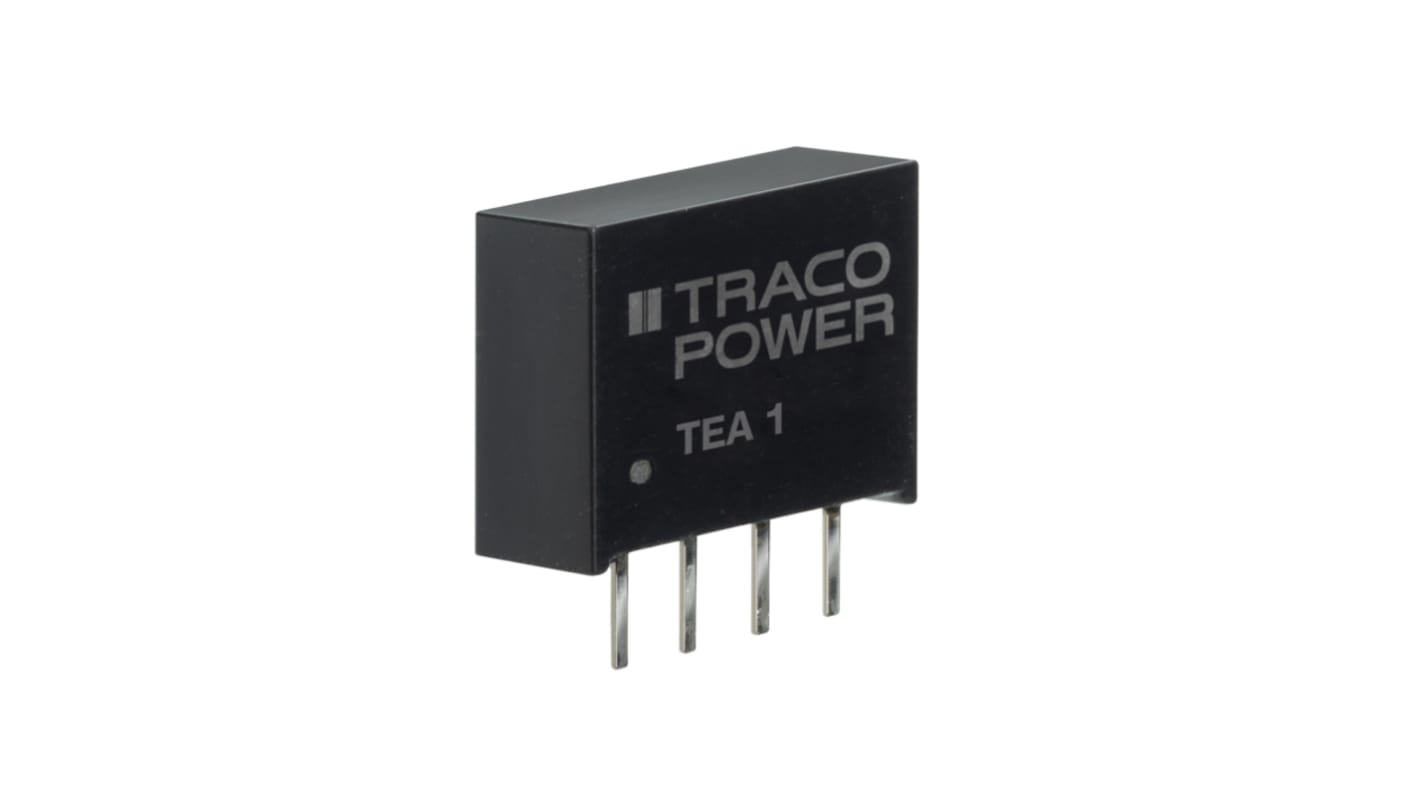

TRACOPOWER TEA 1 DC-DC Converter, 5V dc/ 200mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 204-7569
- Mfr. Part No.:
- TEA 1-0505
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£14.78
(exc. VAT)
£17.74
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 8 unit(s) ready to ship from another location
- Plus 339 unit(s) shipping from 13 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £14.78 | £1.478 |
| 5 - 9 | £14.34 | £1.434 |
| 10 - 24 | £13.89 | £1.389 |
| 25 - 49 | £13.31 | £1.331 |
| 50 + | £12.71 | £1.271 |
*price indicative
- RS Stock No.:
- 204-7569
- Mfr. Part No.:
- TEA 1-0505
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 5V dc | |
| Input Voltage Range | 4.5 → 5.5 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | 5 V dc | |
| Output Current | 200mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Output Voltage Adjustment Range | -3 → 3% | |
| Package | SIP 4 | |
| Isolation Voltage | 1.5kV | |
| Depth | 10.15mm | |
| Width | 6mm | |
| Length | 11.68mm | |
| Series | TEA 1 | |
| Railway Approved | No | |
| Load Regulation | 0.09 | |
| Maximum Temperature | +85°C | |
| Efficiency | 0.78 | |
| Medical Approved | No | |
| Minimum Temperature | -40°C | |
| Standards Met | EN 60950-1 | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 5V dc | ||
Input Voltage Range 4.5 → 5.5 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 5 V dc | ||
Output Current 200mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Output Voltage Adjustment Range -3 → 3% | ||
Package SIP 4 | ||
Isolation Voltage 1.5kV | ||
Depth 10.15mm | ||
Width 6mm | ||
Length 11.68mm | ||
Series TEA 1 | ||
Railway Approved No | ||
Load Regulation 0.09 | ||
Maximum Temperature +85°C | ||
Efficiency 0.78 | ||
Medical Approved No | ||
Minimum Temperature -40°C | ||
Standards Met EN 60950-1 | ||
RoHS Status: Exempt
Traco Power DC-DC Converter, 470μF Maximum Capacitive Load, Continuous Short-Circuit Protection - TEA 1 Series - TEA 1-0505
Want seamless power delivery to your low-voltage PCB-linked components? Trust this DC-DC converter from Traco Power to get the job done. Thanks to a power rating of 1W, it's just the thing for light-duty applications. The module stabilises and cleans the supply signal through its internal capacitor, delivering a balanced and noiseless 5V DC output. Using through-hole mounting, it latches firmly onto your circuit board and hangs on even in vibrating conditions. With a mean time between failures of more than two million operating cycles, you can rely on it to stay on shift for the long run.
Features & Benefits
• Isolation voltage rating of 1.5kV provides protection from sudden power spikes
• Wide operating temperature range of -40°C to +85°C makes it suitable for challenging conditions
• Light weight of 1.6g means it won't put a strain on the circuit board
• Cools by natural convection, so you don't need a heatsink
• Wide operating temperature range of -40°C to +85°C makes it suitable for challenging conditions
• Light weight of 1.6g means it won't put a strain on the circuit board
• Cools by natural convection, so you don't need a heatsink
Applications
• Laptops and desktop computers
• Consumer electronics
• Electrical workshops
• Consumer electronics
• Electrical workshops
Is this converter flame-resistant?
Yes, it stops burning in 10 seconds or less in the event of a fire, so it fits the bill for sensitive applications.
