TRACOPOWER THD 12 DC/DC Converter, 3.3V/ 3.5 A, 75V Input, 36V Input 12 W, Through Hole, 85 °C Max Temp -40 °C Min Temp,
- RS Stock No.:
- 200-8478
- Mfr. Part No.:
- THD 12-4810
- Brand:
- TRACOPOWER
Temporarily out of stock
- RS Stock No.:
- 200-8478
- Mfr. Part No.:
- THD 12-4810
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 3.3V | |
| Minimum Input Voltage | 36V | |
| Maximum Input Voltage | 75V | |
| Output Current 1 | 3.5A | |
| Mount Type | Through Hole | |
| Input Ratio | 2:1 | |
| Number of Outputs | 5 | |
| MTBF | 2000000h | |
| Ripple and Noise | 85mV Pk-Pk | |
| Isolation Voltage | 1.5kV | |
| Number of Pins | 9 | |
| Package Type | DIP | |
| Maximum Output Power | 12W | |
| Length | 31.8mm | |
| Weight | 18g | |
| Standards/Approvals | RoHS | |
| Series | THD 12 | |
| Width | 20.3mm | |
| Depth | 10.2mm | |
| Efficiency | 85% | |
| Maximum Operating Temperature | 85°C | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Product Type DC/DC Converter | ||
Output Voltage 1 3.3V | ||
Minimum Input Voltage 36V | ||
Maximum Input Voltage 75V | ||
Output Current 1 3.5A | ||
Mount Type Through Hole | ||
Input Ratio 2:1 | ||
Number of Outputs 5 | ||
MTBF 2000000h | ||
Ripple and Noise 85mV Pk-Pk | ||
Isolation Voltage 1.5kV | ||
Number of Pins 9 | ||
Package Type DIP | ||
Maximum Output Power 12W | ||
Length 31.8mm | ||
Weight 18g | ||
Standards/Approvals RoHS | ||
Series THD 12 | ||
Width 20.3mm | ||
Depth 10.2mm | ||
Efficiency 85% | ||
Maximum Operating Temperature 85°C | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- TW

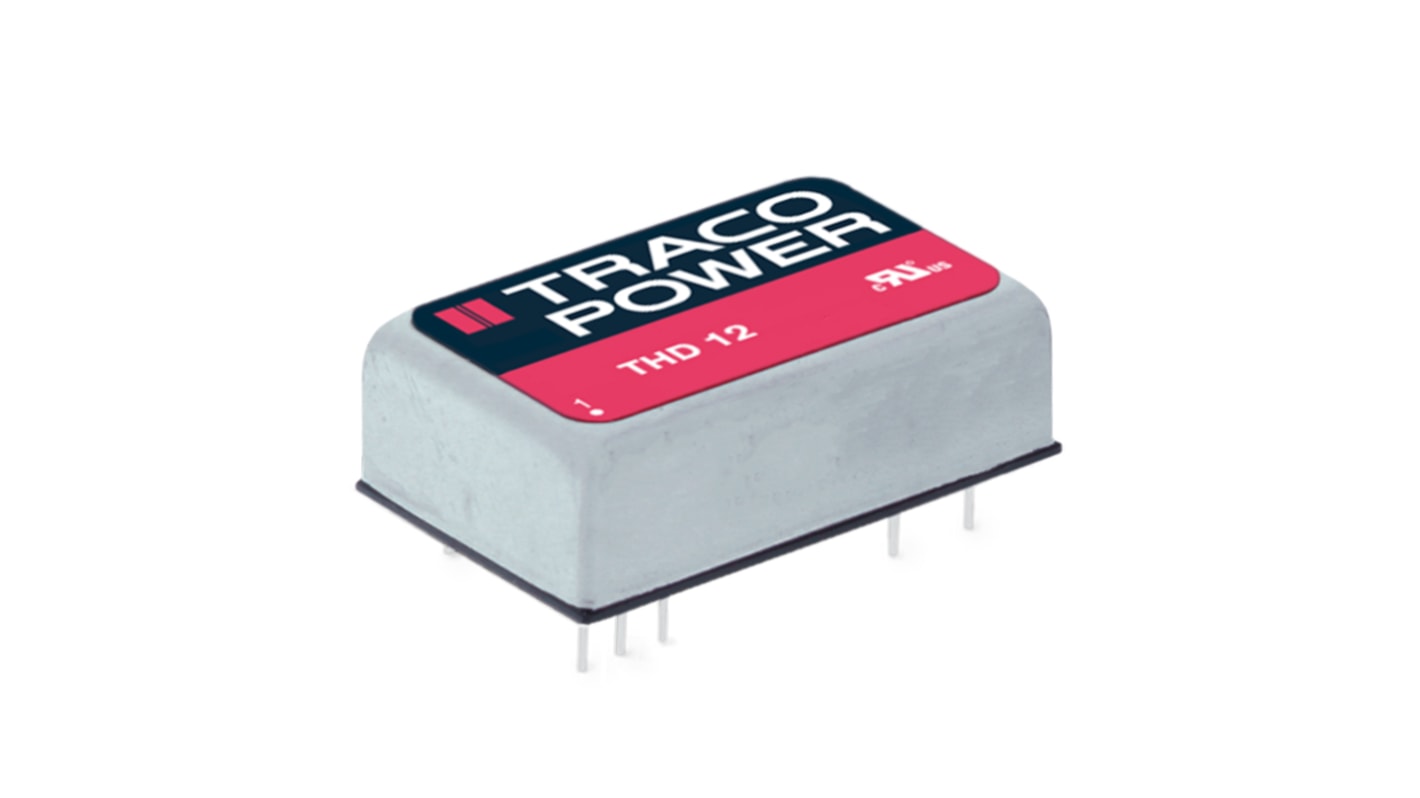

The Traco THD 12-4810 is a high performance, isolated 12W dc/dc converter. Built-in filters for both input and output minimizes the need of external filtering. It is ideal for use in industrial electronics, instrumentation, data communication systems and battery operated equipment with limited space available on the PCB.
Comes in DIP-24 package with standard industry pin-out
Very high efficiency up to 88%
Input filter to meet EN 55022, class A
Under voltage lock-out circuit
Shielded metal case with insulated Baseplate
Continuous short-circuit protection
