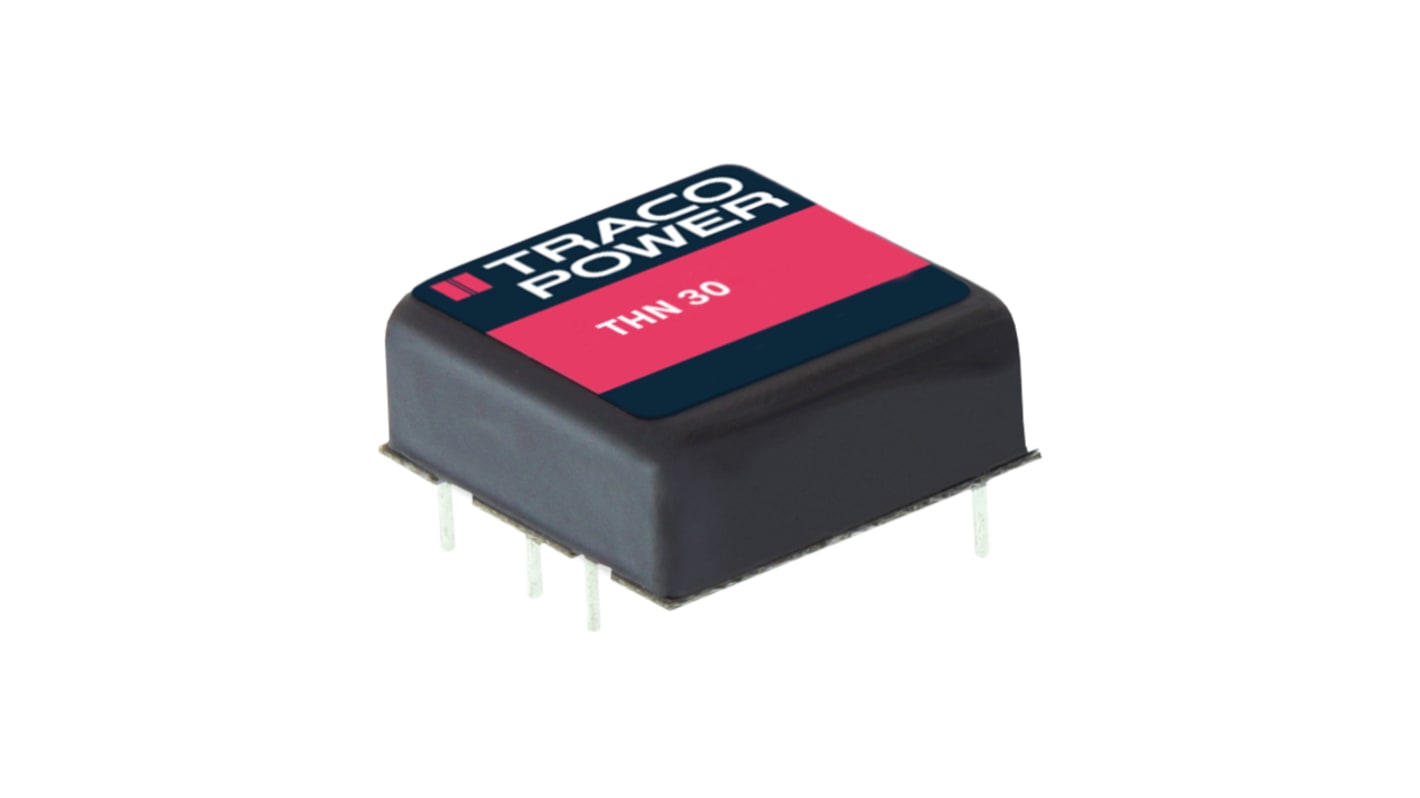

TRACOPOWER THN 30 DC-DC Converter, 3.3V dc/ 7A Output, 36 → 75 V dc Input, 30W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 166-5938
- Mfr. Part No.:
- THN 30-4810
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£632.80
(exc. VAT)
£759.36
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 15 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £632.80 | £63.28 |
| 5 - 9 | £613.82 | £61.382 |
| 10 - 24 | £594.84 | £59.484 |
| 25 - 49 | £569.52 | £56.952 |
| 50 + | £544.21 | £54.421 |
*price indicative
- RS Stock No.:
- 166-5938
- Mfr. Part No.:
- THN 30-4810
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 3.3V dc | |
| Input Voltage Range | 36 → 75 V dc | |
| Power Rating | 30W | |
| Input Voltage Nominal | 48 V dc | |
| Output Current | 7A | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Isolation Voltage | 1.5kV dc | |
| Depth | 9.9mm | |
| Length | 25.4mm | |
| Series | THN 30 | |
| Load Regulation | 0.002 | |
| Minimum Temperature | -40°C | |
| Efficiency | 87% | |
| Maximum Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 3.3V dc | ||
Input Voltage Range 36 → 75 V dc | ||
Power Rating 30W | ||
Input Voltage Nominal 48 V dc | ||
Output Current 7A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Isolation Voltage 1.5kV dc | ||
Depth 9.9mm | ||
Length 25.4mm | ||
Series THN 30 | ||
Load Regulation 0.002 | ||
Minimum Temperature -40°C | ||
Efficiency 87% | ||
Maximum Temperature +85°C | ||
