TRACOPOWER TEN 5 DC/DC Converter, 5V dc/ 1 A, 7V dc Input, 4.5V Input 6 W, Through Hole, 85 °C Max Temp -40 °C Min Temp,
- RS Stock No.:
- 200-8434
- Mfr. Part No.:
- TEN 5-0511
- Brand:
- TRACOPOWER
Bulk discount available
View bulk pricing optionsSubtotal (1 tube of 10 units)*
£290.23
(exc. VAT)
£348.28
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 11 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £290.23 | £29.023 |
| 5 - 9 | £281.53 | £28.153 |
| 10 - 24 | £272.83 | £27.283 |
| 25 - 49 | £261.22 | £26.122 |
| 50 + | £249.61 | £24.961 |
*price indicative
- RS Stock No.:
- 200-8434
- Mfr. Part No.:
- TEN 5-0511
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage 1 | 5V dc | |
| Product Type | DC/DC Converter | |
| Minimum Input Voltage | 4.5V | |
| Maximum Input Voltage | 7V dc | |
| Output Current 1 | 1A | |
| Mount Type | Through Hole | |
| Input Ratio | 2:1 | |
| MTBF | 1000000h | |
| Number of Outputs | 1 | |
| Ripple and Noise | 75mV Pk-Pk | |
| Number of Pins | 8 | |
| Isolation Voltage | 1.5kV dc | |
| Maximum Output Power | 6W | |
| Package Type | DIP | |
| Depth | 10.2mm | |
| Length | 20.3mm | |
| Weight | 16.9g | |
| Standards/Approvals | No | |
| Width | 31.8mm | |
| Series | TEN 5 | |
| Minimum Operating Temperature | -40°C | |
| Efficiency | 79% | |
| Maximum Operating Temperature | 85°C | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 1 5V dc | ||
Product Type DC/DC Converter | ||
Minimum Input Voltage 4.5V | ||
Maximum Input Voltage 7V dc | ||
Output Current 1 1A | ||
Mount Type Through Hole | ||
Input Ratio 2:1 | ||
MTBF 1000000h | ||
Number of Outputs 1 | ||
Ripple and Noise 75mV Pk-Pk | ||
Number of Pins 8 | ||
Isolation Voltage 1.5kV dc | ||
Maximum Output Power 6W | ||
Package Type DIP | ||
Depth 10.2mm | ||
Length 20.3mm | ||
Weight 16.9g | ||
Standards/Approvals No | ||
Width 31.8mm | ||
Series TEN 5 | ||
Minimum Operating Temperature -40°C | ||
Efficiency 79% | ||
Maximum Operating Temperature 85°C | ||
- COO (Country of Origin):
- TW

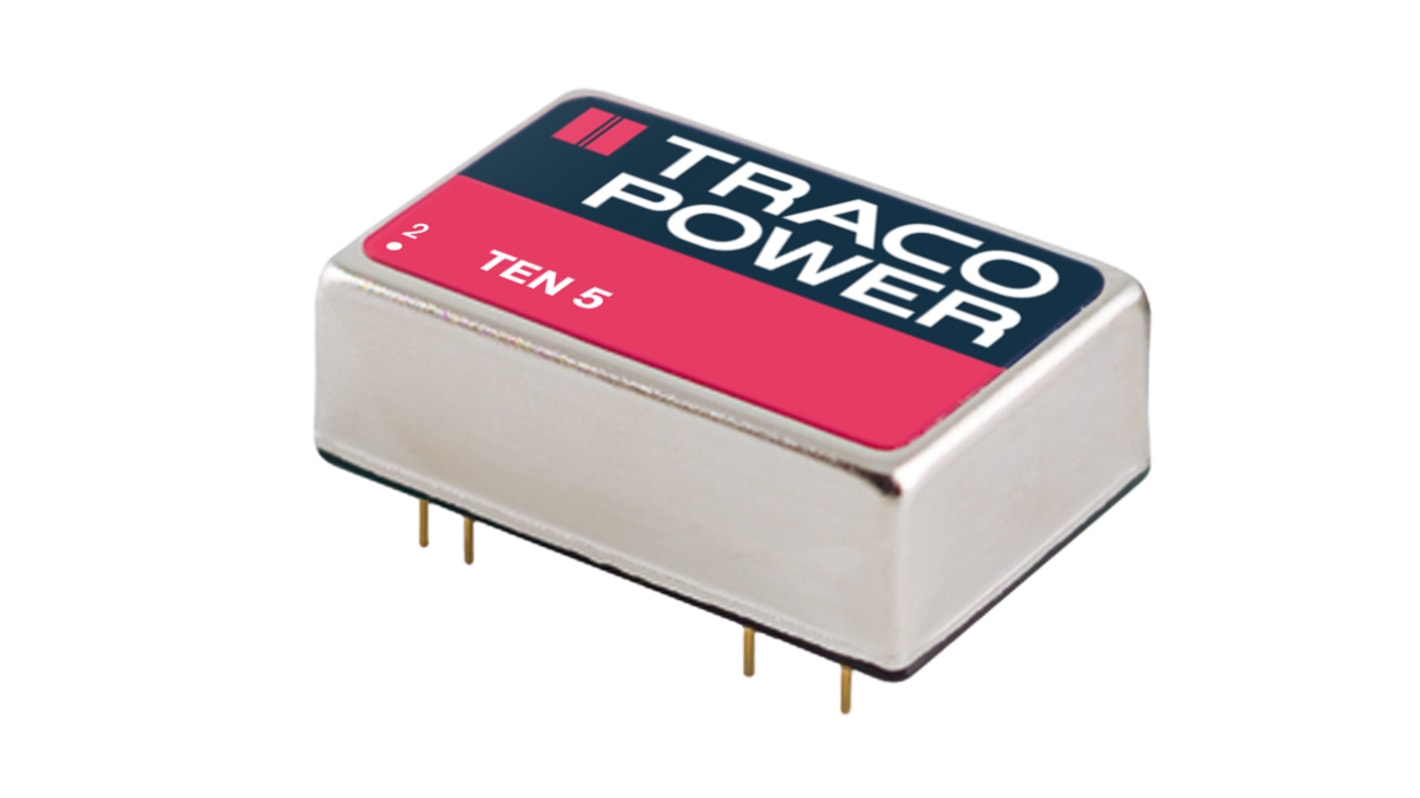

Traco Power DC-DC Converter, Metal Housing, 79% Efficiency - TEN 5 Series - TEN 5-0511
Need a dependable way to deliver power to your PCB-connected parts? Go for this DC-DC converter from Traco Power. It steps down varying input voltages ranging between 4.5 and 7V DC to a stabilised output voltage of 5V DC that's just right for LED lights and solar-powered systems. Thanks to its sturdy metal casing, the unit stands fast against corrosion and impact, making it a reliable pick for demanding industrial settings. Thanks to a 79% efficiency rating, you're assured of optimum productivity with minimal energy loss to heat.
Features & Benefits
• Mean time between failures of more than 1 million hours at +25°C for long-term performance
• Through-hole mounting style achieves a solid connection to your circuit board
• Compact dimensions of 31.8 (L) x 20.3 (W) x 10.2mm (D) for space-efficient installation in small circuits
• Indefinite short-circuit protection prevents electric shocks for improved safety
• Power rating of 5W for use in medium-duty applications
Applications
• Telecommunications industry
• Industrial automation
• Process and packaging systems
Is this DC-DC converter flame-resistant?
Yes, it stops burning in 10 seconds or less in the event of a fire to prevent the spread of flames in your work environment.
