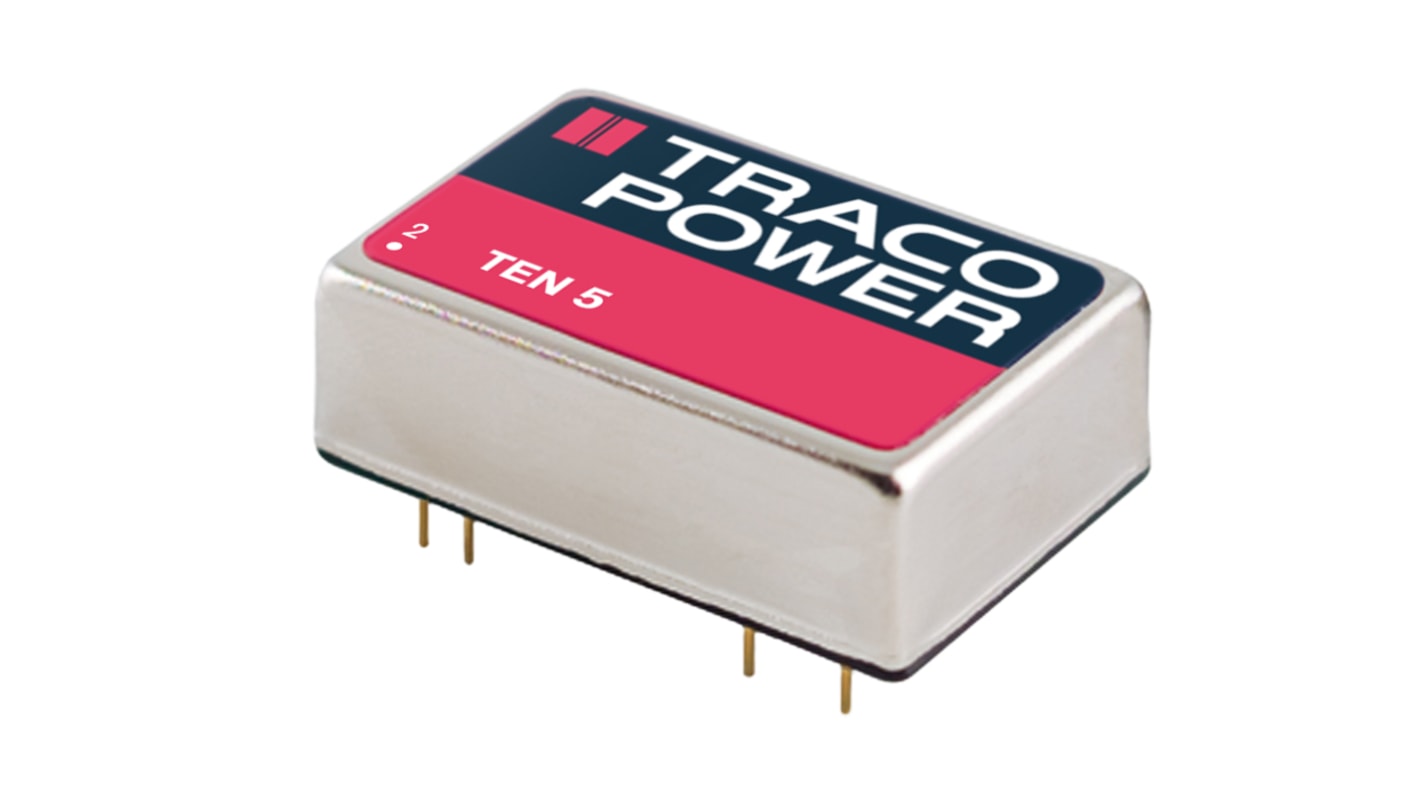

TRACOPOWER TEN 5 DC-DC Converter, 5V dc/ 1A Output, 36 → 72 V dc Input, 6W, Through Hole, +85°C Max Temp -40°C
- RS Stock No.:
- 161-6421
- Mfr. Part No.:
- TEN 5-4811
- Brand:
- TRACOPOWER
1 In stock - FREE next working day delivery available
Price 1 Tube of 10
£220.50
(exc. VAT)
£264.60
(inc. VAT)
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 - 4 | £220.50 | £22.05 |
5 - 9 | £213.89 | £21.389 |
10 - 24 | £207.27 | £20.727 |
25 - 49 | £198.45 | £19.845 |
50 + | £189.63 | £18.963 |
*price indicative
- RS Stock No.:
- 161-6421
- Mfr. Part No.:
- TEN 5-4811
- Brand:
- TRACOPOWER
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Traco 3.96 to 6W DIP Single/Dual Output Regulated Isolated DC-DC Converter - TEN 5 Series
The Traco Power TEN 5 series is a range of isolated, 5 Watt, DC-DC converters in a DIP-24 package with industry-standard footprint. With their high efficiency these regulated converters allows an operating temperature range of -40°C to +75°C. The full SMD design of these DC-DC converters guarantees high reliability. The TEN 5 series comes with built-in EMI input filter and complies with EN 55022 and FCC, level A without external components. Ideal applications of these DC-DC converters are in battery operated equipment, industrial process control systems, tele-data communication and any other application requiring very wide operating voltage range.
Wide 2:1 input range
Full SMD-design
High efficiency up to 86%
Extended operating temperature range –40°C to 85°C
I/O isolation 1500 VDC
Indefinite short circuit protection
Input filter to meet EN 55022, Class A and FCC, level A without external components
Shielded metal case with insulated baseplate
24-pin DIP with industry standard pinout
High reliability, MTBF >1 Mio. h
Full SMD-design
High efficiency up to 86%
Extended operating temperature range –40°C to 85°C
I/O isolation 1500 VDC
Indefinite short circuit protection
Input filter to meet EN 55022, Class A and FCC, level A without external components
Shielded metal case with insulated baseplate
24-pin DIP with industry standard pinout
High reliability, MTBF >1 Mio. h
Standards
UL 60950-1, IEC/EN 60950-1
Approvals
CSA File No. 226037
Specifications
Attribute | Value |
---|---|
Output Voltage | 5V dc |
Input Voltage Range | 36 → 72 V dc |
Power Rating | 6W |
Input Voltage Nominal | 48 V dc |
Output Current | 1A |
Mounting Type | Through Hole |
Isolated | Yes |
Number of Outputs | 1 |
Package | DIP 24 |
Isolation Voltage | 1.5kV dc |
Length | 32mm |
Width | 20mm |
Depth | 10mm |
Series | TEN 5 |
Load Regulation | ±1% |
Minimum Temperature | -40°C |
Efficiency | 83% |
Maximum Temperature | +85°C |
