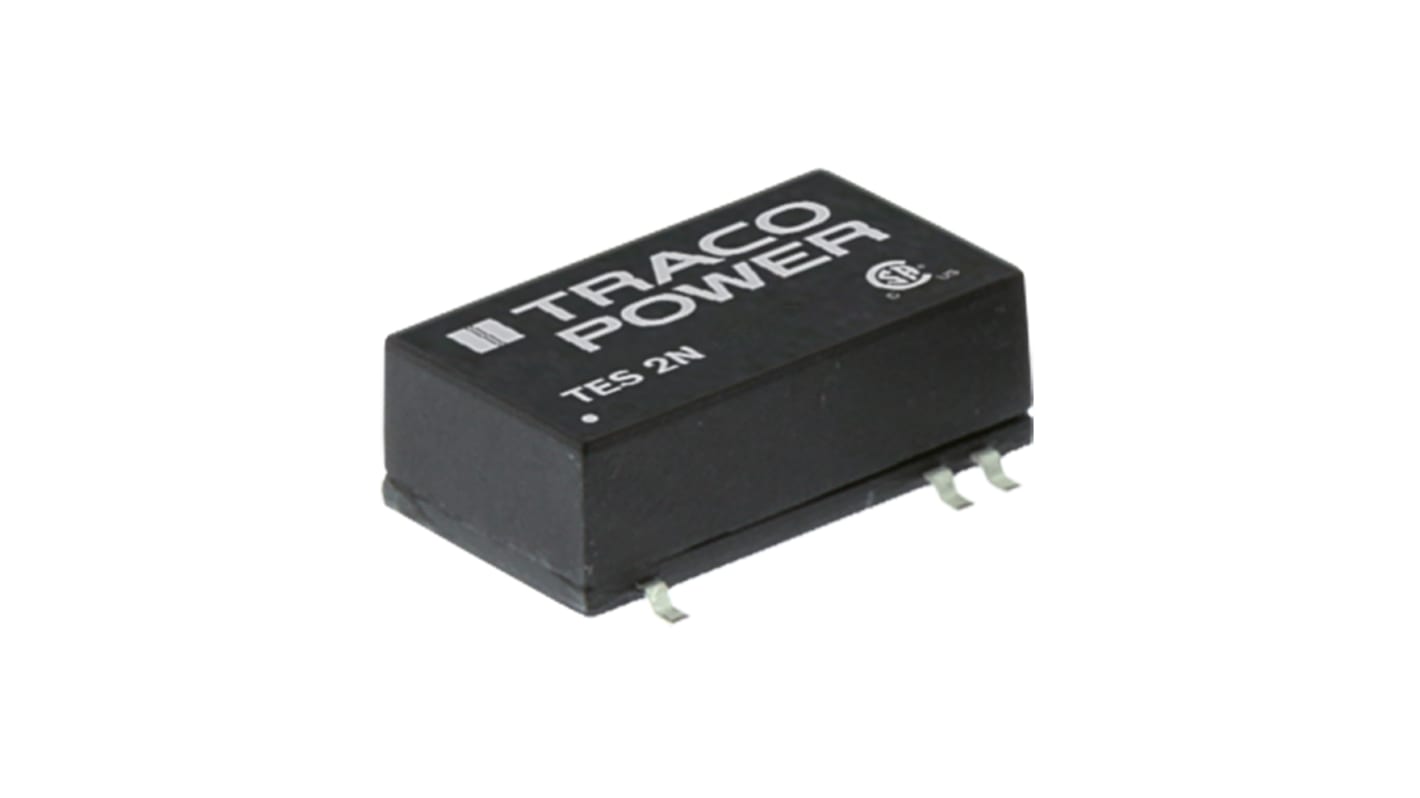

TRACOPOWER TES 2N DC/DC Converter, 3.3V dc/ 500 mA, 18V dc Input, 9V Input 1.7 W, Surface, 85 °C Max Temp -25 °C Min
- RS Stock No.:
- 200-8376
- Mfr. Part No.:
- TES 2N-1210
- Brand:
- TRACOPOWER
Subtotal (1 tube of 10 units)*
£141.73
(exc. VAT)
£170.08
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 12 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £141.73 | £14.173 |
*price indicative
- RS Stock No.:
- 200-8376
- Mfr. Part No.:
- TES 2N-1210
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 3.3V dc | |
| Maximum Input Voltage | 18V dc | |
| Minimum Input Voltage | 9V | |
| Output Current 1 | 500mA | |
| Mount Type | Surface | |
| Input Ratio | 2:1 | |
| MTBF | 2000000h | |
| Number of Outputs | 1 | |
| Ripple and Noise | 50mV Pk-Pk | |
| Isolation Voltage | 1.5kV dc | |
| Number of Pins | 16 | |
| Package Type | Surface Mount | |
| Maximum Output Power | 1.7W | |
| Length | 24mm | |
| Depth | 9mm | |
| Standards/Approvals | No | |
| Width | 13.7mm | |
| Weight | 5.1g | |
| Series | TES 2N | |
| Efficiency | 0.73% | |
| Maximum Operating Temperature | 85°C | |
| Minimum Operating Temperature | -25°C | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Product Type DC/DC Converter | ||
Output Voltage 1 3.3V dc | ||
Maximum Input Voltage 18V dc | ||
Minimum Input Voltage 9V | ||
Output Current 1 500mA | ||
Mount Type Surface | ||
Input Ratio 2:1 | ||
MTBF 2000000h | ||
Number of Outputs 1 | ||
Ripple and Noise 50mV Pk-Pk | ||
Isolation Voltage 1.5kV dc | ||
Number of Pins 16 | ||
Package Type Surface Mount | ||
Maximum Output Power 1.7W | ||
Length 24mm | ||
Depth 9mm | ||
Standards/Approvals No | ||
Width 13.7mm | ||
Weight 5.1g | ||
Series TES 2N | ||
Efficiency 0.73% | ||
Maximum Operating Temperature 85°C | ||
Minimum Operating Temperature -25°C | ||
- COO (Country of Origin):
- TW
The Traco TES 2N-1210 is a high performance 2W DC/DC converter modules featuring wide 2:1 input voltage ranges. Typical applications for this converter is battery operated equipment, instrumentation, communication and industrial electronics, everywhere where isolated, tightly regulated voltages are required.
SMD package with industry standard footprint
Operating temperature range -40°C to +85°C
Input filter meets EN55022, class A
