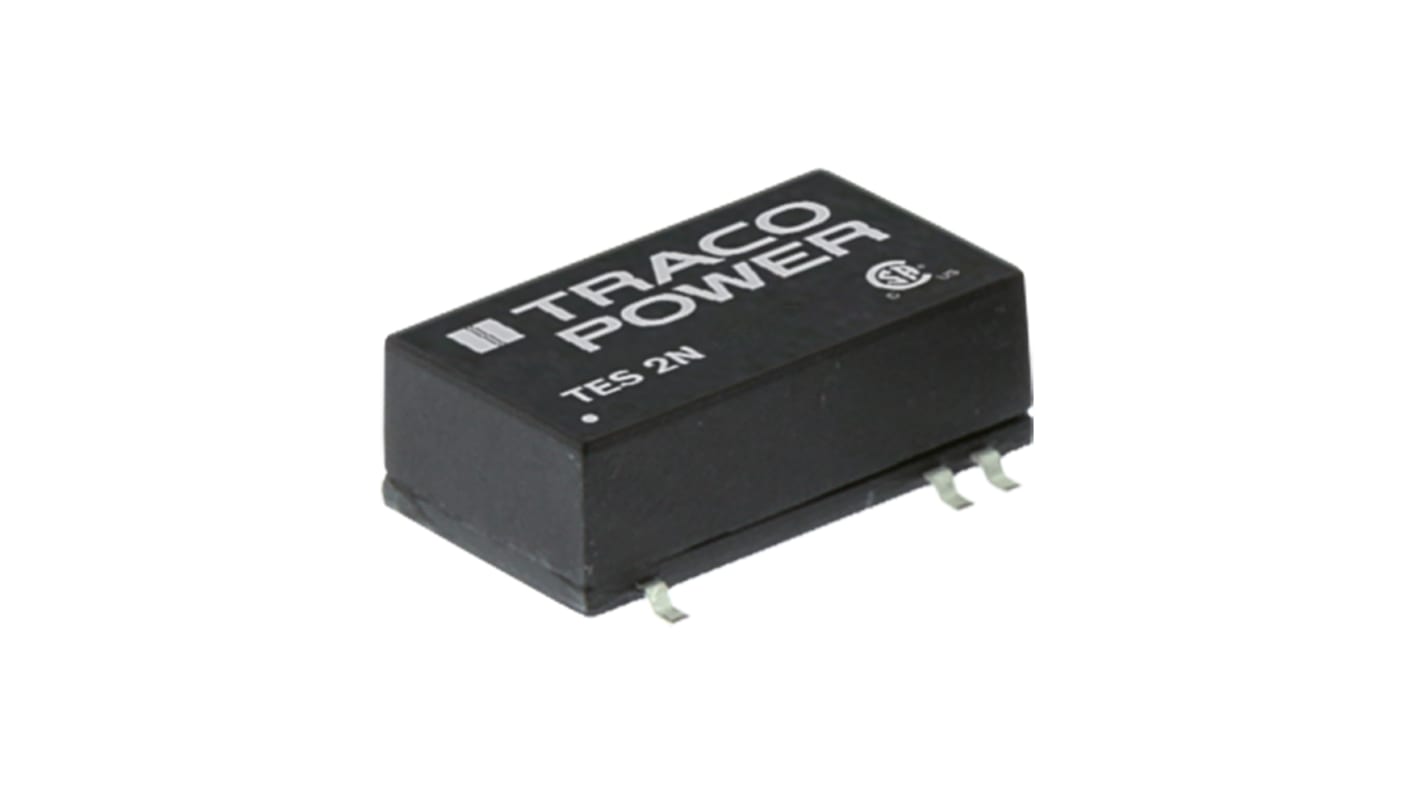

TRACOPOWER TES 2N DC/DC Converter, 5V dc/ 200 mA, 9V dc Input, 4.5V Input 2 W, Surface, 85 °C Max Temp -40 °C Min Temp
- RS Stock No.:
- 166-5298
- Mfr. Part No.:
- TES 2N-0521
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£202.03
(exc. VAT)
£242.44
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 21 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £202.03 | £20.203 |
| 5 - 9 | £195.97 | £19.597 |
| 10 - 24 | £189.91 | £18.991 |
| 25 - 49 | £181.82 | £18.182 |
| 50 + | £173.74 | £17.374 |
*price indicative
- RS Stock No.:
- 166-5298
- Mfr. Part No.:
- TES 2N-0521
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 5V dc | |
| Minimum Input Voltage | 4.5V | |
| Maximum Input Voltage | 9V dc | |
| Output Current 1 | 200mA | |
| Mount Type | Surface | |
| Input Ratio | 2:1 | |
| Number of Outputs | 2 | |
| MTBF | 1000000h | |
| Isolation Voltage | 1.5kV dc | |
| Package Type | Surface Mount | |
| Maximum Output Power | 2W | |
| Length | 24mm | |
| Standards/Approvals | No | |
| Depth | 8mm | |
| Series | TES 2N | |
| Maximum Operating Temperature | 85°C | |
| Efficiency | 64% | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Product Type DC/DC Converter | ||
Output Voltage 1 5V dc | ||
Minimum Input Voltage 4.5V | ||
Maximum Input Voltage 9V dc | ||
Output Current 1 200mA | ||
Mount Type Surface | ||
Input Ratio 2:1 | ||
Number of Outputs 2 | ||
MTBF 1000000h | ||
Isolation Voltage 1.5kV dc | ||
Package Type Surface Mount | ||
Maximum Output Power 2W | ||
Length 24mm | ||
Standards/Approvals No | ||
Depth 8mm | ||
Series TES 2N | ||
Maximum Operating Temperature 85°C | ||
Efficiency 64% | ||
Minimum Operating Temperature -40°C | ||
Traco 2W SMD Single/Dual Output Regulated Isolated DC-DC Converter - TES 2N Series
Low profile SMD package
1500Vdc input / output isolation
Wide 2:1 input range
Input filter to meet EN55022 Class A
Indefinite short circuit protection
Note
Operating temperature is without derating.
