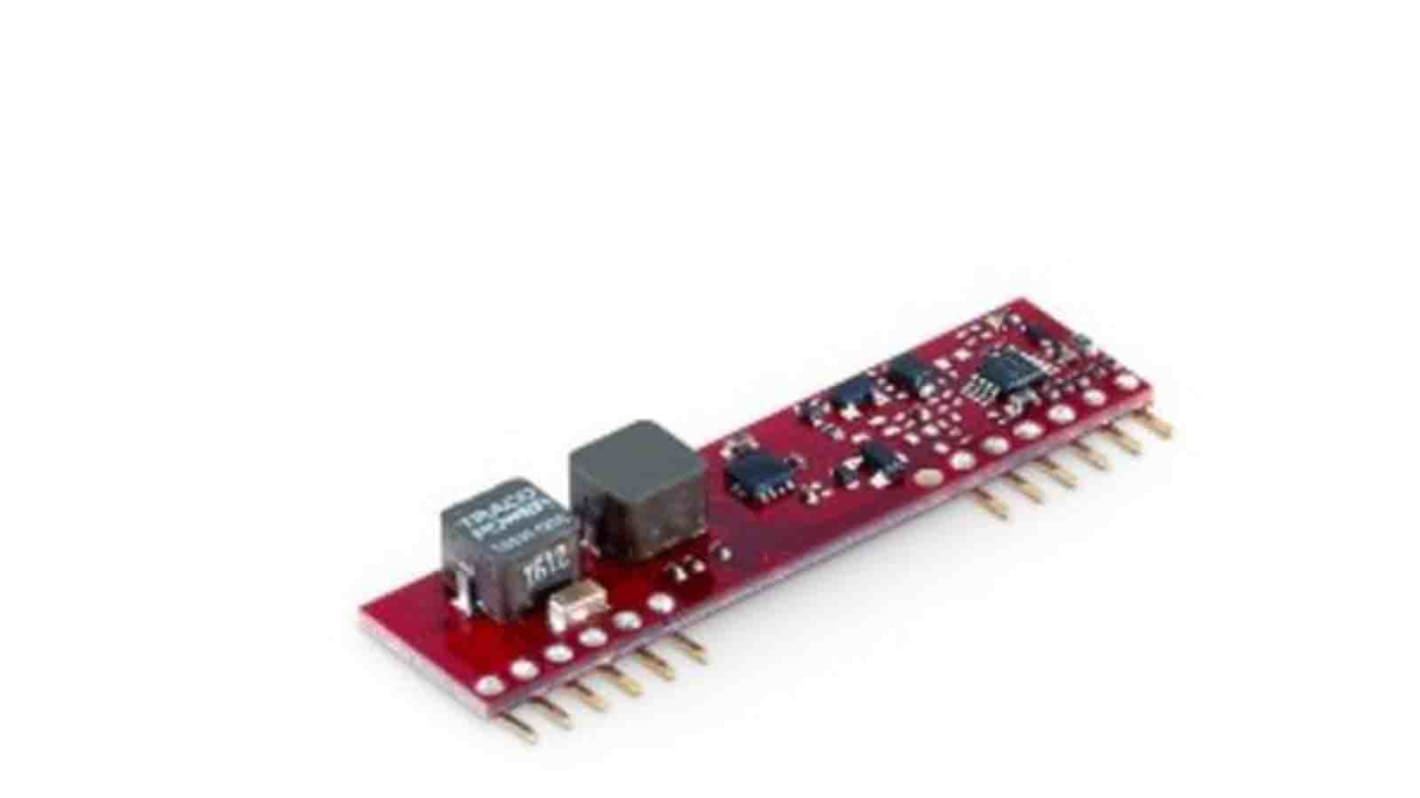

TRACOPOWER TOS DC/DC Converter, 0.75V dc/ 6 A, 3.95V dc Input, 2.4V, Surface, 85 °C Max Temp -40 °C Min Temp, SIP
- RS Stock No.:
- 200-3531
- Mfr. Part No.:
- TOS 06-05SM
- Brand:
- TRACOPOWER
Subtotal (1 unit)*
£17.39
(exc. VAT)
£20.87
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 8 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £17.39 |
*price indicative
- RS Stock No.:
- 200-3531
- Mfr. Part No.:
- TOS 06-05SM
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 0.75V dc | |
| Minimum Input Voltage | 2.4V | |
| Maximum Input Voltage | 3.95V dc | |
| Mount Type | Surface | |
| Number of Outputs | 1 | |
| MTBF | 9000000h | |
| Ripple and Noise | 50mV Pk-Pk | |
| Output Voltage Adjustment Range | 0.75/3.3 V dc | |
| Output Current 1 | 6A | |
| Package Type | SIP | |
| Width | 11.4mm | |
| Length | 20.3mm | |
| Depth | 5.4mm | |
| Series | TOS | |
| Standards/Approvals | UL 609501, UL 6681, RoHS, cRU us, REACH | |
| Weight | 2.8g | |
| Efficiency | 0.94% | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Product Type DC/DC Converter | ||
Output Voltage 1 0.75V dc | ||
Minimum Input Voltage 2.4V | ||
Maximum Input Voltage 3.95V dc | ||
Mount Type Surface | ||
Number of Outputs 1 | ||
MTBF 9000000h | ||
Ripple and Noise 50mV Pk-Pk | ||
Output Voltage Adjustment Range 0.75/3.3 V dc | ||
Output Current 1 6A | ||
Package Type SIP | ||
Width 11.4mm | ||
Length 20.3mm | ||
Depth 5.4mm | ||
Series TOS | ||
Standards/Approvals UL 609501, UL 6681, RoHS, cRU us, REACH | ||
Weight 2.8g | ||
Efficiency 0.94% | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
- COO (Country of Origin):
- TW
The Traco power TOS series is DC/DC Converter family SMT-version. The TOS series is a range of high performance non-isolated dc-dc converters With very high efficiency that can supply up to 30A of output current. These modules provide precisely regulated output voltages which can be set via an external resistor to a value from 0.75 VDC to 5.5 VDC.
Small size, low profile
SMT package or SIP version
Delivers up to 30 A with minimal derating
Ultra high efficiency to 96 %
Fast transient response
