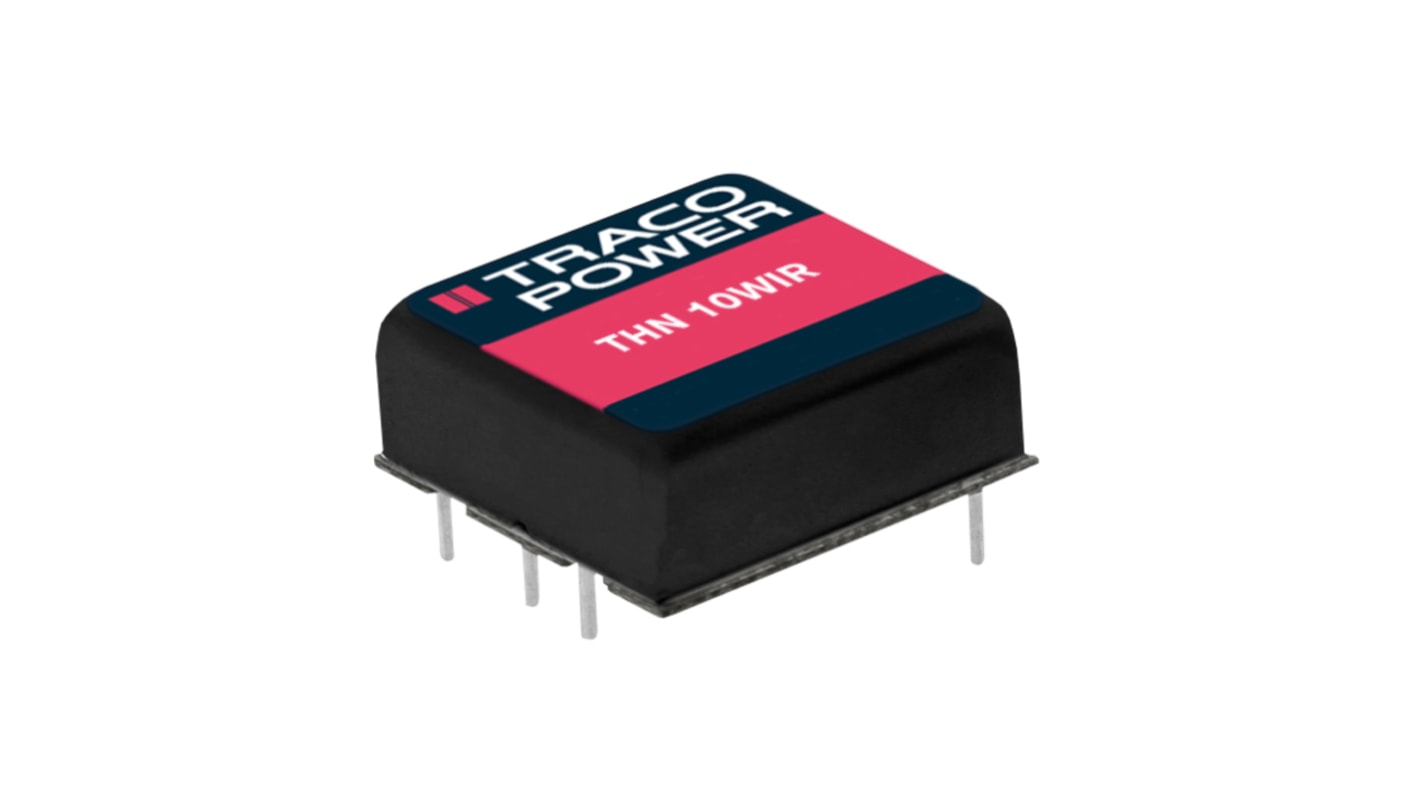

TRACOPOWER THN 10WIR DC/DC Converter, 12V dc/ 416 mA, 36V dc Input, 9V Input 10 W, Through Hole, 80 °C Max Temp -40 °C

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 10 units)*

£346.79

(exc. VAT)

£416.15

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 1 unit(s) shipping from 22 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Tube(s)
Per Tube
Per unit*
1 - 4£346.79£34.679
5 - 9£336.39£33.639
10 - 24£325.99£32.599
25 - 49£312.11£31.211
50 +£298.24£29.824

*price indicative

RS Stock No.:
200-3499
Mfr. Part No.:
THN 10-2422WIR
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Product Type

DC/DC Converter

Output Voltage 1

12V dc

Minimum Input Voltage

9V

Maximum Input Voltage

36V dc

Output Current 1

416mA

Output Current 2

416mA

Output Voltage 2

-12V dc

Mount Type

Through Hole

Input Ratio

4:1

MTBF

2334000h

Number of Outputs

2

Ripple and Noise

100mV Pk-Pk

Output Voltage Adjustment Range

10 %

Isolation Voltage

3kV dc

Number of Pins

6

Maximum Output Power

10W

Package Type

DIP

Length

25.4mm

Weight

16.5g

Standards/Approvals

No

Width

25.4mm

Series

THN 10WIR

Depth

9.9mm

Efficiency

0.89%

Maximum Operating Temperature

80°C

Minimum Operating Temperature

-40°C

COO (Country of Origin):
TW
The Traco THN 10WIR series ± 12V/10W DC/DC converters designed for highest reliability in harsh environments. It has an increased resistance against electromagnetic interference, vibration and thermal shock and come in a six-side shielded 1” x 1” metal package.

Operating temperature range -40 to +80 °C without derating

High efficiency up to 90%

3000 VDC I/O-isolation

Protection against overload, overvoltage and short circuit

Remote On/Off and Trim function
