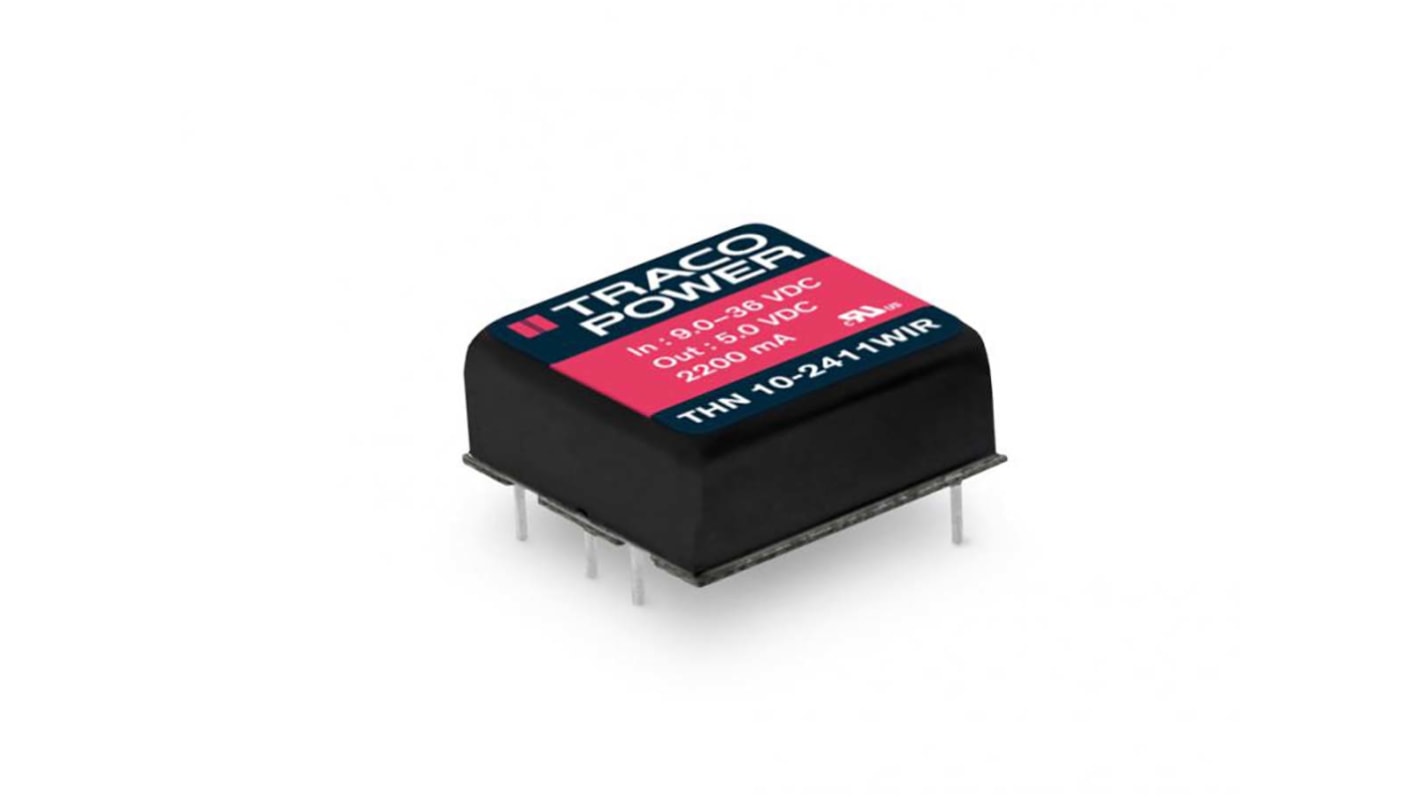

TRACOPOWER THN 10WIR DC/DC Converter, 5V dc/ 2 A, 160V dc Input, 36V Input 10 W, Through Hole, 80 °C Max Temp -40 °C Min
- RS Stock No.:
- 200-3474
- Mfr. Part No.:
- THN 10-7211WIR
- Brand:
- TRACOPOWER
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£35.83
(exc. VAT)
£43.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £35.83 |
| 5 - 9 | £34.76 |
| 10 - 24 | £33.68 |
| 25 - 49 | £32.26 |
| 50 + | £30.82 |
*price indicative
- RS Stock No.:
- 200-3474
- Mfr. Part No.:
- THN 10-7211WIR
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 5V dc | |
| Minimum Input Voltage | 36V | |
| Maximum Input Voltage | 160V dc | |
| Output Current 1 | 2A | |
| Mount Type | Through Hole | |
| Input Ratio | 4:1 | |
| MTBF | 2334000h | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | 20 % | |
| Ripple and Noise | 75mV Pk-Pk | |
| Number of Pins | 6 | |
| Isolation Voltage | 3kV dc | |
| Maximum Output Power | 10W | |
| Package Type | DIP | |
| Weight | 16.5g | |
| Length | 25.4mm | |
| Depth | 9.9mm | |
| Width | 25.4mm | |
| Series | THN 10WIR | |
| Standards/Approvals | No | |
| Efficiency | 88% | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Product Type DC/DC Converter | ||
Output Voltage 1 5V dc | ||
Minimum Input Voltage 36V | ||
Maximum Input Voltage 160V dc | ||
Output Current 1 2A | ||
Mount Type Through Hole | ||
Input Ratio 4:1 | ||
MTBF 2334000h | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range 20 % | ||
Ripple and Noise 75mV Pk-Pk | ||
Number of Pins 6 | ||
Isolation Voltage 3kV dc | ||
Maximum Output Power 10W | ||
Package Type DIP | ||
Weight 16.5g | ||
Length 25.4mm | ||
Depth 9.9mm | ||
Width 25.4mm | ||
Series THN 10WIR | ||
Standards/Approvals No | ||
Efficiency 88% | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
- COO (Country of Origin):
- TW
TRACOPOWER THN 10WIR Series DC-DC Converter, 36 to 160V DC Input Voltage Range, 10W Power Rating - THN 10-7211WIR
This isolated DC-DC converter is designed for applications requiring a dependable power source in challenging conditions. It operates within an input voltage range of 36 to 160V DC and delivers an output voltage of 5V DC. Housed in a compact 1x1 in metal case, it integrates smoothly into a variety of systems.
Features & Benefits
• Delivers a single output with adjustable voltage between 4.5V and 6V
• Operates with an efficiency rating of 88%
• Capable of withstanding maximum temperatures up to 95°C for versatility
• Compliant with IEC/EN 62368-1, ensuring safety
• Includes built-in short circuit protection for enhanced reliability
• Offers improved electromagnetic interference resistance for stability
Applications
• Utilised in railway and transportation equipment
• Suitable for automation and industrial control systems
• Ideal for PCB mounting in space-constrained environments
Can it operate under harsh environmental conditions?
Yes, it is designed to endure shock, vibration, and thermal shock.
Will it function efficiently at maximum input voltage?
Yes, it maintains high efficiency even at elevated voltage levels.
