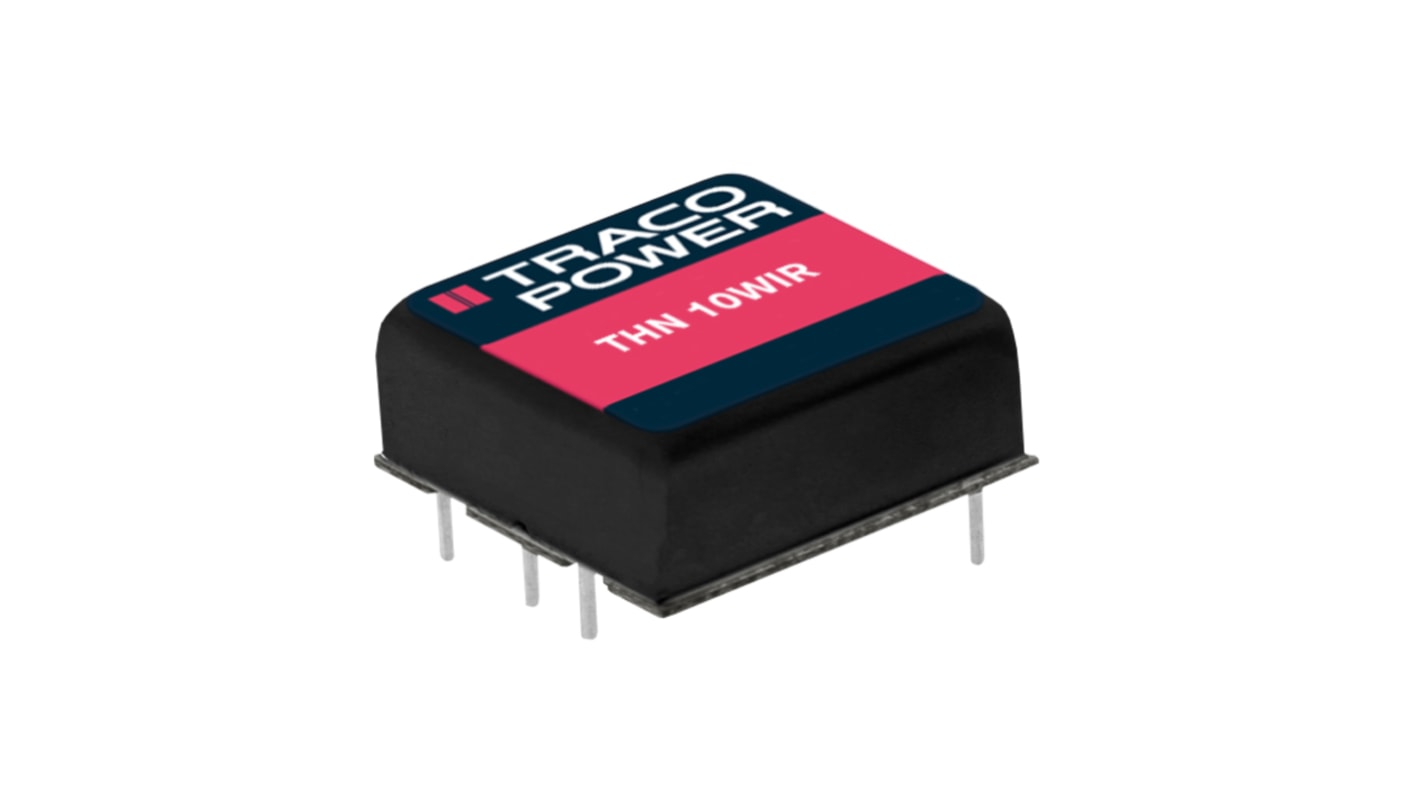

TRACOPOWER THN 10WIR DC-DC Converter, 5V dc/ 2A Output, 36 → 160 V dc Input, 10W, Through Hole, +80°C Max Temp
- RS Stock No.:
- 200-3473
- Mfr. Part No.:
- THN 10-7211WIR
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£347.54
(exc. VAT)
£417.05
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 1 unit(s) shipping from 06 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 - 4 | £347.54 | £34.754 |
5 - 9 | £337.12 | £33.712 |
10 - 24 | £326.70 | £32.67 |
25 - 49 | £312.79 | £31.279 |
50 + | £298.89 | £29.889 |
*price indicative
- RS Stock No.:
- 200-3473
- Mfr. Part No.:
- THN 10-7211WIR
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TRACOPOWER | |
Output Voltage | 5V dc | |
Input Voltage Range | 36 → 160 V dc | |
Power Rating | 10W | |
Input Voltage Nominal | 110 V dc | |
Output Current | 2A | |
Mounting Type | Through Hole | |
Isolated | Yes | |
Number of Outputs | 1 | |
Output Voltage Adjustment Range | -10 → +20% | |
Package | 1 x 1 in | |
Isolation Voltage | 3kV dc | |
Length | 25.4mm | |
Depth | 9.9mm | |
Width | 25.4mm | |
Railway Approved | Yes | |
Series | THN 10WIR | |
Load Regulation | 0.01 | |
Minimum Temperature | -40°C | |
Medical Approved | No | |
Efficiency | 88% | |
Standards Met | IEC/EN 62368-1 | |
Maximum Temperature | +80°C | |
Select all | ||
---|---|---|
Brand TRACOPOWER | ||
Output Voltage 5V dc | ||
Input Voltage Range 36 → 160 V dc | ||
Power Rating 10W | ||
Input Voltage Nominal 110 V dc | ||
Output Current 2A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range -10 → +20% | ||
Package 1 x 1 in | ||
Isolation Voltage 3kV dc | ||
Length 25.4mm | ||
Depth 9.9mm | ||
Width 25.4mm | ||
Railway Approved Yes | ||
Series THN 10WIR | ||
Load Regulation 0.01 | ||
Minimum Temperature -40°C | ||
Medical Approved No | ||
Efficiency 88% | ||
Standards Met IEC/EN 62368-1 | ||
Maximum Temperature +80°C | ||
- COO (Country of Origin):
- TW
TRACOPOWER THN 10WIR Series DC-DC Converter, 36 to 160V DC Input Voltage Range, 10W Power Rating - THN 10-7211WIR
This isolated DC-DC converter is designed for applications requiring a dependable power source in challenging conditions. It operates within an input voltage range of 36 to 160V DC and delivers an output voltage of 5V DC. Housed in a compact 1x1 in metal case, it integrates smoothly into a variety of systems.
Features & Benefits
• Delivers a single output with adjustable voltage between 4.5V and 6V
• Operates with an efficiency rating of 88%
• Capable of withstanding maximum temperatures up to 95°C for versatility
• Compliant with IEC/EN 62368-1, ensuring safety
• Includes built-in short circuit protection for enhanced reliability
• Offers improved electromagnetic interference resistance for stability
• Operates with an efficiency rating of 88%
• Capable of withstanding maximum temperatures up to 95°C for versatility
• Compliant with IEC/EN 62368-1, ensuring safety
• Includes built-in short circuit protection for enhanced reliability
• Offers improved electromagnetic interference resistance for stability
Applications
• Utilised in railway and transportation equipment
• Suitable for automation and industrial control systems
• Ideal for PCB mounting in space-constrained environments
• Suitable for automation and industrial control systems
• Ideal for PCB mounting in space-constrained environments
Can it operate under harsh environmental conditions?
Yes, it is designed to endure shock, vibration, and thermal shock.
Will it function efficiently at maximum input voltage?
Yes, it maintains high efficiency even at elevated voltage levels.
