TRACOPOWER TEN 40E DC-DC Converter, 5V dc/ 8A Output, 36 → 75 V dc Input, 40W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 194-4635
- Mfr. Part No.:
- TEN 40-4811E
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£492.01
(exc. VAT)
£590.41
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £492.01 | £49.201 |
| 5 - 9 | £477.25 | £47.725 |
| 10 - 24 | £462.49 | £46.249 |
| 25 - 49 | £442.82 | £44.282 |
| 50 + | £423.13 | £42.313 |
*price indicative
- RS Stock No.:
- 194-4635
- Mfr. Part No.:
- TEN 40-4811E
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 5V dc | |
| Input Voltage Range | 36 → 75 V dc | |
| Power Rating | 40W | |
| Input Voltage Nominal | 48 V dc | |
| Output Current | 8A | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | ±10% | |
| Package | 2 in x 1 in Case | |
| Isolation Voltage | 1.131 kV dc, 1.6kV dc | |
| Length | 50.8mm | |
| Depth | 10.2mm | |
| Width | 25.4mm | |
| Series | TEN 40E | |
| Load Regulation | 0.003 | |
| Efficiency | 91 (Typ.)% | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 5V dc | ||
Input Voltage Range 36 → 75 V dc | ||
Power Rating 40W | ||
Input Voltage Nominal 48 V dc | ||
Output Current 8A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range ±10% | ||
Package 2 in x 1 in Case | ||
Isolation Voltage 1.131 kV dc, 1.6kV dc | ||
Length 50.8mm | ||
Depth 10.2mm | ||
Width 25.4mm | ||
Series TEN 40E | ||
Load Regulation 0.003 | ||
Efficiency 91 (Typ.)% | ||
Minimum Temperature -40°C | ||
Maximum Temperature +85°C | ||
- COO (Country of Origin):
- TW

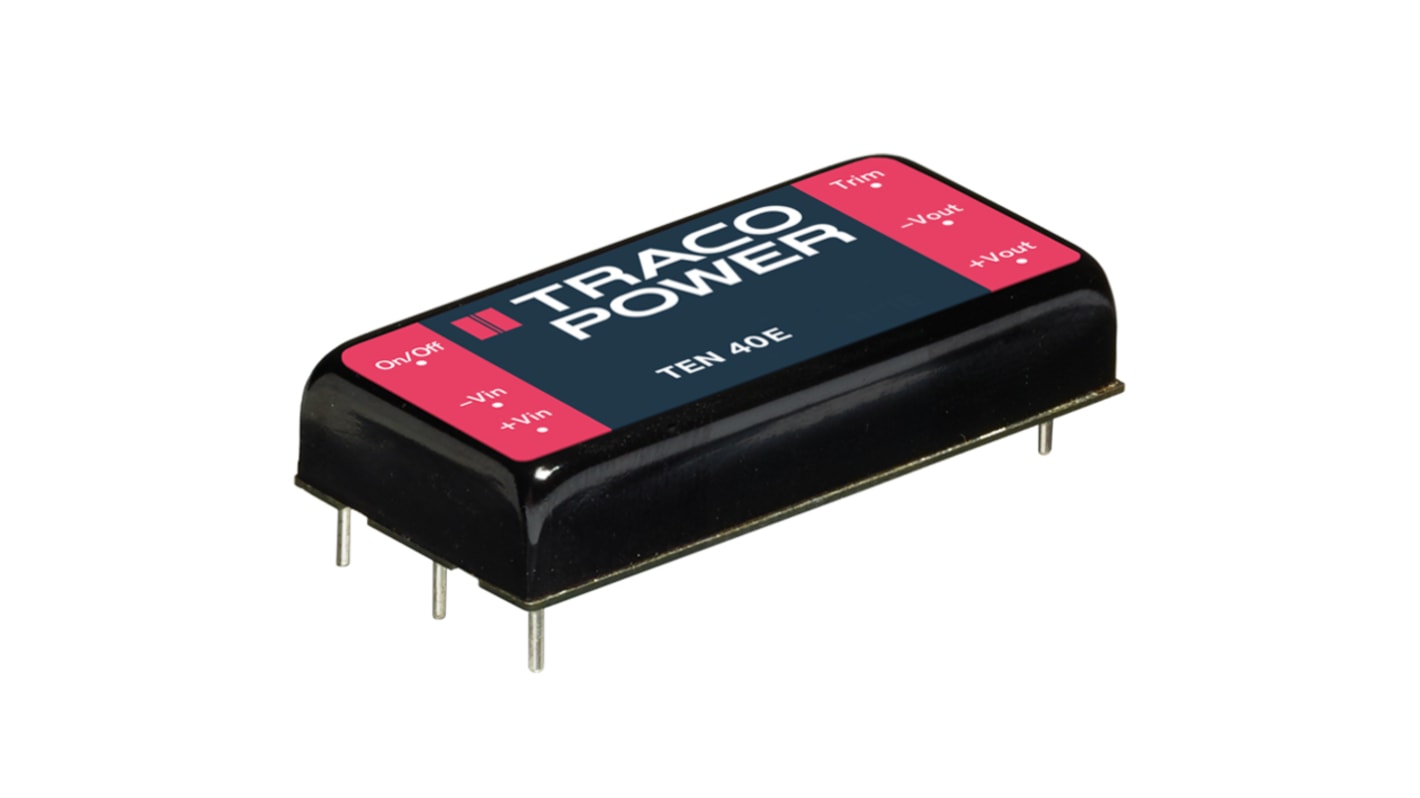

TRACOPOWER TEN 40E Series DC-DC Converter, 5V DC Output Voltage, 8A Output Current - TEN 40-4811E
This isolated DC-DC converter provides reliable power management solutions with an output voltage of 5V DC and a power rating of 40W. Designed for industrial applications, it features a compact 50mm x 25.4mm metal package suitable for through-hole mounting. With an input voltage range of 36 to 75V DC, it efficiently converts higher voltages to lower ones while ensuring robust performance across varying conditions.
Features & Benefits
• High efficiency of up to 93% enhances thermal management
• Wide input voltage range for versatile installation options
• Protection against short circuits, overvoltage, and overheating
• Remote on/off control capability simplifies operation
• Compact design with minimal heat generation for space constraints
• Wide input voltage range for versatile installation options
• Protection against short circuits, overvoltage, and overheating
• Remote on/off control capability simplifies operation
• Compact design with minimal heat generation for space constraints
Applications
• Used for power regulation in automation systems
• Suitable for powering sensors and control circuits
• Ideal for use in telecommunications equipment
• Supports instrumentation and measurement devices
• Appropriate for industrial machinery and process control
• Suitable for powering sensors and control circuits
• Ideal for use in telecommunications equipment
• Supports instrumentation and measurement devices
• Appropriate for industrial machinery and process control
What is the input current consumption at no load?
The input current at no load varies by model, with 12Vin models consuming 20mA typ., 24Vin models at 15mA typ., and 48Vin models at 10mA typ.
How does this converter handle voltage spikes?
It incorporates surge voltage protection, which allows it to withstand a maximum of 100V DC for 48Vin models without damage.
What is the effectiveness of its thermal management?
With a high thermal impedance and natural convection cooling, it effectively manages temperature, allowing operation up to 85°C without derating performance.
How is the output voltage adjusted?
The output voltage can be adjusted within a range of ±10% using an external trim resistor for precise voltage regulation.
