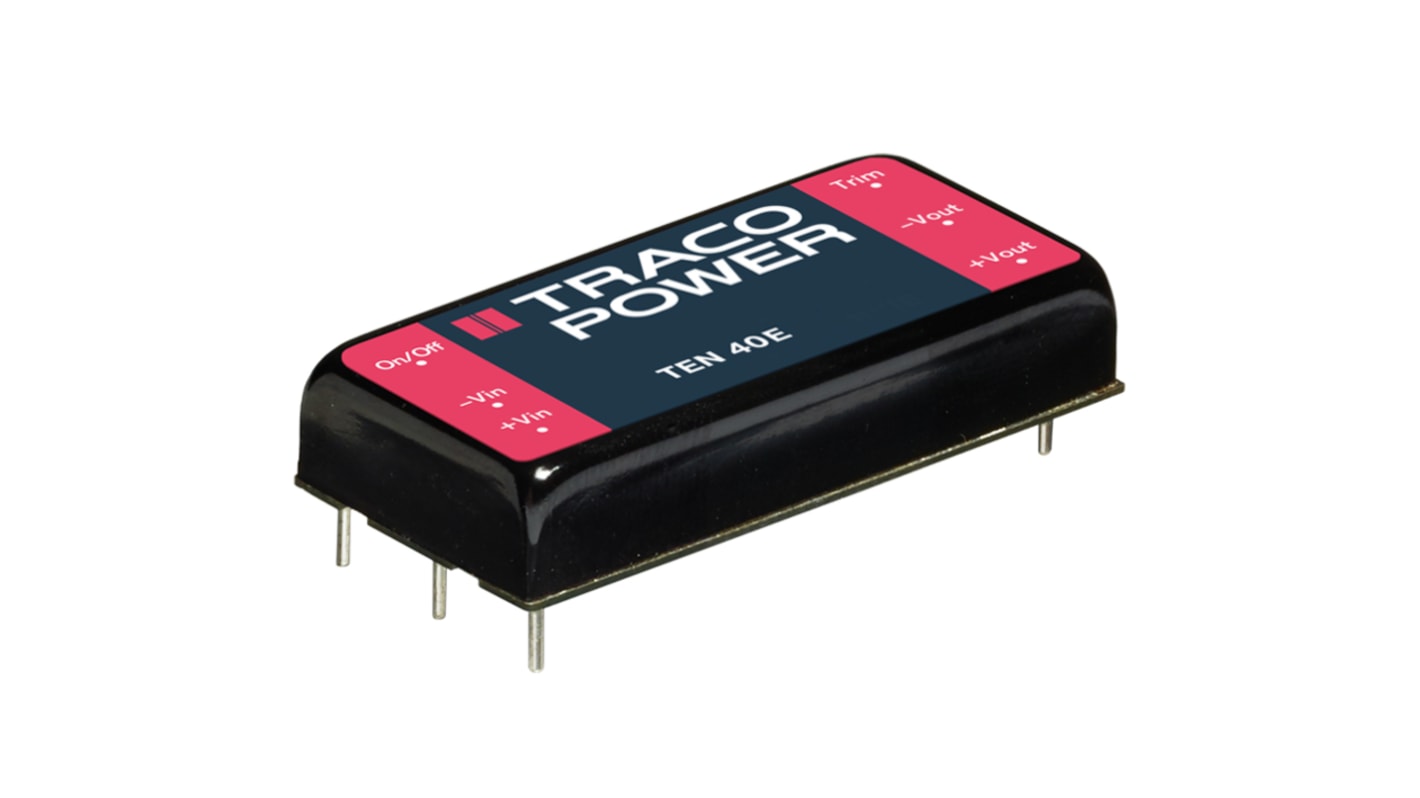

TRACOPOWER TEN 40E DC-DC Converter, 3.3V dc/ 12.2A Output, 9 → 18 V dc Input, 40W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 194-4598
- Mfr. Part No.:
- TEN 40-1210E
- Brand:
- TRACOPOWER
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 194-4598
- Mfr. Part No.:
- TEN 40-1210E
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 3.3V dc | |
| Input Voltage Range | 9 → 18 V dc | |
| Power Rating | 40W | |
| Input Voltage Nominal | 12 V dc | |
| Output Current | 12.2A | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | ±10% | |
| Package | 2 in x 1 in Case | |
| Isolation Voltage | 1.131 kV dc, 1.6kV dc | |
| Length | 50.8mm | |
| Width | 25.4mm | |
| Depth | 10.2mm | |
| Series | TEN 40E | |
| Load Regulation | 0.003 | |
| Maximum Temperature | +85°C | |
| Efficiency | 89 (Typ.)% | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 3.3V dc | ||
Input Voltage Range 9 → 18 V dc | ||
Power Rating 40W | ||
Input Voltage Nominal 12 V dc | ||
Output Current 12.2A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range ±10% | ||
Package 2 in x 1 in Case | ||
Isolation Voltage 1.131 kV dc, 1.6kV dc | ||
Length 50.8mm | ||
Width 25.4mm | ||
Depth 10.2mm | ||
Series TEN 40E | ||
Load Regulation 0.003 | ||
Maximum Temperature +85°C | ||
Efficiency 89 (Typ.)% | ||
Minimum Temperature -40°C | ||
