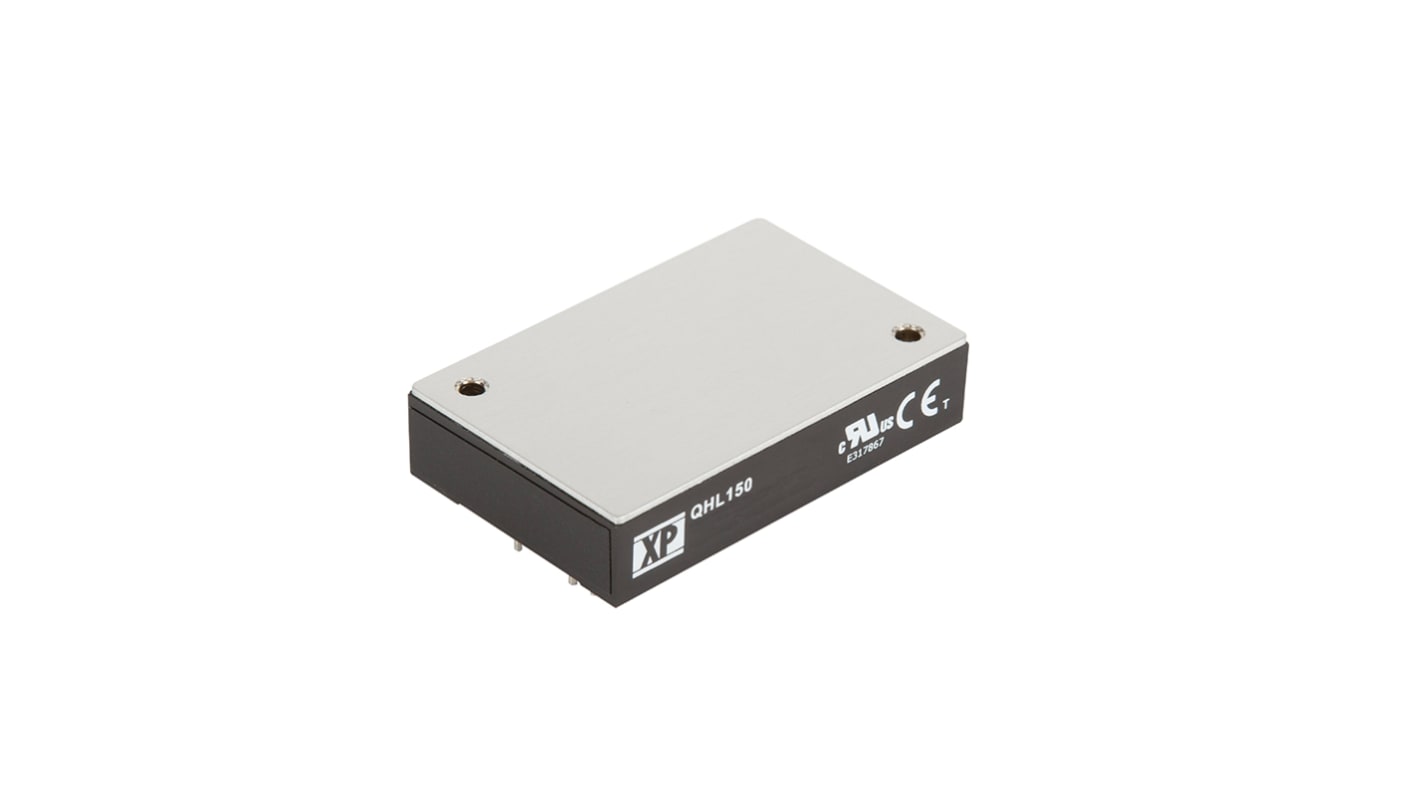

XP Power QHL150 DC/DC Converter, 15V dc/ 10 A, 425V dc Input, 180V Input 150 W, Through Hole, 100 °C Max Temp -40 °C Min

View all DC-DC Converters
Currently unavailable
Sorry, we don't know when this will be back in stock.
RS Stock No.:
193-5906
Distrelec Article No.:
301-83-675
Mfr. Part No.:
QHL150300S15
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Product Type

DC/DC Converter

Output Voltage 1

15V dc

Maximum Input Voltage

425V dc

Minimum Input Voltage

180V

Output Current 1

10A

Mount Type

Through Hole

MTBF

1000000h

Number of Outputs

1

Ripple and Noise

150mV Pk-Pk

Isolation Voltage

3kV ac

Number of Pins

8

Maximum Output Power

150W

Package Type

Quarter Brick

Length

57.9mm

Depth

12.7mm

Series

QHL150

Standards/Approvals

No

Width

36.8mm

Weight

65g

Efficiency

89%

Maximum Operating Temperature

100°C

Minimum Operating Temperature

-40°C

COO (Country of Origin):
TW
The QHL150 series offers a compact 150W DC-DC solution in an industry standard quarter brick package. This series of modules enables effective construction of distributed power architectures from AC front ends, PFC front ends and battery systems.

180 to 425 VDC Input Range

Regulated Single Output

Industry Standard Quarter Brick

3kVAC Isolation

Output Trim -20% to +10%

Remote On/Off

Overtemperature Protection

-40°C to +100°C Operation

3 Year Warranty
