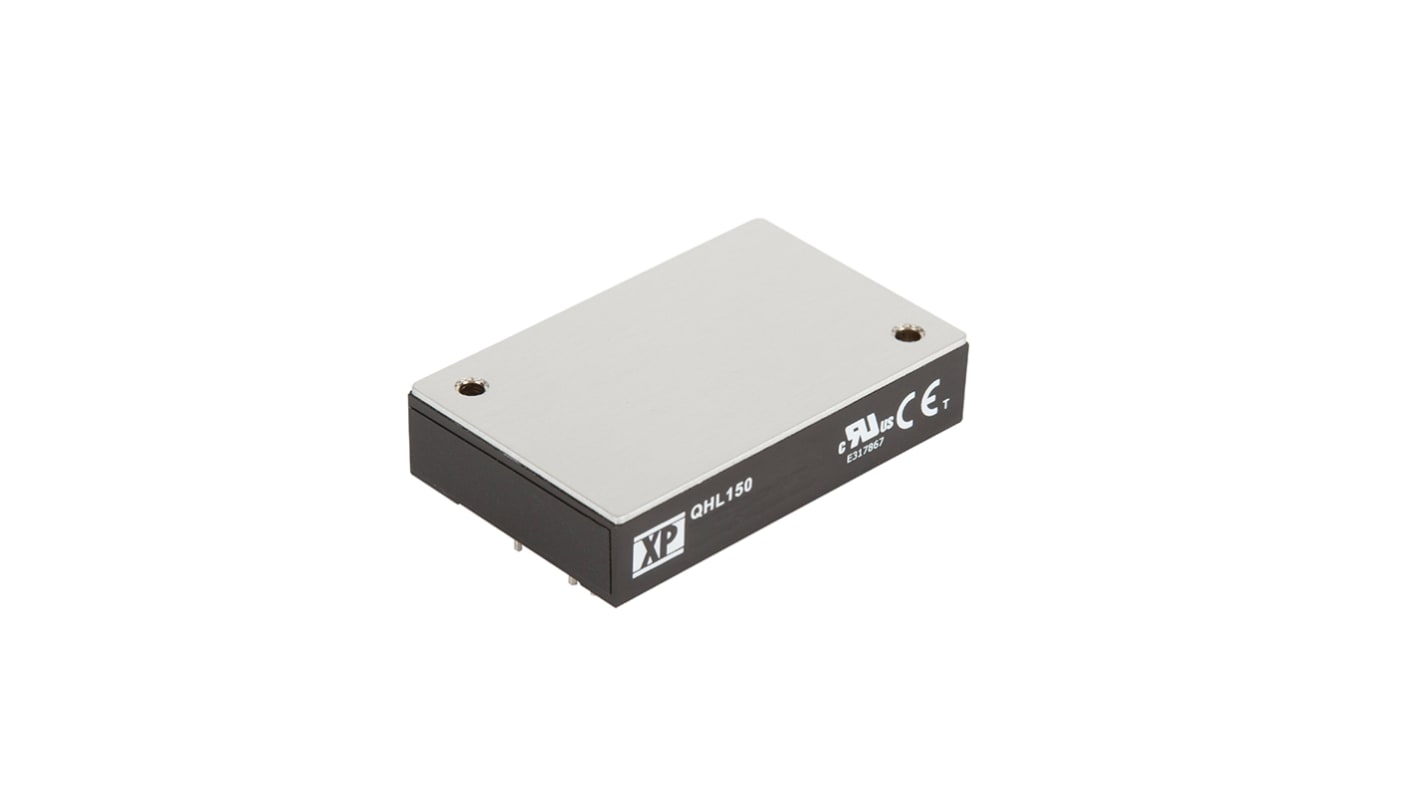

XP Power QHL150 DC/DC Converter, 12V dc/ 12.5 A, 425V dc Input, 180V Input 150 W, Through Hole, 100 °C Max Temp -40 °C
- RS Stock No.:
- 193-5905
- Distrelec Article No.:
- 301-83-674
- Mfr. Part No.:
- QHL150300S12
- Brand:
- XP Power
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£150.77
(exc. VAT)
£180.92
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 08 April 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £150.77 |
| 5 - 9 | £146.25 |
| 10 - 24 | £141.73 |
| 25 - 49 | £137.20 |
| 50 + | £132.68 |
*price indicative
- RS Stock No.:
- 193-5905
- Distrelec Article No.:
- 301-83-674
- Mfr. Part No.:
- QHL150300S12
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 12V dc | |
| Maximum Input Voltage | 425V dc | |
| Minimum Input Voltage | 180V | |
| Output Current 1 | 12.5A | |
| Mount Type | Through Hole | |
| MTBF | 1000000h | |
| Number of Outputs | 1 | |
| Ripple and Noise | 150mV Pk-Pk | |
| Isolation Voltage | 3kV ac | |
| Number of Pins | 8 | |
| Package Type | Quarter Brick | |
| Maximum Output Power | 150W | |
| Series | QHL150 | |
| Weight | 65g | |
| Standards/Approvals | No | |
| Depth | 12.7mm | |
| Width | 36.8mm | |
| Length | 57.9mm | |
| Efficiency | 89% | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 100°C | |
| Select all | ||
|---|---|---|
Brand XP Power | ||
Product Type DC/DC Converter | ||
Output Voltage 1 12V dc | ||
Maximum Input Voltage 425V dc | ||
Minimum Input Voltage 180V | ||
Output Current 1 12.5A | ||
Mount Type Through Hole | ||
MTBF 1000000h | ||
Number of Outputs 1 | ||
Ripple and Noise 150mV Pk-Pk | ||
Isolation Voltage 3kV ac | ||
Number of Pins 8 | ||
Package Type Quarter Brick | ||
Maximum Output Power 150W | ||
Series QHL150 | ||
Weight 65g | ||
Standards/Approvals No | ||
Depth 12.7mm | ||
Width 36.8mm | ||
Length 57.9mm | ||
Efficiency 89% | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 100°C | ||
- COO (Country of Origin):
- TW
The QHL150 series offers a compact 150W DC-DC solution in an industry standard quarter brick package. This series of modules enables effective construction of distributed power architectures from AC front ends, PFC front ends and battery systems.
180 to 425 VDC Input Range
Regulated Single Output
Industry Standard Quarter Brick
3kVAC Isolation
Output Trim -20% to +10%
Remote On/Off
Overtemperature Protection
-40°C to +100°C Operation
3 Year Warranty
