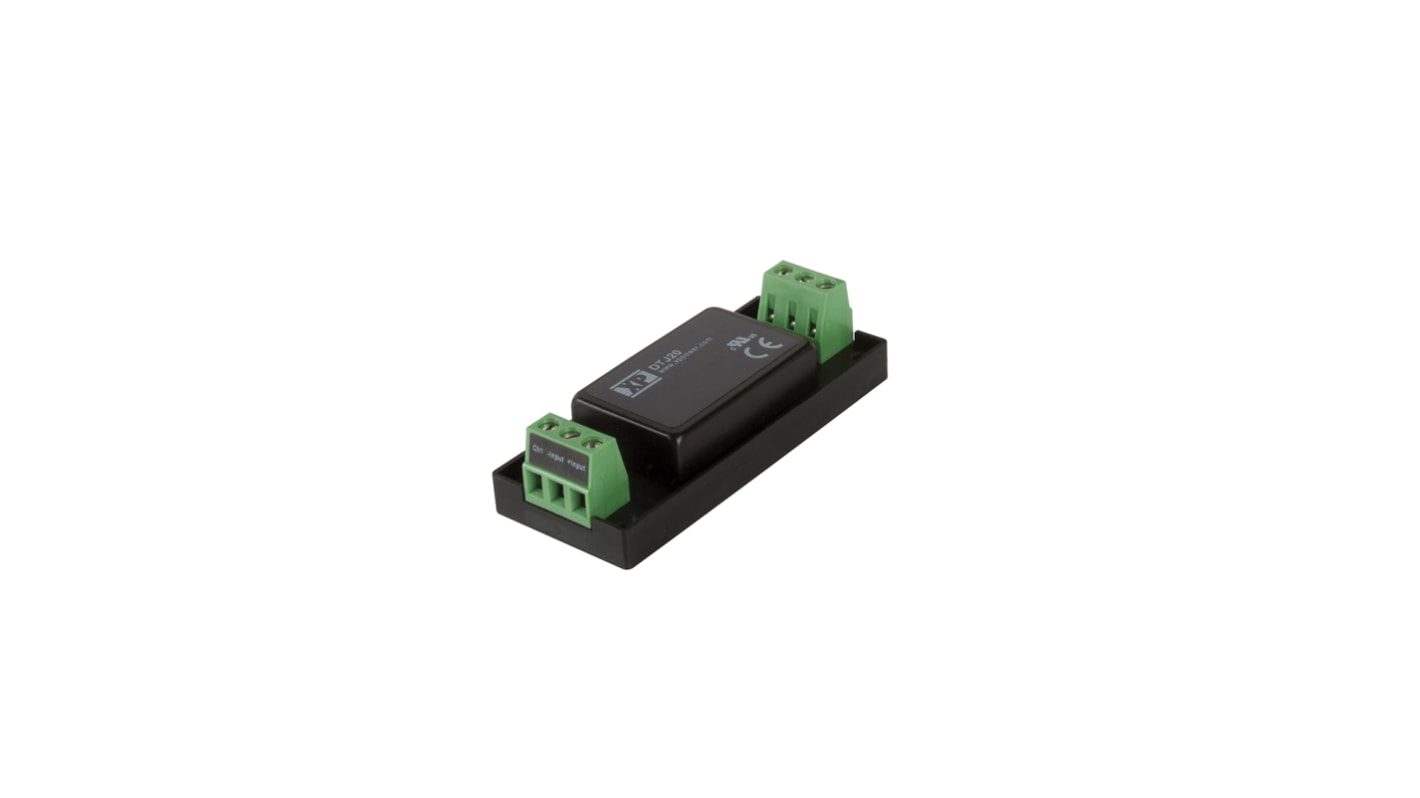

XP Power DTJ20 DC/DC Converter, 3.3V dc/, 36V dc Input 5.5 A, 9V Input, DIN Rail, 100 °C Max Temp -40 °C Min Temp, 6-Pin

View all DC-DC Converters
Bulk discount available

Subtotal (1 unit)*

£46.91

(exc. VAT)

£56.29

(inc. VAT)

Add to Basket
Select or type quantity
Limited stock
  • 18 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 4£46.91
5 - 9£45.51
10 - 24£44.10
25 - 49£42.69
50 +£41.28

*price indicative

RS Stock No.:
193-5886
Distrelec Article No.:
301-83-429
Mfr. Part No.:
DTJ2024S3V3
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Product Type

DC/DC Converter

Output Voltage 1

3.3V dc

Minimum Input Voltage

9V

Maximum Input Voltage

36V dc

Output Current 1

5.5A

Mount Type

DIN Rail

MTBF

380000h

Number of Outputs

1

Number of Pins

6

Isolation Voltage

3kV dc

Input Ratio

1:6

Maximum Output Power

20W

Depth

19.4mm

Standards/Approvals

No

Length

76.2mm

Series

DTJ20

Width

31.4mm

Maximum Operating Temperature

100°C

Efficiency

88%

Minimum Operating Temperature

-40°C

The DTJ series of chassis mount DC-DC power supplies allows for easy and convenient integration into a variety of industrial and commercial applications. The DC-DC power solution is constructed using lightweight materials and includes features such as short circuit protection, input reverse polarity protection and soft start. The wide input range covers nominal voltages of 12V, 24V and 48V.

Regulated single & dual outputs from 3.3V to 48VDC

Wide 4:1 input range

Chassis mount with optional DIN rail clip

Remote On/Off & voltage trim function

3kVDC isolation

-40 °C to +100°C operating temperature

Full power to 80°C

3 year warranty
