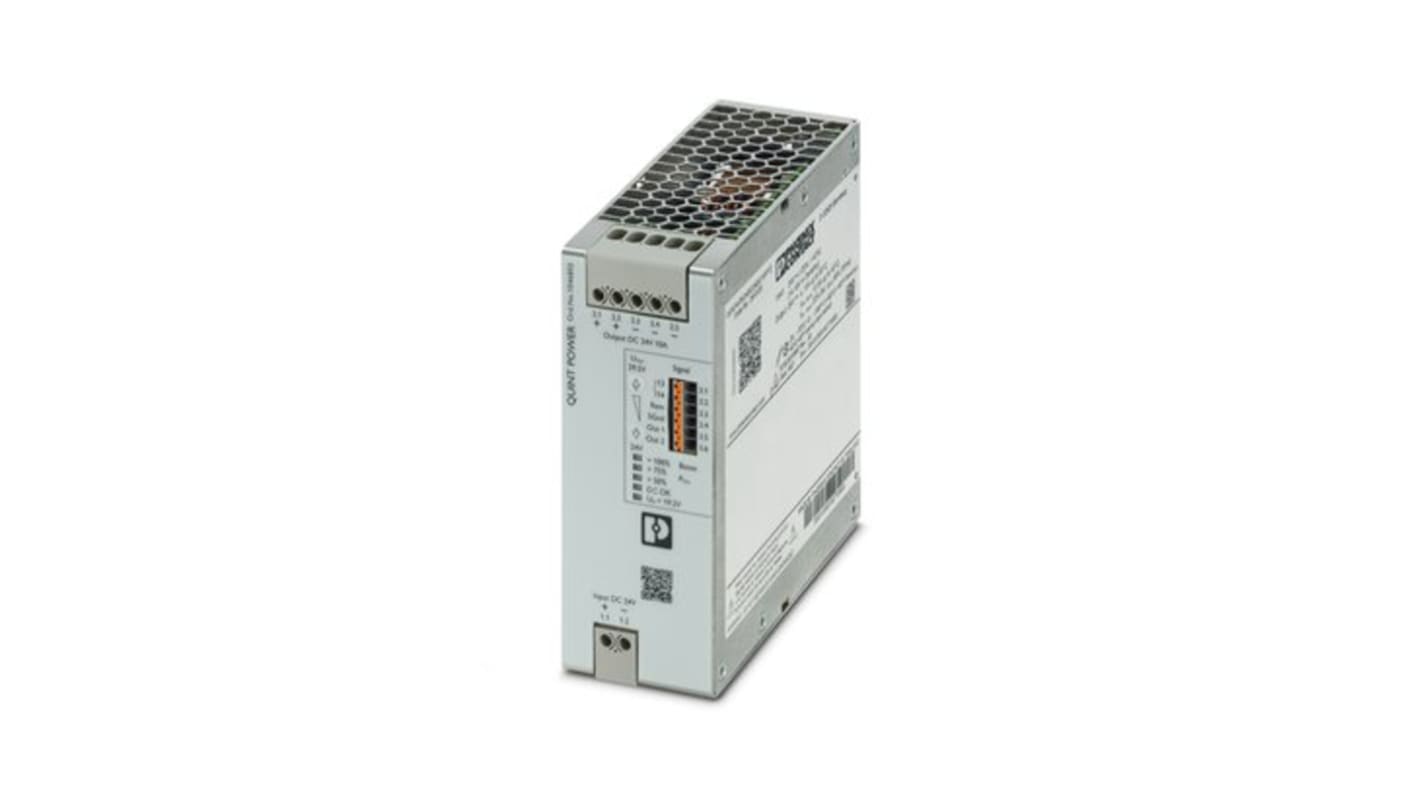

Phoenix Contact DC-DC Converter, 24V dc/ 10A Output, 18 → 30 V dc Input, 240W, DIN Rail Mount, +70°C Max Temp

View all DC-DC Converters
Bulk discount available

Subtotal (1 unit)*

£295.96

(exc. VAT)

£355.15

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£295.96
5 - 9£287.08
10 - 24£278.19
25 - 49£269.32
50 +£260.45

*price indicative

RS Stock No.:
192-6544
Distrelec Article No.:
301-44-735
Mfr. Part No.:
1046803
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Output Voltage

24V dc

Input Voltage Range

18 → 30 V dc

Power Rating

240W

Input Voltage Nominal

24 V dc

Output Current

10A

Mounting Type

DIN Rail Mount

Number of Outputs

1

Isolation Voltage

4V dc

Width

125mm

Depth

130mm

Length

50mm

Efficiency

0.933

Minimum Temperature

-25°C

Maximum Temperature

+70°C

COO (Country of Origin):
TH
Primary-switched QUINT DC/DC converter for DIN rail mounting with SFB (Selective Fuse Breaking) Technology, screw connection, input: 24 V DC, output: 24 V DC / 10 A
QUINT DC/DC converter with maximum functionality. DC/DC converters alter the voltage level, regenerate the voltage at the end of long cables or enable the creation of independent supply systems by means of electrical isolation. QUINT DC/DC converters magnetically and therefore quickly trip circuit breakers with six times the nominal current, for selective and therefore cost-effective system protection. The high level of system availability is additionally ensured, thanks to preventive function monitoring, as it reports critical operating states before errors occur.
