Cosel MGF DC/DC Converter, 12V dc/ 3.4 A, 76V dc Input, 18V Input 81.6 W, PCB, 85 °C Max Temp -40 °C Min Temp, 6-Pin DIP
- RS Stock No.:
- 191-9546
- Mfr. Part No.:
- MGFW804812
- Brand:
- Cosel

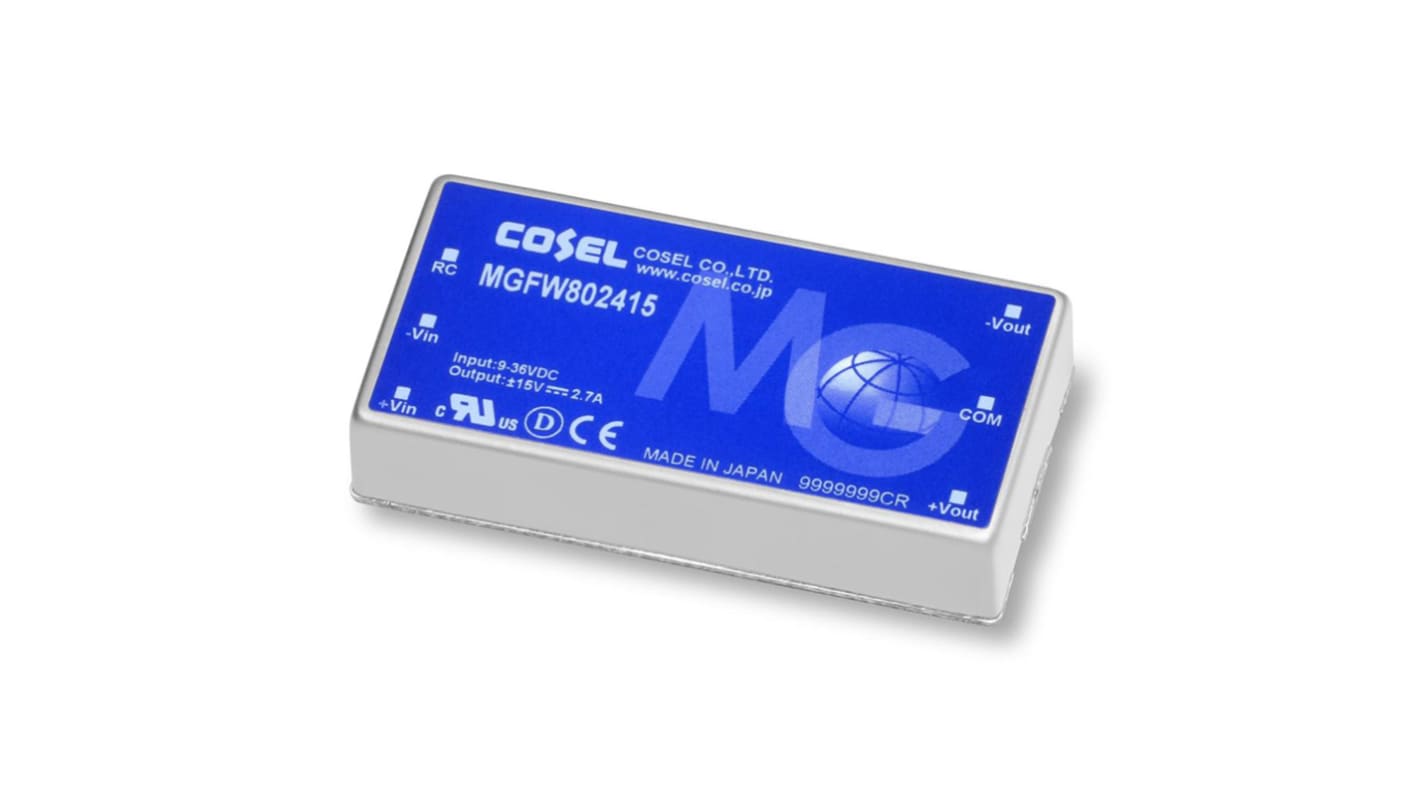

Image representative of range
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£72.67
(exc. VAT)
£87.20
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 30 unit(s) ready to ship
- Plus 2 unit(s) shipping from 24 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £72.67 |
| 5 - 9 | £70.66 |
| 10 - 24 | £68.98 |
| 25 - 49 | £67.53 |
| 50 + | £66.07 |
*price indicative
- RS Stock No.:
- 191-9546
- Mfr. Part No.:
- MGFW804812
- Brand:
- Cosel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cosel | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 12V dc | |
| Maximum Input Voltage | 76V dc | |
| Minimum Input Voltage | 18V | |
| Output Current 1 | 3.4A | |
| Output Current 2 | 3.4A | |
| Output Voltage 2 | -12V dc | |
| Mount Type | PCB | |
| Input Ratio | 4:1 | |
| Number of Outputs | 2 | |
| Ripple and Noise | 100mV Pk-Pk | |
| Isolation Voltage | 1.5kV dc | |
| Number of Pins | 6 | |
| Package Type | DIP | |
| Maximum Output Power | 81.6W | |
| Length | 25.4mm | |
| Depth | 9.9mm | |
| Series | MGF | |
| Standards/Approvals | No | |
| Weight | 50g | |
| Width | 50.8mm | |
| Maximum Operating Temperature | 85°C | |
| Minimum Operating Temperature | -40°C | |
| Efficiency | 94% | |
| Select all | ||
|---|---|---|
Brand Cosel | ||
Product Type DC/DC Converter | ||
Output Voltage 1 12V dc | ||
Maximum Input Voltage 76V dc | ||
Minimum Input Voltage 18V | ||
Output Current 1 3.4A | ||
Output Current 2 3.4A | ||
Output Voltage 2 -12V dc | ||
Mount Type PCB | ||
Input Ratio 4:1 | ||
Number of Outputs 2 | ||
Ripple and Noise 100mV Pk-Pk | ||
Isolation Voltage 1.5kV dc | ||
Number of Pins 6 | ||
Package Type DIP | ||
Maximum Output Power 81.6W | ||
Length 25.4mm | ||
Depth 9.9mm | ||
Series MGF | ||
Standards/Approvals No | ||
Weight 50g | ||
Width 50.8mm | ||
Maximum Operating Temperature 85°C | ||
Minimum Operating Temperature -40°C | ||
Efficiency 94% | ||
- COO (Country of Origin):
- JP
The Cosel high-performance DC-DC converter offers PCB mount capability with isolated, low-profile construction. Designed for various input voltage ranges, it efficiently delivers stable output power across diverse applications.
Remote ON/OFF feature enhances control over power management
Integrated overcurrent protection ensures reliability and safety under load
RoHS Regulations
