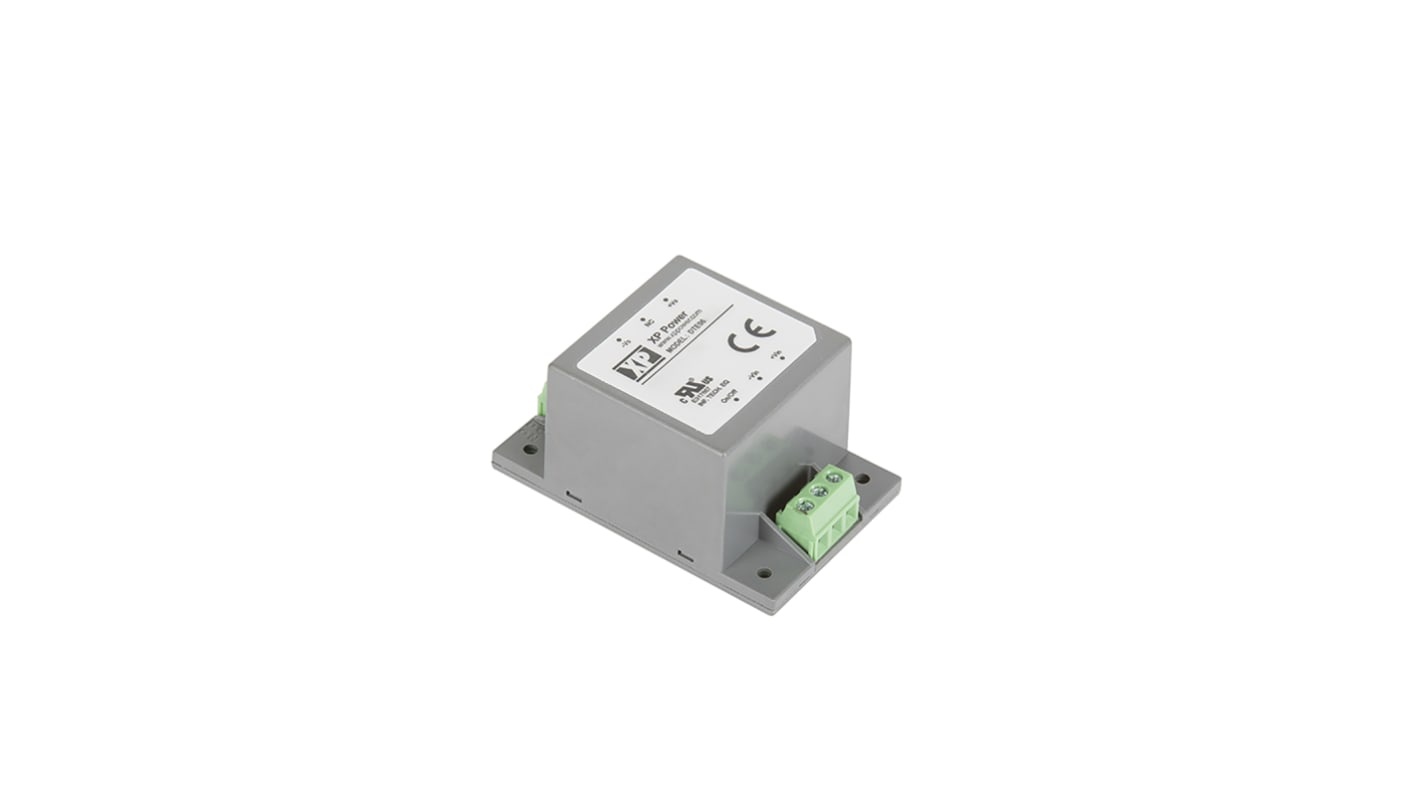

XP Power DTE06 DC-DC Converter, ±12V dc/ ±250mA Output, 9 → 36 V dc Input, 6W, Chassis Mount, +105°C Max Temp
- RS Stock No.:
- 191-7751
- Distrelec Article No.:
- 301-83-365
- Mfr. Part No.:
- DTE0624D12
- Brand:
- XP Power
Bulk discount available
Subtotal (1 unit)*
£45.13
(exc. VAT)
£54.16
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 14 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £45.13 |
| 5 - 9 | £43.79 |
| 10 - 24 | £42.44 |
| 25 - 49 | £41.08 |
| 50 + | £39.73 |
*price indicative
- RS Stock No.:
- 191-7751
- Distrelec Article No.:
- 301-83-365
- Mfr. Part No.:
- DTE0624D12
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Output Voltage | ±12V dc | |
| Input Voltage Range | 9 → 36 V dc | |
| Power Rating | 6W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | ±250mA | |
| Mounting Type | Chassis Mount | |
| Number of Outputs | 1 | |
| Package | Encapsulated | |
| Isolation Voltage | 3000 (Minimum)V dc | |
| Depth | 26.5mm | |
| Length | 53mm | |
| Width | 34mm | |
| Series | DTE06 | |
| Load Regulation | ±0.5 (Typ.)% | |
| Efficiency | 84% | |
| Maximum Temperature | +105°C | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand XP Power | ||
Output Voltage ±12V dc | ||
Input Voltage Range 9 → 36 V dc | ||
Power Rating 6W | ||
Input Voltage Nominal 24 V dc | ||
Output Current ±250mA | ||
Mounting Type Chassis Mount | ||
Number of Outputs 1 | ||
Package Encapsulated | ||
Isolation Voltage 3000 (Minimum)V dc | ||
Depth 26.5mm | ||
Length 53mm | ||
Width 34mm | ||
Series DTE06 | ||
Load Regulation ±0.5 (Typ.)% | ||
Efficiency 84% | ||
Maximum Temperature +105°C | ||
Minimum Temperature -40°C | ||
- COO (Country of Origin):
- TW
Regulated single & dual outputs from 5.1V to 48VDC
Wide 4:1 input range, nominal 12V, 24V, 48VDC
Fully encapsulated chassis mount
Optional DIN rail version
Remote on/off
3kVDC isolation
-40°C to +105°C operating temperature
Full power to 80°C
MTBF >4Mhrs
3 year warranty
Wide 4:1 input range, nominal 12V, 24V, 48VDC
Fully encapsulated chassis mount
Optional DIN rail version
Remote on/off
3kVDC isolation
-40°C to +105°C operating temperature
Full power to 80°C
MTBF >4Mhrs
3 year warranty
