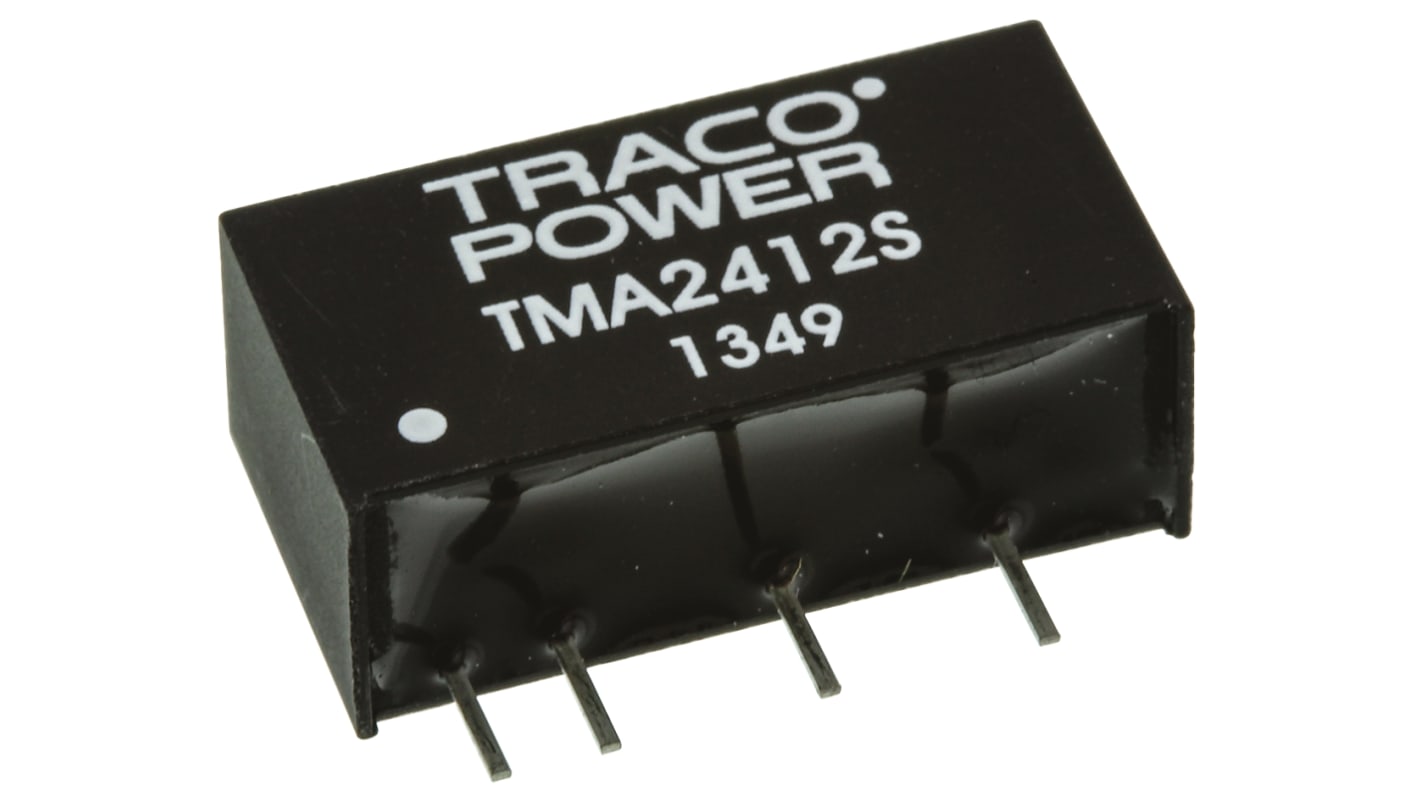

TRACOPOWER TMA DC-DC Converter, 12V dc/ 84mA Output, 21.6 → 26.4 V dc Input, 1W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 191-5032
- Mfr. Part No.:
- TMA 2412S
- Brand:
- TRACOPOWER
Save 14% when you buy 50 units
Subtotal (1 unit)*
£4.82
(exc. VAT)
£5.78
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
- Plus 25 unit(s) shipping from 07 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £4.82 |
| 5 - 9 | £4.67 |
| 10 - 24 | £4.52 |
| 25 - 49 | £4.34 |
| 50 + | £4.14 |
*price indicative
- RS Stock No.:
- 191-5032
- Mfr. Part No.:
- TMA 2412S
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 12V dc | |
| Input Voltage Range | 21.6 → 26.4 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | 84mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | SIP 7 | |
| Isolation Voltage | 1kV dc | |
| Length | 19.5mm | |
| Width | 7.1mm | |
| Depth | 10.2mm | |
| Railway Approved | No | |
| Series | TMA | |
| Load Regulation | ±10% | |
| Efficiency | 78% | |
| Medical Approved | No | |
| Maximum Temperature | +85°C | |
| Minimum Temperature | -40°C | |
| Standards Met | IEC/EN 62368-1 | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 12V dc | ||
Input Voltage Range 21.6 → 26.4 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 84mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SIP 7 | ||
Isolation Voltage 1kV dc | ||
Length 19.5mm | ||
Width 7.1mm | ||
Depth 10.2mm | ||
Railway Approved No | ||
Series TMA | ||
Load Regulation ±10% | ||
Efficiency 78% | ||
Medical Approved No | ||
Maximum Temperature +85°C | ||
Minimum Temperature -40°C | ||
Standards Met IEC/EN 62368-1 | ||
