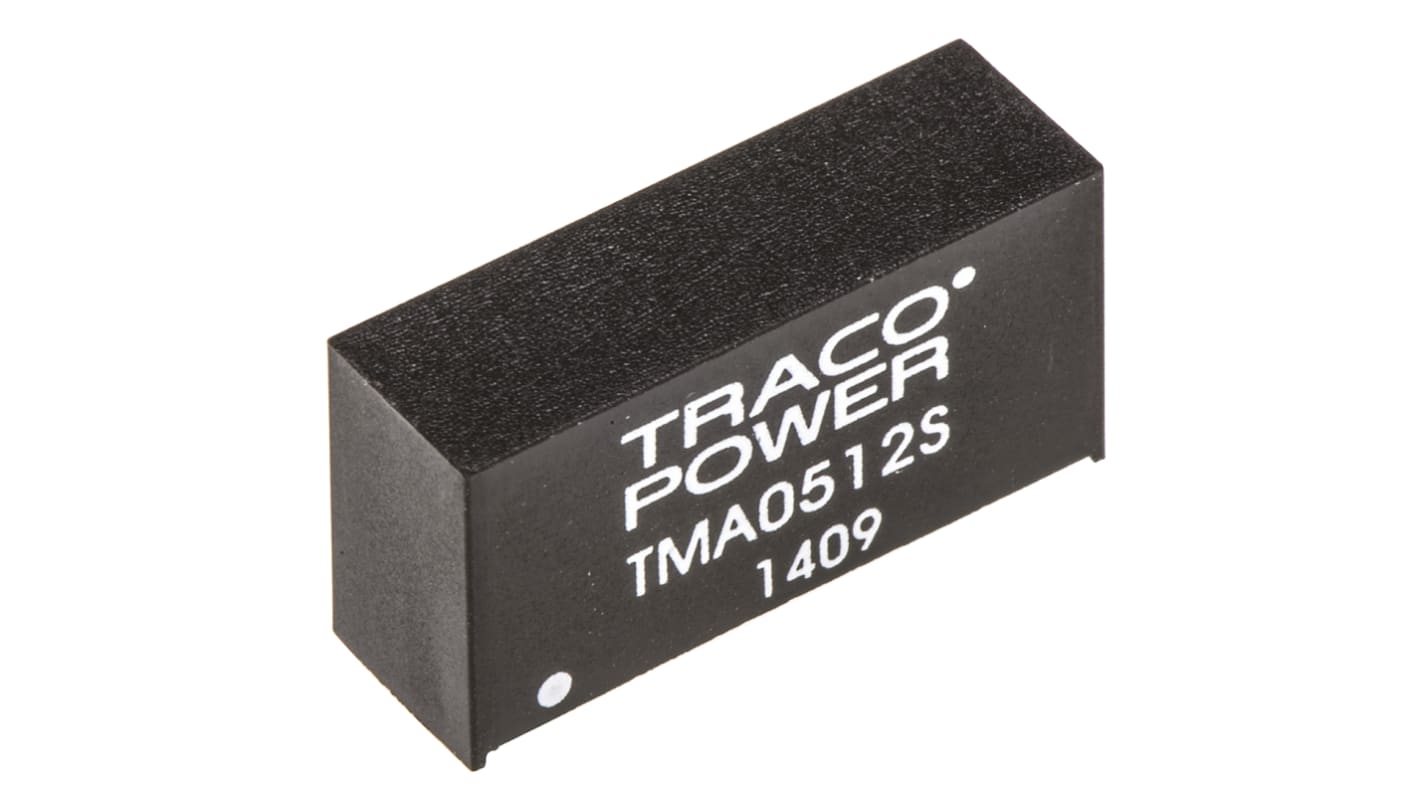

TRACOPOWER TMA DC-DC Converter, 12V dc/ 80mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 191-4944
- Mfr. Part No.:
- TMA 0512S
- Brand:
- TRACOPOWER
11 In stock - FREE next working day delivery available
15 available from Europe for delivery within 1 working day(s).
Added
Price Each
£4.29
(exc. VAT)
£5.15
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £4.29 |
| 5 - 9 | £4.16 |
| 10 - 24 | £4.03 |
| 25 - 49 | £3.86 |
| 50 + | £3.69 |
- RS Stock No.:
- 191-4944
- Mfr. Part No.:
- TMA 0512S
- Brand:
- TRACOPOWER
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Traco 1W SIP Single/Dual Output Unregulated Isolated DC-DC Converter - TMA Series
The Traco Power TMA series is a range of miniature isolated, 1 Watt, DC/DC converters in a SIP package. The SMD technology of these isolated converters makes it possible to offer a product with high performance at low cost. The TME DC-DC converters require only 1.2 cm2 board space and are the perfect solution for space critical applications for board level power distribution
Single-in-line (SIP) package
Single and dual output models
I/O isolation 1’000 VDC
High efficiency up to 81%
Operating temperature range –40°C to +85°C
Industry standard pinout
100% Burn-in (8 h)
Lead free design, RoHS compliant
Single and dual output models
I/O isolation 1’000 VDC
High efficiency up to 81%
Operating temperature range –40°C to +85°C
Industry standard pinout
100% Burn-in (8 h)
Lead free design, RoHS compliant
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 12V dc |
| Input Voltage Range | 4.5 → 5.5 V dc |
| Power Rating | 1W |
| Input Voltage Nominal | 5 V dc |
| Output Current | 80mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 1 |
| Package | SIP 6 |
| Isolation Voltage | 1kV dc |
| Depth | 10.2mm |
| Length | 19.5mm |
| Series | TMA |
| Load Regulation | ±10% |
| Efficiency | 78% |
| Minimum Temperature | -40°C |
| Maximum Temperature | +85°C |
