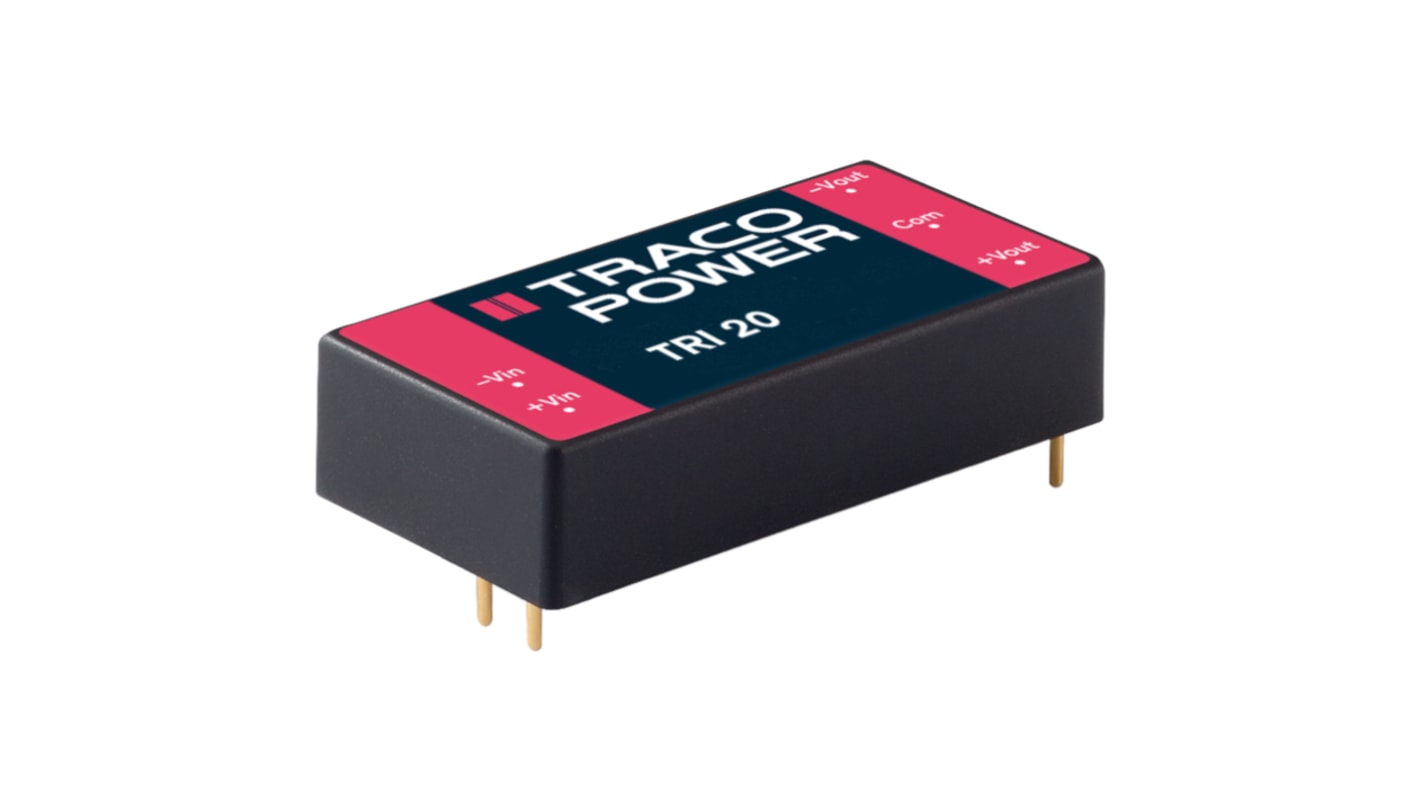

TRACOPOWER TRI 20 DC-DC Converter, 24V dc/ 840mA Output, 9 → 18 V dc Input, 20W, Through Hole, +76°C Max Temp
- RS Stock No.:
- 189-4990
- Mfr. Part No.:
- TRI 20-1215
- Brand:
- TRACOPOWER
Available to back order for despatch when stock is available
Added
Price 1 Tube of 10
£626.32
(exc. VAT)
£751.58
(inc. VAT)
| Tube(s) | Per Tube | Per unit* |
| 1 - 4 | £626.32 | £62.632 |
| 5 - 9 | £607.53 | £60.753 |
| 10 - 24 | £588.74 | £58.874 |
| 25 - 49 | £563.69 | £56.369 |
| 50 + | £538.64 | £53.864 |
| *price indicative | ||
- RS Stock No.:
- 189-4990
- Mfr. Part No.:
- TRI 20-1215
- Brand:
- TRACOPOWER
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Reinforced I/O-isolation 4200 VAC rated for 1000 VAC working voltage
Ultra-high isolation peak voltage 8000 VDC (1s)
Common Mode Transient Immunity (dv/dt) 15 kV/μs
Operating temperature range -40 to +76°C
Low no-load power consumption 240 – 480 mW
High efficiency up to 90%
2:1 input voltage range: 9-18, 18-36, 36-75 VDC
Protection against overload, overvoltage and short circuit
3-year product warranty
Ultra-high isolation peak voltage 8000 VDC (1s)
Common Mode Transient Immunity (dv/dt) 15 kV/μs
Operating temperature range -40 to +76°C
Low no-load power consumption 240 – 480 mW
High efficiency up to 90%
2:1 input voltage range: 9-18, 18-36, 36-75 VDC
Protection against overload, overvoltage and short circuit
3-year product warranty
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 24V dc |
| Input Voltage Range | 9 → 18 V dc |
| Power Rating | 20W |
| Input Voltage Nominal | 12 V dc |
| Output Current | 840mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 1 |
| Isolation Voltage | 5.94kV dc |
| Width | 25.4mm |
| Depth | 12mm |
| Length | 50.8mm |
| Series | TRI 20 |
| Load Regulation | 0.005 |
| Minimum Temperature | -40°C |
| Maximum Temperature | +76°C |
| Efficiency | 89% |
