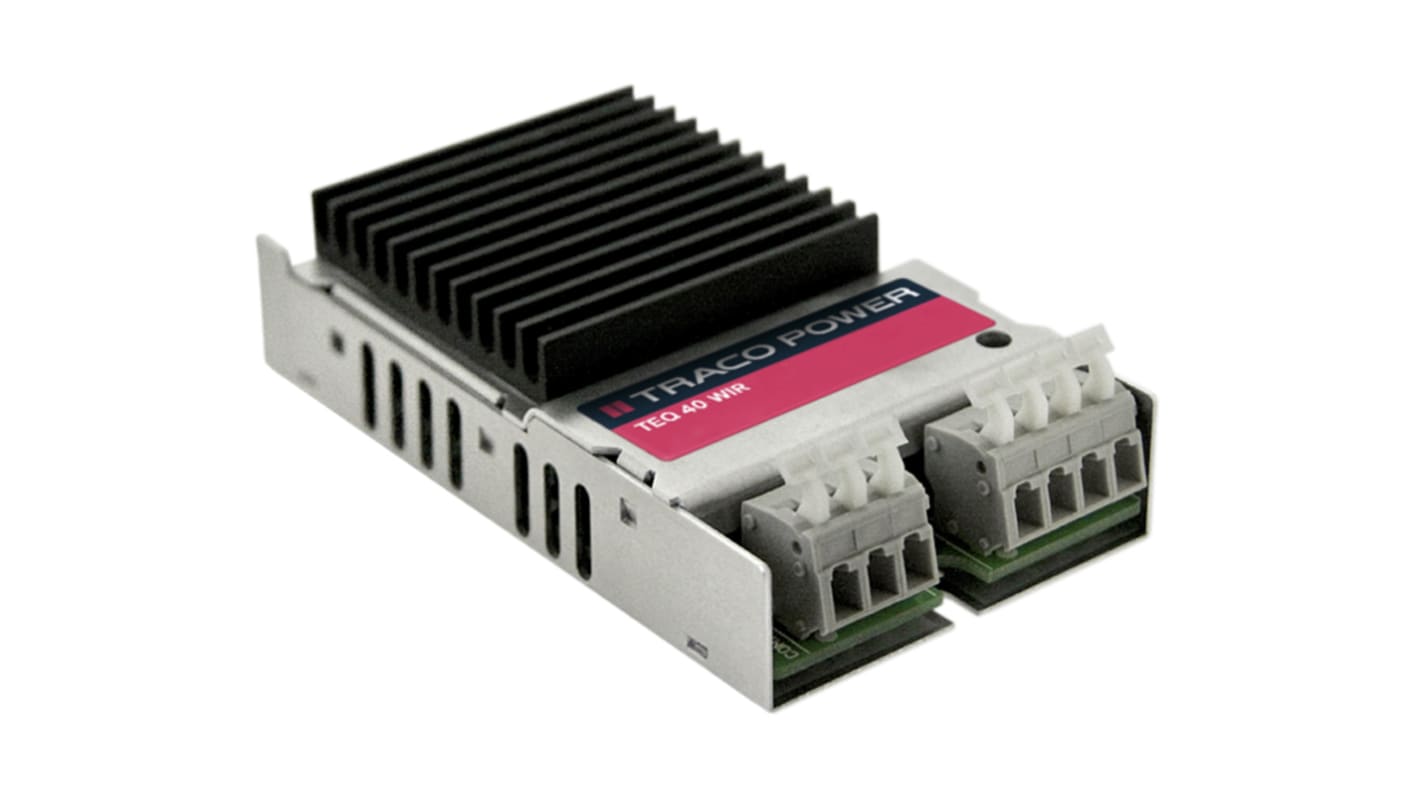

TRACOPOWER TEQ 40WIR DC-DC Converter, ±15V dc/ 1.33A Output, 9.5 → 36 V dc Input, 40W, Chassis Mount, +83°C Max
- RS Stock No.:
- 187-9478
- Mfr. Part No.:
- TEQ 40-2423WIR
- Brand:
- TRACOPOWER
6 In stock - FREE next working day delivery available
Added
Price Each
£144.33
(exc. VAT)
£173.20
(inc. VAT)
Units | Per unit |
1 - 4 | £144.33 |
5 - 9 | £140.00 |
10 - 24 | £135.67 |
25 - 49 | £129.90 |
50 + | £124.12 |
- RS Stock No.:
- 187-9478
- Mfr. Part No.:
- TEQ 40-2423WIR
- Brand:
- TRACOPOWER
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
The TEQ-40WIR Series is a family of isolated high performance railway dc-dc converter modules with ultra-wide 4:1 input voltage ranges which come in a rugged metal case. These converters are suitable for a wide range of applications,but the product is designed particularly also for industrial applications where often no PCB mounting is possible but the module has to be mounted on a chassis. A very high efficiency and the heatsink construction allows an operating temperature up to +83°C with natural convection cooling without power derating and up to +92ºC with power derating. Further features include under voltage lockout, over temperature protection and short circuit protection.
High power block with excellent thermal convection
Operating temperature -40°C to +92°
Ultra wide 4:1 input voltage range
Excellent efficiency up to 91%
I/O isolation up to 3000 VDC
Under voltage lock-out circuit
Protection against overvoltage, overtemperature and short circuit
Operating temperature -40°C to +92°
Ultra wide 4:1 input voltage range
Excellent efficiency up to 91%
I/O isolation up to 3000 VDC
Under voltage lock-out circuit
Protection against overvoltage, overtemperature and short circuit
Specifications
Attribute | Value |
---|---|
Output Voltage | ±15V dc |
Input Voltage Range | 9.5 → 36 V dc |
Power Rating | 40W |
Input Voltage Nominal | 24 V dc |
Output Current | 1.33A |
Mounting Type | Chassis Mount |
Number of Outputs | 2 |
Isolation Voltage | 1.6kV dc |
Depth | 26.1mm |
Width | 57.2mm |
Length | 103mm |
Railway Approved | Yes |
Series | TEQ 40WIR |
Load Regulation | 0.01 |
Maximum Temperature | +83 °C, +92°C |
Efficiency | 89% |
Minimum Temperature | -40°C |
