TRACOPOWER TEQ 20WIR DC/DC Converter, 15V dc/, 75V dc Input 667 mA, 18V Input, Chassis Mount, 93 °C Max Temp -40 °C Min
- RS Stock No.:
- 187-9473
- Distrelec Article No.:
- 301-48-848
- Mfr. Part No.:
- TEQ 20-4823WIR
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)*
£129.06
(exc. VAT)
£154.87
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 4 | £129.06 |
| 5 - 9 | £125.19 |
| 10 - 24 | £121.31 |
| 25 - 49 | £116.16 |
| 50 + | £110.99 |
*price indicative
- RS Stock No.:
- 187-9473
- Distrelec Article No.:
- 301-48-848
- Mfr. Part No.:
- TEQ 20-4823WIR
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage 1 | 15V dc | |
| Product Type | DC/DC Converter | |
| Minimum Input Voltage | 18V | |
| Maximum Input Voltage | 75V dc | |
| Output Current 1 | 667mA | |
| Output Current 2 | 667mA | |
| Mount Type | Chassis Mount | |
| Output Voltage 2 | -15V dc | |
| MTBF | 1600000h | |
| Number of Outputs | 2 | |
| Input Ratio | 1:6 | |
| Isolation Voltage | 2.25kV dc | |
| Number of Pins | 7 | |
| Maximum Output Power | 20W | |
| Standards/Approvals | No | |
| Width | 57.2mm | |
| Length | 103mm | |
| Depth | 26.1mm | |
| Series | TEQ 20WIR | |
| Maximum Operating Temperature | 93°C | |
| Efficiency | 88% | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 1 15V dc | ||
Product Type DC/DC Converter | ||
Minimum Input Voltage 18V | ||
Maximum Input Voltage 75V dc | ||
Output Current 1 667mA | ||
Output Current 2 667mA | ||
Mount Type Chassis Mount | ||
Output Voltage 2 -15V dc | ||
MTBF 1600000h | ||
Number of Outputs 2 | ||
Input Ratio 1:6 | ||
Isolation Voltage 2.25kV dc | ||
Number of Pins 7 | ||
Maximum Output Power 20W | ||
Standards/Approvals No | ||
Width 57.2mm | ||
Length 103mm | ||
Depth 26.1mm | ||
Series TEQ 20WIR | ||
Maximum Operating Temperature 93°C | ||
Efficiency 88% | ||
Minimum Operating Temperature -40°C | ||

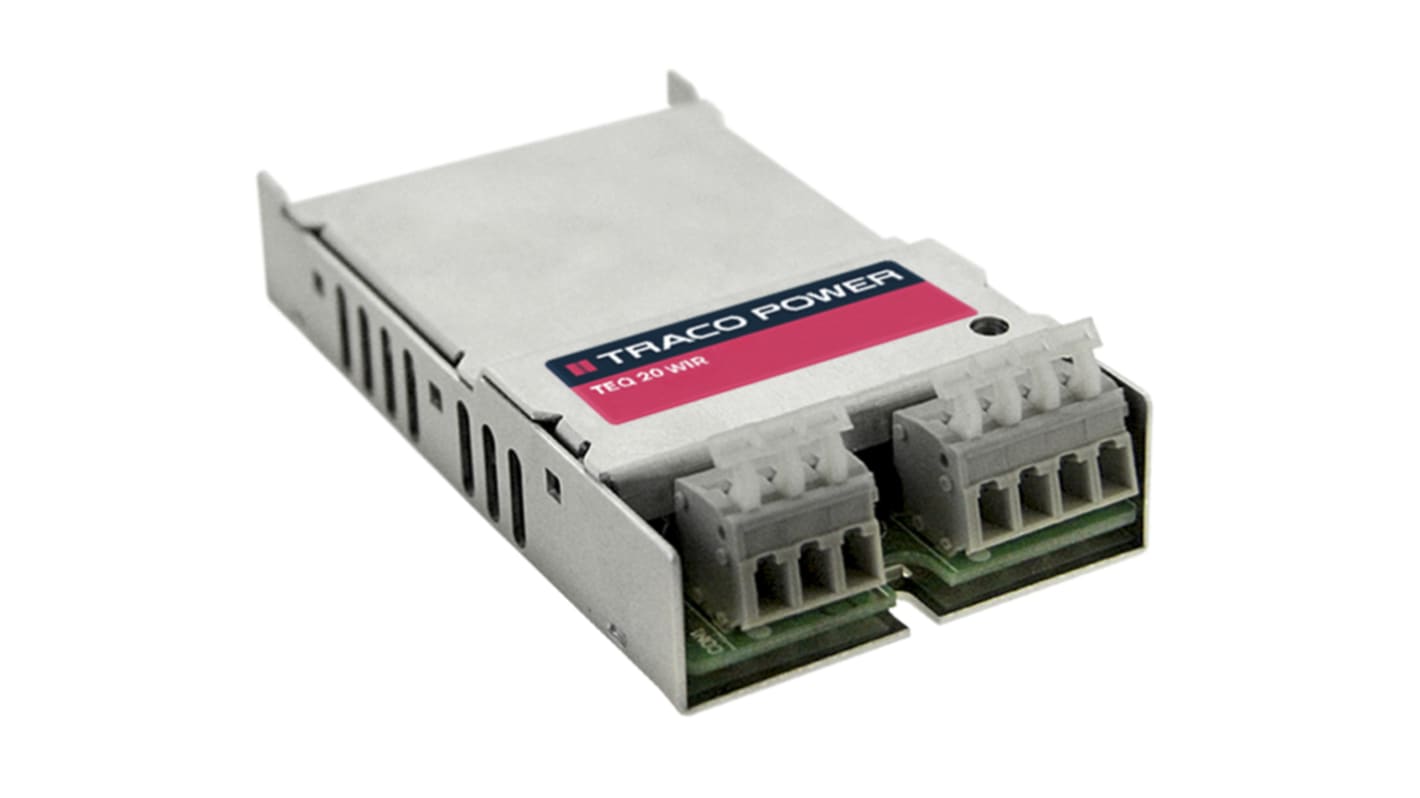

The TEQ-20WIR Series is a family of isolated high performance railway dc-dc converter modules with ultra-wide 4:1 input voltage ranges which come in a rugged metal case. These converters are suitable for a wide range of applications, but the product is designed particularly also for industrial applications where often no PCB mounting is possible but the module has to be mounted on a chassis. A very high efficiency and the heatsink construction allows an operating temperature up to +83°C with natural convection cooling without power derating and up to +93ºC with power derating. Further features include under voltage lockout, over temperature protection and short circuit protection.
High power block with excellent thermal convection
Operating temperature -40°C to +93°
Ultra wide 4:1 input voltage range
Excellent efficiency up to 88%
Excellent efficiency up to 88%
I/O isolation up to 3000 VDC
Under voltage lock-out circuit
Protection against overvoltage, overtemperature and short circuit
