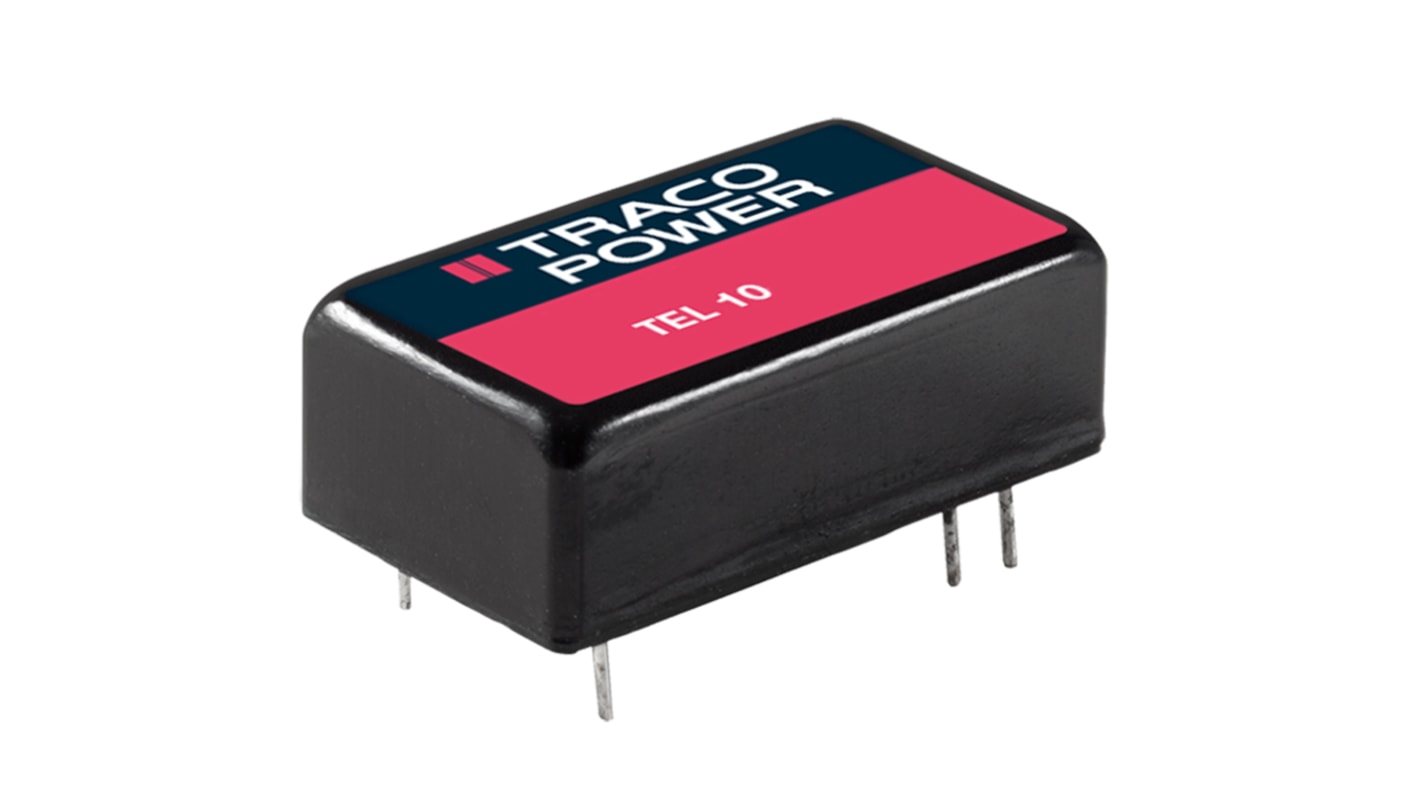

TRACOPOWER TEL 10 DC-DC Converter, 12V dc/ 833mA Output, 18 → 36 V dc Input, 10W, Through Hole, +88°C Max Temp
- RS Stock No.:
- 187-5050
- Mfr. Part No.:
- TEL 10-2412
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£225.00
(exc. VAT)
£270.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 - 4 | £225.00 | £22.50 |
5 - 9 | £218.26 | £21.826 |
10 - 24 | £211.50 | £21.15 |
25 - 49 | £202.51 | £20.251 |
50 + | £193.51 | £19.351 |
*price indicative
- RS Stock No.:
- 187-5050
- Mfr. Part No.:
- TEL 10-2412
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TRACOPOWER | |
Output Voltage | 12V dc | |
Input Voltage Range | 18 → 36 V dc | |
Power Rating | 10W | |
Input Voltage Nominal | 24 V dc | |
Output Current | 833mA | |
Mounting Type | Through Hole | |
Isolated | Yes | |
Number of Outputs | 1 | |
Package | DIP 16 | |
Isolation Voltage | 1kV dc | |
Length | 23.8mm | |
Depth | 8mm | |
Width | 13.7mm | |
Series | TEL 10 | |
Railway Approved | No | |
Load Regulation | 0.01 | |
Minimum Temperature | -40°C | |
Maximum Temperature | +88°C | |
Standards Met | IEC/EN 62368-1 | |
Efficiency | 87% | |
Medical Approved | No | |
Select all | ||
---|---|---|
Brand TRACOPOWER | ||
Output Voltage 12V dc | ||
Input Voltage Range 18 → 36 V dc | ||
Power Rating 10W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 833mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package DIP 16 | ||
Isolation Voltage 1kV dc | ||
Length 23.8mm | ||
Depth 8mm | ||
Width 13.7mm | ||
Series TEL 10 | ||
Railway Approved No | ||
Load Regulation 0.01 | ||
Minimum Temperature -40°C | ||
Maximum Temperature +88°C | ||
Standards Met IEC/EN 62368-1 | ||
Efficiency 87% | ||
Medical Approved No | ||
- COO (Country of Origin):
- TW
TRACOPOWER TEL 10 Series DC-DC Converter, 18 to 36V DC Input Voltage Range, 10W Power Rating - TEL 10-2412
The TEL 10 series DC-DC converter offers a compact and efficient solution for low-power applications. It has dimensions of 23.8mm in length, 13.7mm in width, and a height of just 8mm. Operating within an input voltage range of 18 to 36 V DC, it delivers a stable output voltage of 12V DC, with an output current of 833 mA and a power rating of 10W, ensuring consistent performance across various applications.
Features & Benefits
• Compact DIP 16 package for efficient space use
• Isolated design enhances operational safety
• High efficiency of 87% minimises energy waste
• Robust temperature range suitable for harsh environments
• Integrated input filter complies with emission standards
• Isolated design enhances operational safety
• High efficiency of 87% minimises energy waste
• Robust temperature range suitable for harsh environments
• Integrated input filter complies with emission standards
Applications
• Ideal for instrumentation projects where space is limited
• Utilised in IT equipment requiring efficient power conversion
• Functions as a power supply in automation systems
• Compatible with various electronic device circuits
• Utilised in IT equipment requiring efficient power conversion
• Functions as a power supply in automation systems
• Compatible with various electronic device circuits
Can it operate in extreme temperatures?
Yes, it functions between -40°C and +85°C.
Will it maintain output voltage under varying loads?
Yes, it has excellent load regulation of 0.01.
Is it suitable for sensitive electronic applications?
It complies with IEC/EN 62368-1 standards for safety.
