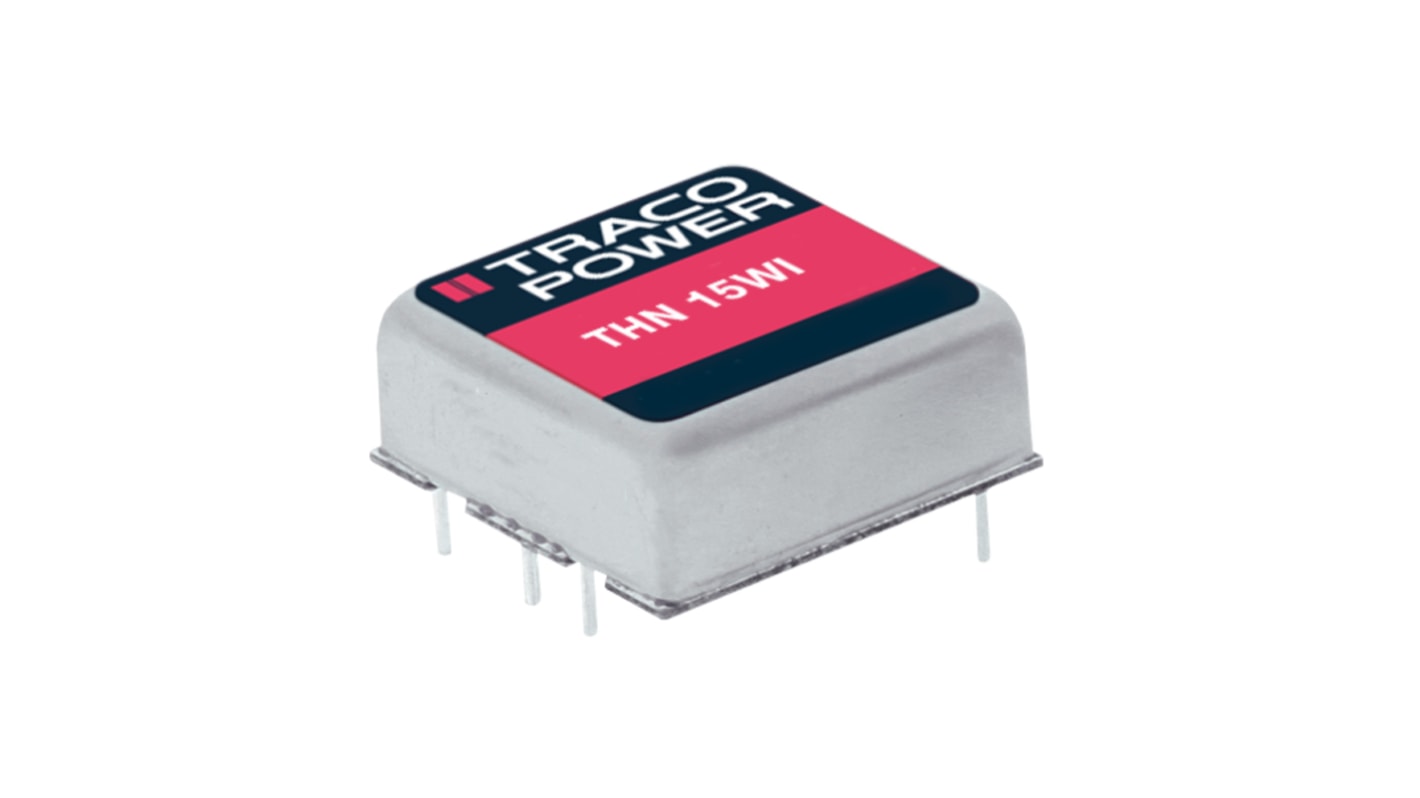

TRACOPOWER THN 15WI DC-DC Converter, 48V dc/ ±315mA Output, 9 → 36 V dc Input, 15W, Through Hole, +85°C Max Temp

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 10 units)*

£384.46

(exc. VAT)

£461.35

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 1 unit(s) shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s)
Per Tube
Per unit*
1 - 4£384.46£38.446
5 - 9£372.91£37.291
10 - 24£361.39£36.139
25 - 49£346.01£34.601
50 +£330.63£33.063

*price indicative

RS Stock No.:
183-0648
Mfr. Part No.:
THN 15-2425WI
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Output Voltage

48 V dc, ±24V dc

Input Voltage Range

9 → 36 V dc

Power Rating

15W

Input Voltage Nominal

24 V dc

Output Current

±315mA

Mounting Type

Through Hole

Isolated

Yes

Number of Outputs

2

Package

1 x 1 in

Isolation Voltage

1.6kV dc

Length

25.4mm

Depth

9.9mm

Width

25.4mm

Series

THN 15WI

Load Regulation

1 (Balanced Load) %, 5 (Unbalanced Load) %

Standards Met

EN 55032, EN 60950-1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, IEC 60950-1, UL 94V-0, UL/cUL 60950-1

Efficiency

91%

Minimum Temperature

-40°C

Maximum Temperature

+85°C

COO (Country of Origin):
TW
The THN-15WI series is the latest generation of high performance dc-dc converter modules setting new standards concerning power density. This product with 15W comes in a encapsulated, shielded metal package with dimensions of only 1.0”x 1.0”x 0.4” and occupies 50% (!) less board space. All models have ultra wide 4:1 input voltage range and precisely regulated output voltages. Advanced circuit design provides high efficiency up to 87% which allows a operating temperature range of –40°C to +85°C (with derating) Further features include remote On/Off and trimmable output. Typical applications for these converters are battery operated equipment, mobile instrumentation, distributed power architectures in communication and industrial electronics and everywhere where space on PCB is critical.

Smallest encapsulated 15W Converter! Ultra compact size: 1.0” x 1.0” x 0.4”
Shielded metal case with isolated baseplate
Ultrawide 4:1 input ranges 9-36 VDC or 18-75VDC
Output voltage Trim
I/O isolation voltage 1500 VDC
Very high efficiency up to 87%
Operating temp. range : –40°C to +85°C
Remote On/Off control
